A partitioned material point method and discrete element method coupling scheme

Abstract

Mass-movement hazards involving fast and large soil deformation often include huge rocks or other significant obstacles increasing tremendously the risks for humans and infrastructures. Therefore, numerical investigations of such disasters are in high economic demand for prediction as well as for the design of countermeasures. Unfortunately, classical numerical approaches are not suitable for such challenging multiphysics problems. For this reason, in this work we explore the combination of the Material Point Method, able to simulate elasto-plastic continuum materials and the Discrete Element Method to accurately calculate the contact forces, in a coupled formulation. We propose a partitioned MPM-DEM coupling scheme, thus the solvers involved are treated as black-box solvers, whereas the communication of the involved sub-systems is shifted to the shared interface. This approach allows to freely choose the best suited solver for each model and to combine the advantages of both physics in a generalized manner. The examples validate the novel coupling scheme and show its applicability for the simulation of large strain flow events interacting with obstacles.

Introduction

Mass-movement hazards involving fast and large soil deformation have increased significantly during the past decades due to climate change and global warming. Those phenomena like debris flow, avalanches and mudflow can cause extensive damage to landscapes and infrastructures. Even more devastating are those phenomena, which carry huge rocks or other significant obstacles, causing high economic loss and often human casualties. Therefore, further assessment on the evolution and effects of such disasters as well as the definition of predictive tools and of countermeasures are in high demand. One of the critical issues for further understanding of such phenomena, as well as the prerequisite for the construction of countermeasures, are numerical simulations.

For the simulation of those large strain flow events, which include topology changes of the material, standard discretization techniques such as the Finite Element Method (FEM) are likely to suffer from mesh entanglement and distortion requiring expensive remeshing schemes, which on the one hand increases the computational time significantly and on the other hand reduces the accuracy. Therefore, continuum-based particle methods, such as the Smoothed Particle Hydrodynamics (SPH) [1] successfully applied to a broad range of geomechanical applications [2], Element-free Galerkin Method [3], Particle Finite Element Method (PFEM) [4] and the Material Point Method (MPM) [5, 6] are the natural choice for the simulation of large deformation solid dynamics problems.

As MPM is a mixture between mesh-based methods and mesh-less methods, it combines many advantages. It eliminates issues like mesh entanglement and remeshing inherent in mesh-based methods or time-consuming neighbor search algorithms, stability issues, and the definition of kernel functions appearing commonly in mesh-less methods. Using a dual discretization, the material domain in MPM is, on one hand discretized by Lagrangian moving particles, also called material points, which carry the history-dependent variables during the calculation. On the other hand, a computational background grid is introduced to approximate continuous fields and their gradients, which is usually defined in an Eulerian fashion, as it is reset after each time step.

MPM has been successfully applied to a variety of problems just mentioning hyper-velocity impact [7, 8], explosions [9], failure [10], snow avalanches [11, 12], and multi-phase geomechanical problems [13,14,15] and also some extensions where introduced such as the Generalized Interpolation Material Point (GIMP) method [16], the Convected Particle Domain Interpolation (CPDI) [17, 18] or the PQMPM [19]. Further applications of the MPM including a detailed introduction into the theory can be found in the books published by Zhang et al. [20] and Fern et al. [21].

Due to the dual discretization, the computational background grid on one hand and the material points on the other hand, MPM naturally deals with the simulation of multi-material, as different constitutive laws can be assigned to the material points and the mutual interaction is solved via the background grid. However, in case of substantial stiffness differences between adjacent material points, which is a general case for the simulation of mass-movement hazards interacting with huge rocks or other significant obstacles, this approach suffers from significant loss of accuracy and, more importantly, this approach leads to a sticking and therefore unphysical contact behaviour without the consideration of expensive contact detection algorithms.

Inspired by many multiphysics simulations, just mentioning the fluid–structure Interaction (FSI) [22,23,24] and Soil-Structure Interaction (SSI) [25,26,27] problems, it is the most efficient and accurate way to model each material in its preferred reference frame and shift the communication between the sub-problems to their shared interface. Therefore, to describe the movement of the obstacles as well as the interaction among themselves and the continuous flow, the Discrete Element Method (DEM) [28, 29] is the best-suited method, as it efficiently describes the Newtonian movement of discrete bodies and, even more critical provides optimized contact detection. In the past, this method has been applied successfully in a multiphysics context, mentioning the coupling with FEM in a monolithic or partitioned approach [30,31,32,33,34], the coupling with particle-based methods [35] as well as monolithic coupling approaches with MPM for the simulation of granular material interacting with discrete objects [36, 37].

Liu et al. [36] modeled a 2D collapsing sand-pile impacting three wooden blocks using a monolithic MPM-DEM coupling scheme. For the contact detection between the granular flow, modeled by MPM, and the discrete wooden blocks, represented by DEM, nine additional material points for the representation of each discrete block are introduced so that the contact can be detected through the nodes of the computational background grid. The resulting acceleration at the grid nodes arising from the interaction is projected to the nodes of the discrete element working as body forces, whereas the contact between the blocks is detected using a shrunken point method. The proposed scheme is enhanced by Jiang et al. [37] using a spheropolygon DEM (SDEM) [38] which is coupled with MPM by exchanging contact forces. As the contact detection and force evaluation is unified under the scheme of SDEM, the dependency on the computational background grid is reduced significantly compared to the previous approach, and the influence of different particle shapes can be better preserved. During the calculation, MPM particles which are in the Verlet distance, which is the cut-off distance of the potential contact between two discrete elements, are treated as small SDEM disk particles with a certain radius for contact detection resulting in DEM contact forces, which are applied in the form of an additional boundary force term to the material points.

In this article, we propose a novel partitioned MPM and DEM coupling scheme, which allows us to use the best-suited solution strategy for each sub-problem, whereas the interaction is shifted to the shared interface leading to an exchange of data. Therefore the user is not restricted to a code that includes both participants, and even more important, no special treatment as transforming material points to DEM particles [37] or introducing additional material points at the outline of DEM particles [36] for the contact detection have to be considered. Instead, it is possible to couple any existing DEM and MPM software by creating a suitable interface, leading to an efficient and robust partitioned coupling scheme. For this work the open-source multiphysics software KRATOS [39,40,41] has been used, which is written in C++ and offers a Python interface.

This paper presents the basic theory, introducing the used notation of MPM and DEM in “Material point method (MPM)” and “Discrete element method (DEM)” sections, respectively. Then, in “Partitioned weak MPM-DEM coupling scheme” section, the partitioned coupling scheme of DEM and MPM is presented and finally validated in “Examples and validation” section. Several examples are conducted, starting with a beam impacted by a DEM sphere, which can be solved analytically, and therefore the numerical results of this example constitutes the validation and verification of the proposed coupling scheme. This example is calculated in two- as well as three dimensional case. Additionally by enlarging the beam, a multiple impact scenario can be created and the results can be compared to the literature. Finally, to show the applicability for mass-movement hazards, the numerical results are compared to the experiment conducted by Liu et al. [36] as well as to reference solutions [36, 37] from literature.

Material point method (MPM)

Governing equations

In a Lagrangian kinematic description of a continuum body \({\mathcal {B}}\), which occupies a domain \(\Omega \) in a three-dimensional space \({\mathcal {E}}\) the conservation of mass

$$\begin{aligned} \frac{d\rho }{dt}+\rho \nabla \cdot \dot{{{\textbf {u}}}} = 0 \qquad \text {in } \quad \Omega , \end{aligned}$$
(1)

and linear momentum

$$\begin{aligned} \rho \ddot{{{\textbf {u}}}}=\nabla \cdot \varvec{\sigma } +\rho {{\textbf {b}}} \qquad \text {in }\quad \Omega , \end{aligned}$$
(2)

needs to be satisfied, assuming isothermal settings. In these equations, \(\rho \) represents the mass density, \({{\textbf {b}}}\) the volume acceleration and \(\varvec{\sigma }\) is the symmetric Cauchy stress tensor. The first and second material derivatives of the displacement \({{\textbf {u}}}\) are the velocity and the acceleration, respectively.

The problem (1)–(2) is fully defined with the boundary conditions

$$\begin{aligned} {{\textbf {u}}}= & {} \overline{{{\textbf {u}}}} \qquad \Gamma _D, \end{aligned}$$
(3)
$$\begin{aligned} \varvec{\sigma } \cdot {{\textbf {n}}}= & {} \overline{{{\textbf {p}}}} \qquad \Gamma _N, \end{aligned}$$
(4)

where \(\overline{{{\textbf {u}}}}\) is a prescribed displacement on the Dirichlet boundary \(\Gamma _D\) and \(\overline{{{\textbf {p}}}}\) is a traction vector on the Neumann boundary \(\Gamma _N\) with normal \({\mathbf {n}}\).

Multiplying the momentum Eq. (2) with a virtual displacement field \(\delta {\mathbf {u}}\) and integrating over the domain \(\Omega \subset {\mathcal {E}}\) leads to the weak form of the balance equation:

$$\begin{aligned} \delta W =\int _{\Omega } \varvec{\sigma } : \delta {\mathbf {e}} \text {d} \Omega - \int _{\Omega }\rho {{\textbf {b}}}\cdot \delta {{\textbf {u}}} \text {d}\Omega -\int _{\Gamma _{N}}\overline{{{\textbf {p}}}}\cdot \delta {{\textbf {u}}} \text {d} \Gamma _{N} +\int _{\Omega }\rho \ddot{{{\textbf {u}}}}\cdot \delta {{\textbf {u}}} \text {d}\Omega = 0 \end{aligned}$$
(5)

with the virtual strain \(\delta {\mathbf {e}}\) arising from the virtual displacement field \(\delta {\mathbf {u}}\). Thus Eq. (5) can be expressed as a variation w.r.t. \(\delta {{\textbf {u}}}\) as

$$\begin{aligned} \delta W = \frac{\partial W}{\partial {{\textbf {u}}}} \cdot \delta {{\textbf {u}}}=0. \end{aligned}$$
(6)

Considering geometric and material nonlinearities, a linearization of the weak form is necessary, and thus the Newton-Raphson method is used to approximate the solution iteratively.

Discretization in time and space

In MPM, the body \({\mathcal {B}}\) is discretized (indicated by superscript h) into a finite number \(n_p\) of Lagrangian moving particles, also called material points:

$$\begin{aligned} {\mathcal {B}}\approx {\mathcal {B}}^h=\bigcup \limits _{p=1}^{n_{p}}\Omega _p. \end{aligned}$$
(7)

Those particles, assigned a constant mass \(m_p\), represent a finite volume of the body \(\Omega _p\), and they carry the history-dependent variables and the material information during the calculation process.

Additionally a fixed background grid is introduced to approximate the continuous fields and their respective gradients by locally defined basis functions \(N_I\) and discrete quantities at the respective nodes I of the corresponding background element. Therefore Eq. (6) is rewritten in its discretized version:

$$\begin{aligned} \delta W = \frac{\partial W}{\partial {{\textbf {u}}}^h} \cdot \delta {{\textbf {u}}}^h= -{{\textbf {R}}}\cdot \delta {{\textbf {u}}}^h = 0. \end{aligned}$$
(8)

where \({{\textbf {R}}}\) represents the residual force vector which has to vanish, since the virtual displacements are arbitrary. The linearization of this non-linear equation leads to the discretized solution system

$$\begin{aligned} {{\textbf {R}}}+\frac{\partial {{\textbf {R}}}}{\partial {{\textbf {u}}}^h}\Delta {{\textbf {u}}}^h = {{\textbf {R}}} + {{\textbf {K}}} \Delta {{\textbf {u}}}^h = 0, \end{aligned}$$
(9)

where \({{\textbf {K}}}\) is the tangential stiffness matrix and \(\Delta {{\textbf {u}}}^h\) the incremental displacement for which the system is solved. The entries of the tangential stiffness matrix, related to the nodes I and J of the background grid element, as well as the residual force vector components, related to the respective background grid node I, can be obtained by:

$$\begin{aligned} {{\textbf {K}}}_{IJ}= & {} \bigcup _{p=1}^{n_p} \left( (\nabla _x N_I)^T \varvec{\sigma } (\nabla _x N_J) + {{\textbf {B}}}_I^T {{\textbf {D}}} {{\textbf {B}}}_J + N_I \rho \alpha N_J {{\textbf {I}}} \right) \Omega _p \,\qquad , \end{aligned}$$
(10)
$$\begin{aligned} {{\textbf {R}}}_{I}= & {} \bigcup _{p=1}^{n_p} \left( {{\textbf {B}}}_I \varvec{\sigma } - \rho {{\textbf {b}}}N_I + \sum _{J=1}^{n_n} N_I \rho N_J \ddot{{{\textbf {u}}}}_J \right) \Omega _p - \int _{\Gamma _N}N_I \overline{{{\textbf {p}}}} \text {d}\Gamma _N, \, \end{aligned}$$
(11)

where \({{\textbf {D}}}\) is the constitutive matrix, \({{\textbf {B}}}_I\) the deformation matrix related to each node I in the element and \(\nabla _x\) denotes the spatial gradient at the current configuration. The operator \(\bigcup \) specifies the assembly procedure that takes into account the kinematic compatibility, while the factor \(\alpha \) in Eq. (10) is defined by the integration scheme which is defined by \(\alpha = 1/(0.25\Delta t^2)\) applying an implicit Newmark time integration scheme. Notice, that the traction surface integral in Eq. (11) is kept in the weak form, as the boundary discretization is discussed in “Boundary conditions in MPM”.

Fig. 1
figure 1

General workflow of MPM: (I) Initialization phase, (II) Lagrangian phase and (III) Convective phase

Due to this dual description of material points and computational background grid, data from the material points (marked with underscore p in the equations) has to be extrapolated to the nodes of the computational background grid (marked with underscore I in the equations) and vice versa, resulting in the three phases of a MPM calculation, also illustrated in Fig. 1:

  1. I

    Initialization phase: At the beginning of each time step n, a search is performed to determine the current element with the corresponding nodes of the background grid where each material point is located. This relationship between the material point and the background grid element is called connectivity and defines the necessary basis function values \(N_I({{\textbf {x}}}_p^n)\), where \({{\textbf {x}}}_p^n\) is the material point position at time step n. The kinematic variables \(\dot{{{\textbf {u}}}}_p\) and \(\ddot{{{\textbf {u}}}}_p\) are mapped via mass projection to the corresponding nodes as initial conditions:

    • Calculate nodal mass: \(m_I^n=\sum _{p=1}^{n_p}N_I({{\textbf {x}}}_p^n)m_p\)

    • Calculate nodal momentum: \({{\textbf {q}}}_I^n=\sum _{p=1}^{n_p}m_p \dot{{{\textbf {u}}}}_p^n N_I({{\textbf {x}}}_p^n)\)

    • Calculate nodal force: \({{\textbf {f}}}_I^n=\sum _{p=1}^{n_p}m_p \ddot{{{\textbf {u}}}}_p^n N_I({{\textbf {x}}}_p^n)\)

    • Calculate nodal velocity: \(\dot{{{\textbf {u}}}}_I={{\textbf {q}}}_I^n/m_I^n\)

    • Calculate nodal acceleration: \(\ddot{{{\textbf {u}}}}_I^n={{\textbf {f}}}_I^n/m_I^n\)

  2. II

    Lagrangian phase: Solution of the discretized governing equations, resulting in a deformation of the background grid. This step is similar to an Updated Lagrangian FEM step, therefore the reader is referred to [42] or [43,44,45] for a detailed description.

  3. III

    Convective phase: Solutions obtained at the nodes are interpolated back to the material points, resulting in an update of the material point’s position, and the background grid is reset to its initial position.

    • Material point displacement: \({{\textbf {u}}}_p^{n+1}=\sum _{I=1}^{n_n}N_I({{\textbf {x}}}_p^{n}) {{\textbf {u}}}_I^{n+1}\)

    • Material point acceleration: \(\ddot{{{\textbf {u}}}}_p^{n+1}=\sum _{I=1}^{n_n}N_I({{\textbf {x}}}_p^{n}) \ddot{{{\textbf {u}}}}_I^{n+1}\)

    • Material point velocity: \(\dot{{{\textbf {u}}}}_p^{n+1}=\dot{{{\textbf {u}}}}_p^{n}+1/2\cdot \Delta t (\ddot{{{\textbf {u}}}}_p^n+\ddot{{{\textbf {u}}}}_p^{n+1})\)

    The summation to receive the position and acceleration update is performed for all connectivity nodes \(n_n\) whereas the velocity is updated via a trapezoidal rule where the upper index n indicates the time-stepping and \(\Delta t\) the time-step size.

The implicit Newmark time integration scheme applied in this paper is an extension of the initially proposed displacement-based formulation presented in [46]. Further details, as well as an extension to incorporate mixed formulation, can be found in [42, 47, 48].

Boundary conditions in MPM

Boundary conditions in MPM can be applied directly at the nodes of the computational background grid if the boundary of the material domain matches with the background grid. This means that both Neumann and Dirichlet boundary conditions can be imposed in a FEM fashion, complying naturally with the Kronecker delta property. However, as the material points move independently of the grid, the boundaries do not necessarily coincide with the nodes of the background grid leading to the necessity of imposing in-homogeneous or non-conforming boundary conditions for the general case. Several attempts have been made to address this issue, just mentioning among them the Penalty Method [49] for the weak imposition of Dirichlet conditions, and [50] to impose moving Neumann boundary conditions.

Focusing on the imposition of point loads for the proposed coupling scheme, boundary particles are introduced [51] to discretize the continuous Neumann interface \(\Gamma _N\) by a discrete number of mass-less particles \(n_{bp}\):

$$\begin{aligned} \Gamma _N \approx \Gamma _N^h = \bigcup _{bp=1}^{n_{bp}} A_{\text {bp}}, \end{aligned}$$
(12)

where \(A_{\text {bp}}\) indicates the current area of the boundary particle. Hence, the traction surface integral of Eq. (11) can be rewritten as

$$\begin{aligned} \int _{\Gamma _N}N_I \overline{{{\textbf {p}}}}d\Gamma _N \approx \bigcup _{bp=1}^{n_{bp}}N_I \overline{{{\textbf {p}}}} A_{\text {bp}} = \bigcup _{bp=1}^{n_{bp}}N_I {{\textbf {F}}}_{\text {S}} \end{aligned}$$
(13)

where \({{\textbf {F}}}_{\text {S}}\) is the respective resulting point load at each introduced boundary particle. The subscript S, which is introduced at this point, indicates the imposition of the point load within the MPM solver.

Including this in the MPM calculation procedure means, that in the Initialization phase a search for each boundary particle is performed to define the connectivity before the respective point load is mapped via the corresponding basis functions to the nodes of the background grid.

Then the system is solved in the Lagrangian phase before the kinematic variables at the boundary particle are updated, following the concept of material points. Therefore the boundary particles move according to the deformation of the body discretized by material points. This is an important feature for the proposed partitioned MPM-DEM coupling scheme, as those boundary particles are tracking the interface of the MPM domain.

Special consideration is necessary for background elements, which carry boundary particles but no material points. Therefore, to fulfill the equilibrium condition, the point load values are mapped solely to nodes of the background grid, which are assigned a mass and therefore are connected to the body. This can be achieved by modifying the basis functions \(N_{I}({{\textbf {x}}}_{\text {bp}})\) of the nodes evaluated at the position of the boundary particle \({{\textbf {x}}}_{\text {bp}}\):

$$\begin{aligned} {\bar{N}}_{I}({{\textbf {x}}}_{\text {bp}})&= \dfrac{N_{I}^*({{\textbf {x}}}_{\text {bp}})}{\sum _{I}^{n_n} N_{I}^*({{\textbf {x}}}_{\text {bp}})} \qquad \mathrm {where: } N_{I}^*({{\textbf {x}}}_{\text {bp}}) = {\left\{ \begin{array}{ll} 0.0,&{} \text {if } m_I\le \epsilon \\ N_{I}({{\textbf {x}}}_{\text {bp}}), &{} \text {otherwise}, \end{array}\right. } \end{aligned}$$
(14)

where \(\epsilon \) is usually considered numeric zero whereas the partition of unity is guaranteed by the weighting procedure.

Discrete element method (DEM)

In contrast to MPM, which belongs to the group of continuum-based particle methods, DEM considers the motion and interaction of discrete particles. Since its first mention and derivation in [29], DEM has become increasingly popular and is now used in both industrial applications and science. DEM is a particle method, which discretizes the considered body into discrete particles. Therefore it is often used for granular materials on one hand and interacting discrete obstacles on the other side. Additionally, large discrete events, such as rockfall [30,31,32] can be efficiently handled with the DEM.

While arbitrary polyhedral shapes of the particles could be considered [28], contact algorithms applying a sphere are preferable, as the contact calculation is efficient. For the simulation of arbitrarily shaped bodies, the clustering of DEM particles which has been investigated in [52] will be applied. The creation of such clusters has been extensively discussed in [53, 54], which provide a free-to-use online tool [55].

Contact detection

As described in [28] this approach results in a reduced computational time when calculating overlaps compared to the contact between two polyhedra. Using spheres or clusters of spheres, only the contact between sphere-sphere, sphere-line, sphere-vertex, and sphere-surface need to be considered, which are simple operations in which only the shortest distance and the respective sphere radius are compared. This has been investigated in [33, 34], which additionally describes an efficient way of handling various contact partners at the same time, applying the so-called Double Hierarchy Method. A sphere with the center \({\mathbf {C}}_i\) and a corresponding radius \(R_i\) is in contact with an arbitrary geometric object as soon as the shortest distance \(d_i\) from the surface of the object to the center of the sphere \({\mathbf {C}}_i\) is smaller than the radius, that is \(d_i<R_i\). See [34], on how to calculate \(d_i\) for different geometric entities, such as vertices, lines, and surfaces.

Contact forces

As soon as contact is detected, the respective contact forces are calculated. A variety of different contact laws can be applied, while a Hertz-Mindlin spring-dashpot (HM+D) [56] model is used in this work.

Fig. 2
figure 2

Rheological model (I) for sphere-sphere contact. (II) for sphere-vertex/line/surface contact. Source [33]

As Fig. 2 visualizes, the contact between different geometric objects with the HM+D model needs the definition of various DEM parameters:

  • \(k_n,k_t\): Normal and tangential spring stiffness.

  • \(c_n,c_t\): Normal and tangential damping coefficients \(c_n,c_t\).

  • \(\mu \): (Sliding) Friction coefficient, restricted to Coulomb’s friction limit [56].

The proceeding calculation of the contact force, with the help of the DEM parameters mentioned above, is omitted at this point and can be looked up in [33, 34, 56,57,58,59].

Integration of motion

After computing the contact forces, the DEM solution process proceeds to the integration of motion, following Newton’s second law of motion. While the mass m relates the translational acceleration \(\ddot{{\mathbf {u}}}\) to the forces \({\mathbf {F}}\), the inertia tensor \({\mathbf {I}}\) is used to calculate the moments (torques) \({\mathbf {T}}\) via the rotational acceleration \(\dot{\varvec{\omega }}\).

$$\begin{aligned} {\mathbf {F}}&= m \ddot{{\mathbf {u}}}, \end{aligned}$$
(15)
$$\begin{aligned} {\mathbf {T}}&= {\mathbf {I}} \dot{\varvec{\omega }}. \end{aligned}$$
(16)

Following [30, 34, 60] the forces and moments on each of the particles are described as the sum of multiple contributions,

$$\begin{aligned} {\mathbf {F}}_i&= {\mathbf {F}}_i^{ext} + \sum _{j=1}^{n}\overbrace{\left( F_n {\mathbf {n}}^{ij}+F_t {\mathbf {t}}^{ij}\right) }^{{\mathbf {F}}^{ij}} + {\mathbf {F}}_i^{damp}, \end{aligned}$$
(17)
$$\begin{aligned} {\mathbf {T}}_i&= {\mathbf {T}}_i^{ext} + \sum _{j=1}^{n}\left( {\mathbf {r}}_c^{ij}\times {\mathbf {F}}^{ij}\right) + {\mathbf {T}}_i^{damp}. \end{aligned}$$
(18)

With,

  • \({\mathbf {F}}_i^{ext},{\mathbf {T}}_i^{ext}\): External loads, torques.

  • \({\mathbf {F}}^{ij}\): Contact forces between sphere i and sphere j or MPM boundary j as \({\mathbf {F}}_{\text {i,\, Contact}}\).

  • \({\mathbf {F}}_i^{damp},{\mathbf {T}}_i^{damp}\): External damping loads / boundaries.

  • \({\mathbf {n}}^{ij},{\mathbf {t}}^{ij}\): Normal and tangential vectors at the contact points between the two respective geometric objects ij.

  • \({\mathbf {r}}_c^{ij}\): Connection vector between sphere i and the contact point to the neighbour j.

Different time integration schemes can be applied, ranging from a first-order forward Euler to arbitrarily high-order schemes with an increasing level of complexity. For the simulations in this work, a second-order Velocity-Verlet [28] (central differences) scheme is used to integrate the translational degrees of freedom. In contrast to the classical Verlet method [61] the Velocity-Verlet provides second-order accuracy for both the displacement as well as the velocity. Furthermore, to provide a robust time integration of the rotations [62] proposes a time integration, working with quaternions [63] which is used in the following examples.

For a more detailed discussion of the DEM more information can be found in [28, 33, 34, 56,57,58,59,60].

Partitioned weak MPM-DEM coupling scheme

The fundamental idea of a partitioned or staggered coupling scheme is that the involved sub-solvers, specifically for the proposed coupling scheme the \({\text {MPM}}\)- and \({\text {DEM}}\)-solver, are treated as black-box solvers and the communication between them, the MPM (indicated by subscript S) domain \(\Omega _{\text {S}}\) with boundary \(\Gamma _{\text {S}}\) and the DEM (indicated by subscript P) domain \(\Omega _{\text {P}}\) with boundary \(\Gamma _{\text {P}}\) is shifted to their shared interface

$$\begin{aligned} \Gamma _{\text {SP}}=\Gamma _{\text {S}}\cap \Gamma _{\text {P}}, \end{aligned}$$
(19)

where the interface transmission conditions need to be satisfied. Enforcing the consistent deformation of the involved sub-systems leads to the kinematic condition

$$\begin{aligned} {{\textbf {u}}}_{\text {P}}({{\textbf {x}}})={{\textbf {u}}}_{\text {S}}({{\textbf {x}}}), \qquad \dot{{{\textbf {u}}}}_{\text {P}}({{\textbf {x}}}) = \dot{{{\textbf {u}}}}_{\text {S}}({{\textbf {x}}}) \qquad ({{\textbf {x}}} \in \Gamma _{\text {SP}}), \end{aligned}$$
(20)

where \({{\textbf {u}}}_{\text {S}}({{\textbf {x}}})\), \({{\textbf {u}}}_{\text {P}}({{\textbf {x}}})\) are the continuous displacement and \(\dot{{{\textbf {u}}}}_{\text {S}}({{\textbf {x}}})\), \(\dot{{{\textbf {u}}}}_{\text {P}}({{\textbf {x}}})\) the velocity fields of the MPM and DEM partition at the interface respectively. Additionally, the load balance has to be satisfied, leading to the dynamic condition

$$\begin{aligned} {{\textbf {p}}}_{\text {P}}({{\textbf {x}}}) =-{{\textbf {p}}}_{\text {S}}({{\textbf {x}}}) \qquad ({{\textbf {x}}} \in \Gamma _{\text {SP}}), \end{aligned}$$
(21)

where \({{\textbf {p}}}_{\text {S}}({{\textbf {x}}})\) and \({{\textbf {p}}}_{\text {P}}({{\textbf {x}}})\) are the traction fields at the respective interface, which are defined with respect to the corresponding outward normal vectors. Discretizing the involved sub-systems for the solution process, the kinematic constraint is formulated in the discrete form as

$$\begin{aligned} {{\textbf {u}}}_{\text {P}}={{\textbf {H}}}_{\text {PS}}{{\textbf {u}}}_{\text {S}}, \qquad \dot{{{\textbf {u}}}}_{\text {P}} = {{\textbf {H}}}_{\text {PS}}\dot{{{\textbf {u}}}}_{\text {S}}, \end{aligned}$$
(22)

where \({{\textbf {u}}}_{\text {P}}\), \({{\textbf {u}}}_{\text {S}}\) are the displacements and \(\dot{{{\textbf {u}}}}_{\text {P}}\),\(\dot{{{\textbf {u}}}}_{\text {S}}\) are the velocities at the respective nodes of the discretized interface. The matrix \({{\textbf {H}}}_{\text {PS}}\) is the direct mapping matrix, arising from the applied mapping technique [64, 65], as the discretizations of the sub-systems are in general non-matching.

Rewriting the dynamic condition in its discrete form results in

$$\begin{aligned} {{\textbf {F}}}_{\text {S}}={{\textbf {H}}}_{\text {PS}}^T{{\textbf {F}}}_{\text {P}}, \end{aligned}$$
(23)

where \({{\textbf {F}}}_{\text {S}}\)are the resulting external forces at the MPM interface nodes and \({{\textbf {F}}}_{\text {P}}\) the resulting contact forces at the nodes of the DEM partition. In this study a conservative mapping technique [64, 66] is applied and therefore the transposed mapping matrix \({{\textbf {H}}}_{\text {PS}}^T\) is used, to map the forces from DEM to MPM, enforcing the conservation of energy

$$\begin{aligned} \int _{\Gamma _{\text {SP}}} {{\textbf {u}}}_{\text {P}}({\mathbf {x}}){{\textbf {p}}}_{\text {P}}({\mathbf {x}}) d\Gamma _{\text {SP}} =- \int _{\Gamma _{\text {SP}}} {{\textbf {u}}}_{\text {S}}({\mathbf {x}}){{\textbf {p}}}_{\text {S}}({\mathbf {x}}) d\Gamma _{\text {SP}}, \end{aligned}$$
(24)

at the shared interface.

In the partitioned strategy the two partitions are solved separately and the interface equilibrium is enforced by boundary conditions which are imposed at each interface. Therefore in the DEM partition a Dirichlet condition, called wall condition in the following is introduced at the shared interface which was originally proposed by Santasusana [33] for partitioned coupling with FEM. Depending on the velocity and the displacement of this wall condition, contact forces with the DEM particles can be calculated. During the calculation process this interface is discretized into line segments whereas the respective surface is triangulated in the three-dimensional case. Therefore, solving the DEM partition possibly results in contact between the DEM particle and a vertex, a line segment or a triangular surface, leading to contact forces \({\mathbf {F}}_{\text {i,Contact}}\) at the DEM particle i and discrete forces \({\mathbf {F}}_{\text {P}} \) at the corresponding nodes of the wall condition.

Thus, expressing the DEM partition as black-box solver results in

$$\begin{aligned} {\mathbf {F}}_{\text {P}}={\text {DEM}}({\mathbf {u}}_{\text {P}}, \dot{{\mathbf {u}}}_{\text {P}}), \end{aligned}$$
(25)

where \({\mathbf {u}}_{\text {P}},\dot{{\mathbf {u}}}_{\text {P}}\) represent the discrete nodal displacements and velocities of the wall condition, which are the input for the DEM solver and finally resulting in contact forces \({\mathbf {F}}_{\text {P}}\) at the discretized nodes of the interface condition after solving the DEM problem (details of the DEM calculation process are summarized in “Discrete element method (DEM)” section).

Applying a Dirichlet- Neumann partitioning, a Neumann boundary condition is introduced in the MPM model at the shared interface. This interface is discretized by boundary particles which can be assigned a point load and are kinematically updated according to the material points, tracking the interface. Therefore, meeting the discrete dynamic interface condition (Eq. 23) the contact forces \({\mathbf {F}}_{\text {P}}\) calculated by the DEM solver are mapped to the MPM partition as external forces \({\mathbf {F}}_{\text {S}}\). For the data transfer between the two interfaces the nearest neighbor interpolation technique [64] is applied in this study resulting in a copy operation in most of the cases, as the boundary particles usually are located at the same position as the nodes of the discretized wall condition in DEM to reduce errors arising from the mapping.

Therefore the equation for the MPM black-box solver can be written as (details of the MPM calculation process are summarized in “Material point method (MPM)”)

$$\begin{aligned} \left\langle {\mathbf {u}}_{\text {S}}, \dot{ {\mathbf {u}}}_{\text {S}}\right\rangle ={\text {MPM }}({\mathbf {F}}_{\text {S}}) \end{aligned}$$
(26)

taking the forces \({\mathbf {F}}_{\text {S}}\) as input. The solution of the MPM domain then results in new displacements \({\mathbf {u}}_{\text {S}}\) and velocities \(\dot{{\mathbf {u}}}_{\text {S}}\) at the boundary particles which are discretizing the shared interface within the MPM partition. Meeting the discrete kinematic constraints (Eq. 22) this interface update consequently leads to updated displacements \({\mathbf {u}}_{\text {P}}\) and velocities \(\dot{{\mathbf {u}}}_{\text {P}}\) as an input for the DEM solver. Thus, sequentially solving Eqs. (25) and (26) which are determined by the interface transmission conditions (Eqs. 22 and 23), result in the Gauss-Seidel communication pattern [67, 68], which is schematically visualized in Fig. 3 for the weak coupling scheme.

Fig. 3
figure 3

Gauss-Seidel communication pattern for the partitioned weak MPM-DEM coupling scheme. Steps (1)–(4). are explained by Algorithm 1

In detail, bringing all aspects together the following workflow results for a complete partitioned weak MPM-DEM coupling scheme:

First of all, the models for the MPM and DEM partition are created independently of each other. At the shared interface, which usually coincides with the outline of the MPM body, a wall is defined in the DEM partition whereas boundary particles are introduced in the MPM counterpart. Avoiding errors due to data mapping, it is recommended, to locate the boundary particles in the MPM model at the same positions as the nodes of the discretized DEM wall.

After the problem setup, the calculation procedure starts, which is also summarized in algorithm 1 and visualized in Fig. 4, assuming that both involved solvers advance in time with the same time-step.

figure a
Fig. 4
figure 4

Partitioned MPM-DEM coupling scheme: In each time step, DEM is solved first (1). The resulting forces are mapped to MPM as external forces (2). Then MPM is solved leading to a kinematic update of the MPM interface (3), which is mapped back to DEM interface (4). Due to weak coupling, the steps are repeated for the next time steps

The DEM partition is solved first, with given displacements \({\mathbf {u}}_{\text {P}}\) and velocities \(\dot{{\mathbf {u}}}_{\text {P}}\) at the nodes of the discretized wall condition, possibly leading to some contact between the DEM particles and the wall condition. The resulting contact forces at the nodes of the discretized wall condition are then transferred by Eq. (23) to the interface of the MPM partition as external forces \({\mathbf {F}}_{\text {S}}\).

In the MPM calculation process, those point loads \({\mathbf {F}}_{\text {S}}\) at the boundary particles are treated as non-conforming Neumann conditions, leading to the calculation process, described in “Boundary conditions in MPM”. According to the deformation of the material points, also the displacements \({\mathbf {u}}_{\text {S}}\) and the velocities \(\dot{{\mathbf {u}}}_{\text {S}}\) of the boundary particles are updated, leading to a kinematic update of the shared interface. This update is mapped by Eq. (22) to the DEM partition updating the nodal displacements \({\mathbf {u}}_{\text {P}}\) and velocities \(\dot{{\mathbf {u}}}_{\text {P}}\) of the DEM wall condition accordingly.

Applying a weak coupling scheme also known as an explicit coupling scheme [22], the DEM solver advances in time and solves the DEM partition with the updated wall. For each time step, those steps are repeated until the end of the simulation \(t_{\text {end}}\).

It is important to remark that a DEM particle i calculates one resulting contact force \({{\textbf {F}}}_{\text {i,Contact}}\), depending on the shortest distance between the interacting object and the center of the particle. This can lead to difficulties during the coupling simulation especially considering solid or granular material in the MPM domain and their interaction with rather large obstacles compared to the background mesh size.

Fig. 5
figure 5

Calculation of contact forces in DEM and influence of the MPM partition. a One DEM particle calculates one resulting contact force, affecting only a limited number of background grid nodes in the MPM partition. b By clustering the DEM particles, also suited for arbitrarily shaped particles, the contact forces are distributed over the interface, leading to an accurate interface representation

As illustrated in Fig. 5a the DEM particle i calculates a single contact force \({{\textbf {F}}}_{\text {i,Contact}}\) with the wall condition in each time step and resulting in forces \({{\textbf {F}}}_{\text {P}}\) at the corresponding nodes of the discretized wall condition. Assuming a two-dimensional case and a DEM particle interacting with a line segment, this would result in two forces at the nodes of this segment. Mapping those forces to the MPM partition leads to point loads at the boundary particles, and usually, as a matching discretization of the interface is used, it would result in two point loads. Depending on the location of the boundary particles within the background mesh and the element size of the mesh, a particular area of the MPM domain is affected by the interface forces within each time step. Especially for granular material or solids within the MPM domain, together with a relatively larger particle size compared to the element size of the computational background grid in the MPM domain, this could lead to an insufficient representation of the shared interface, possibly resulting in penetration of the MPM material into the DEM particle and thus negatively affecting the results of the coupled simulation.

To resolve this issue, clustering of DEM particles [52] can be applied. Besides the advantage that arbitrarily shaped obstacles can be modeled efficiently by clustering DEM particles, each DEM particle within the cluster can calculate a contact force, leading to a more accurate representation of the interface, depicted in Fig. 5b. Therefore the clustering method should be applied if the shape of the particle should be accurately considered and a detailed interface representation is necessary in the MPM model.

Examples and validation

A series of tests have been conducted to show the application of the proposed partitioned MPM-DEM coupling scheme and its accuracy. First of all, the results are compared to an example with analytical solution from the literature for two- and three-dimensional problems. The second example which is an extension of the first one, represents a more challenging impact scenario. Also for this example a reference solution found in the literature is used for the assessment of the proposed numerical approach. Finally the numerical solution of a granular flow impacting on wooden obstacles is compared to experimental results conducted by Liu [36] to show the application for Soil-Particle interaction.

Single impact of DEM particle on simply supported beam modelled with MPM

For the validation of the proposed algorithm, an academic particle-structure interaction example is chosen, which was first proposed by Timoshenko [69] in 1951 and reviewed in detail by Meijaard [70]. It consists of a simply supported beam, impacted at its center by a sphere, and was also studied by Santasusana [33] to validate the partitioned DEM-FEM coupling scheme. The beam, in [33], was modeled by FEM solid elements, whereas a DEM particle represented the impacting sphere. According to this setup, in the proposed study, the impacting sphere is also represented by a DEM particle, whereas the elastic beam is calculated, using MPM.

The flexible beam, single supported on both sides, has a total length of \(15.35\,\text {cm}\) and a square cross-section of \(\text {A}=1 \times 1 \,\text {cm}^2\) whereas the impacting sphere has a radius of \(R=1.0\,\text {cm}\) and an imposed velocity of in y-direction. The system as well as the material parameters described in [70] are illustrated in Fig. 6.

Fig. 6
figure 6

Single spanned beam hit at its center by a sphere

Two models are created to validate the proposed coupling scheme and the respective boundary conditions for both the two and three-dimensional case. For the discretization of the two-dimensional MPM model, a quadrilateral background grid is chosen, which has three times the height of the beam and a total length of \(15.87\,\text {cm}\) meshed by \(62 \times 13\) elements. Therefore the resulting element size of the computational background grid is similar to the mesh size chosen by [33] when discretizing the beam by FEM solid elements. To generate the material points, an additional quadrilateral body mesh with \(120 \times 8\) elements is created in the preprocessing step. This mesh is used to initialize the material points at the respective Gauss point positions. For this example 16 particles within each body mesh element are considered, minimising the error arising from particle integration. The shared interface, defined at the top edge of the beam, is divided into 60 line segments for the DEM wall condition, whereas in the MPM model, 61 boundary particles are initialized coinciding with the nodal positions of the DEM wall.

The wall condition in the three-dimensional example, introduced at the top surface of the beam is discretized by \(77 \times 10\) structured triangles. Again, the boundary particles are placed at the same positions as the nodes of the wall, reducing errors arising from the mapping. For the three-dimensional MPM model, a structured hexahedral mesh is considered similar to the two-dimensional case but with a width of \(1.52\,\text {cm}\) being discretized by seven elements following [33]. For the body mesh the width direction is divided into 10 elements resulting in a hexahedral mesh. Again, 16 material points are initialized at the respective Gauss point positions of the body mesh elements.

For the impacting sphere, a Hertzian contact law is considered, and the coefficient of restitution is chosen to be 1.0, whereas a zero friction coefficient for the interaction between DEM and MPM is considered. For both examples, a time step of \(\Delta \text {t}=5e^{-8}\) is chosen.

During the calculation, the displacement of the sphere and the deformation of the beam center is measured. Additionally, the total contact force resulting from the impact is observed during the calculation time. The results are printed in diagram 7 and show excellent agreement with the solution obtained by [70] and [33].

Fig. 7
figure 7

Single spanned beam with a total length of \(15.35\, \text {cm}\) hit laterally at its center by a sphere with radius \(R=1\, \text {cm}\). Numerical results for 2D and 3D simulation in comparison to reference solution [70]

Due to the chosen geometry, this example produces a single impact between the beam and sphere, resulting in an oscillation of the beam, depicted in blue in the diagram 7 which corresponds to the natural frequency of the structure.

Multiple impacts of a DEM particle on simply supported beam modelled with MPM

The configuration of the second validation example is similar to the previous one except for the length of the beam which is increased to \(30.70\,\text {cm}\) and the radius of the sphere being \(R = 2.0\, \text {cm}\) in this case resulting in multiple impacts of the DEM particle on the simply supported beam. Also for this case, the reference solution can be found in [69, 70] and [33] investigated this example to validate the proposed DEM-FEM coupling scheme, too.

Following [33] the background grid is meshed by \(124 \times 13\) quadrilateral elements considering a total length of \(30.96\,\text {cm}\) for the grid. The material points are initialized at the Gauss point positions of a structured body mesh with \(24 \times 8\) quadrilateral elements. Also in this example 16 particles within each body mesh element are generated, reducing the error arising from particle integration within the MPM calculation procedure. Again, the top edge of the beam is the shared interface which is divided into 240 line segments for the DEM wall condition while the boundary particles in MPM are placed at the same positions as the nodes of the discretized DEM wall.

The obtained results for the displacement of the beam center and the sphere as well as the resulting contact forces during the simulation are plotted in Fig. 8 in comparison with the reference solution proposed by [70] and [33].

Fig. 8
figure 8

Single spanned beam with a total length of \(30.70\, \text {cm}\) hit laterally at its center by a sphere with radius \(R=2\, \text {cm}\). Numerical results compared to reference solution [70] and numerical results of a DEM-FEM coupling scheme conducted by [33]

Due to the changed geometry of the system, compared to the first example, the sphere impacts the beam three times leading to the vibration of the beam. Also for this example, the results show a very good agreement with the analytical solution proposed by [70], however, a small difference of the data during the second and third impact can be observed. This effect was also observed by [33] where the beam was modelled by linear solid elements (FEM), which similarly to the MPM model are not correctly capturing the higher vibration modes and therefore leading to the small deviation on the second and third contact events. Therefore, compared to the numerical solutions proposed by [33] a nearly perfect agreement can be observed. The slight difference in the two simulations are inherently arising from the MPM calculation, as the nodes of the computational background grid are not coinciding with the boundary of the considered beam, leading compared to FEM to a cruder approximation of the displacement field and a weak imposition of the contact forces.

Granular flow impacting DEM obstacles

The third validation case considers the interaction of significant strain flow events with obstacles. For this purpose, the experiment of granular material impacting wooden blocks, which was initially conducted by [36] is simulated and the obtained results are compared with the available data from the literature at specific time steps. Furthermore, this experiment was also investigated numerically by Liu et al. [36] for the validation of a monolithic coupled MPM-DEM method as well as by Jiang et al. [37] validating their proposed MPM-SDEM coupling method.

In both numerical simulations from the literature the granular flow is modeled by MPM whereas the discrete wooden blocks are represented as DEM [36] or SDEM [37] particles. In the coupling scheme proposed by [36] additional material points at the outline and the center of the discrete wooden blocks are introduced, so that the contact between the discrete objects and the granular flow is simulated by a momentum exchange at the nodes of the computational background grid. Therefore the accuracy of the method hardly depends on the background grid size which is improved by [37], where both the contact detection and the force calculation is unified under the contact scheme of the SDEM method. In this case, however, it is necessary to transform the material points which are within the Verlet radius of a SDEM particle into small SDEM disk particles with a certain, user-defined radius to calculate the contact forces which are applied to the material point as an external boundary force. Both methods are using a monolithic approach for the coupling of MPM and DEM and the respective numerical solutions are compared to the simulation results of the proposed partitioned MPM-DEM coupling scheme.

The initial configuration of the two-dimensional model representing the experiment is depicted in Fig. 9.

Fig. 9
figure 9

Granular material calculated with MPM impacting wooden blocks modelled with DEM cluster

consisting of the granular material confined initially to a region of \(10 \times 20 \times 20 \, \text {cm}^3\) and after releasing flows down due to gravity. Additionally, three identical wooden blocks are considered, which are placed on top of each other at a distance of \(30\,\text {cm}\) of the granular material, whereas the block on the bottom is glued to the desk to simulate a foundation of a building. Due to gravity, the granular flow impacts those wooden blocks, pushing the upper two wooden particles to the right side, resulting in an angular velocity, whereas the block on the bottom stays fixed.

For the calculation of this experiment, the bottom of the box containing the material is modelled as a fixed boundary while a slip condition is assumed for the vertical wall. The granular flow is simulated by MPM using Mohr-Coulomb plane strain material law with the respective material parameters summarized in Table 1 taken from [36].

Table 1 Material properties for the granular flow and the wooden blocks

For the discretization of the MPM model, an unstructured triangular background mesh with an element size of \(0.5\,\text {cm}\) is chosen, whereas for the initialization of the material points a body mesh of structured triangles with half of the element size containing three particles each is selected. Compared to [36] where the background grid size is determined by the contact detection, a finer discretization is chosen for our MPM model, to accurately reproduce the movement of the granular material between the wooden blocks in the run out of the experiment. As the granular material undergoes large deformation, boundary particles are placed with a distance of \(0.005\,\text {cm}\) around the initial configuration of the granular material to ensure a suitable discretization of the shared interface throughout the simulation. For this example however, those boundary particles are not placed exactly at the outline of the body but are shifted marginally inside the body, to avoid numerical instabilities during the calculation.

Considering gravity driven granular material, this modification is necessary, as the boundary particles receive the resulting contact forces from the DEM partition and apply them to the MPM model as point loads. If those point loads are applied to elements which contain only few single material points—which is a general case at the body outline—this could lead to non-physical behaviour of those elements and therefore to large movement of the material points within those elements. Therefore to ensure that the forces are applied to the main material flow, the boundary particles are defined within the first row of the material points. In this specific case, the marginal shift \(\delta \) is one third of the body mesh size, much smaller than the size of the background elements, and therefore almost negligible for the final solution. In addition to the marginal shift \(\delta \), future research could investigate alternative solutions to overcome the numerical instabilities at the interface such as [71, 72].

The wooden blocks are simulated by DEM, whereas each block of size \(2 \times 1.8 \times 19.8\,\text {cm}^3\) consists of \(8 \times 8\) spherical particles which are compacted to a cluster to model the squared shape of the blocks. As the block on the bottom is glued to the desk, it can be modeled as a fixed boundary in the simulation, and therefore only block one and two are represented as a DEM cluster particle. The discretization of the boundary wall follows the initialization of boundary particles in MPM, meaning that the nodes of the wall condition coincide with the boundary particle positions to avoid errors occurring from data mapping. For the calculation of the contact forces within the DEM partition a Hertzian contact law is considered. Friction and adhesion between the wood clusters itself is set to \(\mu = 0.6\) and \(c=30\, \text {Pa}\) whereas for interaction with the rigid boundary \(\mu = 0.3\) and \(c=60\,\text {Pa}\) is assumed, respectively. For the simulation, a time-step of \(\Delta t= 5\text {e}^{-5}\) is considered.

Fig. 10
figure 10

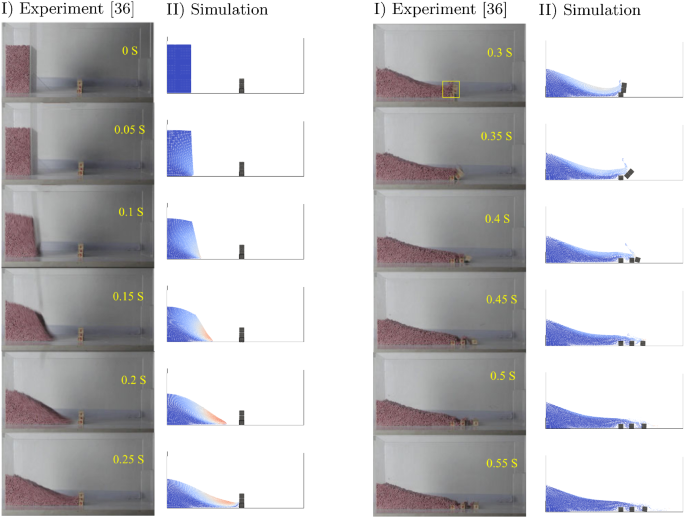

Granular material calculated with MPM impacting wooden blocks modelled with DEM cluster. Comparison of the experimental results [36] and the obtained numerical solution

The numerical results of the newly proposed partitioned MPM-DEM coupling scheme are presented in Fig. 10 in comparison to the experimental results published by [36]. It can be seen, that our solution can reproduce accurately the experimental result. Similar to the experiment, the granular flow reaches the wooden blocks at \(t=0.25\text {s}\). Due to the impact, the DEM clusters start to move and rotate around the fixed block at the bottom. Comparing the results at time \(t=0.30\text {s}\) one can observe, that the two cluster blocks are still in touch over the full width of the block which agrees well with the experiment. This is an enhancement if compared to the numerical results obtained by [37], which is illustrated in Fig. 12, as the adhesion between the DEM blocks can be considered by the implemented Hertzian contact law within the DEM application. In our simulation, the second block firstly touches the ground between \(t=0.36\text {s}\) and \(t=0.37\text {s}\) with one edge and rotates subsequently until the complete outer edge is in touch with the ground at \(t=0.40\text {s}\) which corresponds to a rotation of \(90{^\circ }\) in total. Figure 11 shows the rotation angle of the second block in comparison to the experiment and the results from the literature [36, 37]. The obtained solution is in good agreement for the entire simulation time.

Fig. 11
figure 11

Rotation angle of the second block compared to the experiment [36] and the numerical solutions of Liu et al. [36] and Jiang et al [37]

Block number one, the top block, starts to move and rotate together with the second block and touches the ground for a first time between \(t=0.38\text {s}\) and \(t=0.39\text {s}\) with its corner. This impact causes its detachment from the ground and its rotation around its axis, which coincides with the picture of the experiment at \(t=0.40\text {s}\) and finally comes to rest with a total rotation of 180\(^{\circ }\) until \(t=0.45\text {s}\). In Fig. 12 the experimental results during the impact are presented in comparison with the available numerical solutions taken from [36] and [37] and our novel approach. In particular, the rotation of the upper block was not captured correctly in previous solutions but is reproduced very well by the novel approach.

Fig. 12
figure 12

Comparison of the experimental results [36] and the numerical solutions obtained by [36, 37] and our simulation results during the impact

Finally, comparing the run out configuration of the simulation with the experiment, the resting distance of the two moving blocks can be measured. In the experiment [36] the distance between the left boundary of the second block and the left boundary of the box was measured at \(34.6 \text {cm}\) whereas in our simulation the distance turned out to be \(34.5 \text {cm}\). Likewise for the top block, where the distance in the experiment was measured at \(40.1 \text {cm}\) compared with \(39.7 \text {cm}\) in the simulation which is in very good agreement. In order to achieve an even higher accuracy of the results, the calculation parameters, especially within the DEM application, have to be calibrated for the respective experiment. Additionally, to prevent the penetration of material points into the DEM particles at the very end of the simulation a finer discretization of the interface as well as a smaller background element size in MPM could be chosen. Apart from that, the numerical solution agrees very well with the experimental results, proving the applicability of the proposed partitioned MPM-DEM coupling scheme for large strain flow events in interaction with discrete obstacles, which is a common case in the numerical investigation of mass-movement hazards.

Conclusion

In contrast to previous solution techniques for the coupling of MPM and DEM, the proposed partitioned coupling scheme offers the possibility to choose the most suitable solver for each involved subsystem including the respective available toolboxes within these solvers. Therefore each physic involved can be solved independently in its preferred reference frame whereas the interaction is transferred to the shared interface.

Assuming mass-movement hazards interacting with discrete obstacles, the continuous flow can be discretized by MPM, which can simulate the large strain flow event also for large scale application cases using a continuum based approach. The discrete obstacles within the flow and the mutual interaction as well as the interaction with the surrounding gravity-driven flow, however, are simulated by DEM, as the contact detection itself and the calculation of the contact forces is advantageous within the DEM application.

During the simulation process, as the MPM and DEM applications are treated as black-box solvers, boundary conditions are introduced within each partition to ensure the communication of the involved solvers at the shared interface. Within the DEM model, the interface of the surrounding material is represented by a wall condition, which moves according to the material points in MPM. The contact forces between the wall and the DEM particles are mapped to those boundary particles which are discretizing the interface in the MPM partition and are receiving the contact forces as external forces. Due to the applied forces, the material points as well as the boundary particles are moving accordingly, leading to a kinematic update of the shared interface which, in turn, is mapped back to the DEM application to update the wall condition accordingly. The proposed coupling sequence is solved in a weak sense, applying Gauss-Seidel communication pattern.

Several numerical examples have been simulated to asses the quality of the proposed work. The comparison of the obtained results with analytical reference solutions from the literature proves the accuracy of the proposed scheme in both two- and three-dimensional models. Furthermore, the application for elasto-plastic regimes is demonstrated by comparing the results to experimental data from literature. The considered experiment consists of granular material, which flows down due to gravity and impacts three wooden blocks which are placed on top of each other. The numerical solution of this example, where the granular material is modelled by MPM and the wood blocks are discretized by DEM cluster particles, agrees very well with the experimental data for the entire simulation time. Moreover, compared to existing MPM-DEM coupling schemes in the literature, no special treatment such as transforming material points to DEM particles or introducing additional material points at the outline of the DEM domain is required for contact detection as the two involved physics are solved in a partitioned manner.

To conclude, the proposed partitioned MPM-DEM coupling scheme is a powerful method for the simulation of large strain flow events interacting with discrete objects as for example the numerical investigation of mass-movement hazards including huge rocks or other significant obstacles.

Availability of data and materials

The software used is [39,40,41]. The current developers’ version is available at [73] as a GitHub repository.

References

  1. Lucy LB. A numerical approach to the testing of the fission hypothesis. Astronom J. 1977;82:1013–24. https://doi.org/10.1086/112164.

    Article  Google Scholar

  2. Bui HH, Nguyen GD. Smoothed particle hydrodynamics (sph) and its applications in geomechanics: from solid fracture to granular behaviour and multiphase flows in porous media. Comput Geotech. 2021;138: 104315. https://doi.org/10.1016/j.compgeo.2021.104315.

    Article  Google Scholar

  3. Belytschko T, Lu YY, Gu L. Element-free Galerkin methods. Int J Numer Meth Eng. 1994;37(2):229–56. https://doi.org/10.1002/nme.1620370205.

    MathSciNet  Article  MATH  Google Scholar

  4. Oñate E, Idelsohn SR, Del Pin F, Aubry R. The particle finite element method. An overview. Int J Comput Methods. 2004;1(02):267–307. https://doi.org/10.1142/S0219876204000204.

    Article  MATH  Google Scholar

  5. Sulsky D, Chen Z, Schreyer HL. A particle method for history-dependent materials. Comput Methods Appl Mech Eng. 1994;118(1–2):179–96. https://doi.org/10.1016/0045-7825(94)90112-0.

    MathSciNet  Article  MATH  Google Scholar

  6. Sulsky D, Zhou S-J, Schreyer HL. Application of a particle-in-cell method to solid mechanics. Comput Phys Commun. 1995;87(1–2):236–52.

    Article  Google Scholar

  7. Ma S, Zhang X, Qiu X. Comparison study of MPM and SPH in modeling hypervelocity impact problems. Int J Impact Eng. 2009;36(2):272–82. https://doi.org/10.1016/j.ijimpeng.2008.07.001.

    Article  Google Scholar

  8. Zhang X, Sze K, Ma S. An explicit material point finite element method for hyper-velocity impact. Int J Numer Meth Eng. 2006;66(4):689–706. https://doi.org/10.1002/nme.1579.

    Article  MATH  Google Scholar

  9. Ma S, Zhang X, Lian Y, Zhou X. Simulation of high explosive explosion using adaptive material point method. Comput Model Eng Sci (CMES). 2009;39(2):101–24. https://doi.org/10.3970/cmes.2009.039.101.

    MathSciNet  Article  MATH  Google Scholar

  10. Chen Z, Hu W, Shen L, Xin X, Brannon R. An evaluation of the MPM for simulating dynamic failure with damage diffusion. Eng Fract Mech. 2002;69(17):1873–90. https://doi.org/10.1016/S0013-7944(02)00066-8.

    Article  Google Scholar

  11. Li X, Sovilla B, Jiang C, Gaume J. The mechanical origin of snow avalanche dynamics and flow regime transitions. Cryosphere. 2020;14(10):3381–98. https://doi.org/10.5194/tc-14-3381-2020.

    Article  Google Scholar

  12. Li X, Sovilla B, Jiang C, Gaume J. Three-dimensional and real-scale modeling of flow regimes in dense snow avalanches. Landslides. 2021;18(10):3393–406. https://doi.org/10.1007/s10346-021-01692-8.

    Article  Google Scholar

  13. Zhang H, Wang K, Chen Z. Material point method for dynamic analysis of saturated porous media under external contact/impact of solid bodies. Comput Methods Appl Mech Eng. 2009;198(17–20):1456–72. https://doi.org/10.1016/j.cma.2008.12.006.

    Article  MATH  Google Scholar

  14. Bandara SS. Material point method to simulate large deformation problems in fluid-saturated granular medium. PhD thesis, University of Cambridge Cambridge, UK 2013. https://doi.org/10.17863/CAM.31294.

  15. Yerro Colom A, Alonso Pérez de Agreda E, Pinyol Puigmartí NM. The material point method for unsaturated soils. Géotechnique. 2015;65(3):201–17. https://doi.org/10.1680/geot.14.P.163.

    Article  Google Scholar

  16. Bardenhagen SG, Kober EM. The generalized interpolation material point method. Comput Model Eng Sci. 2004;5(6):477–96.

    Google Scholar

  17. Sadeghirad A, Brannon RM, Burghardt J. A convected particle domain interpolation technique to extend applicability of the material point method for problems involving massive deformations. Int J Numer Meth Eng. 2011;86(12):1435–56. https://doi.org/10.1002/nme.3110.

    MathSciNet  Article  MATH  Google Scholar

  18. Sadeghirad A, Brannon RM, Guilkey J. Second-order convected particle domain interpolation (CPDI2) with enrichment for weak discontinuities at material interfaces. Int J Numer Meth Eng. 2013;95(11):928–52. https://doi.org/10.1002/nme.4526.

    MathSciNet  Article  MATH  Google Scholar

  19. Wilson P, Wüchner R, Fernando D. Distillation of the material point method cell crossing error leading to a novel quadrature-based c0 remedy. Int J Numer Meth Eng. 2021;122:1513–37. https://doi.org/10.1002/nme.6588.

    Article  Google Scholar

  20. Zhang X, Chen Z, Liu Y. The material point method: a continuum-based particle method for extreme loading cases. Oxford: Academic Press; 2016.

    Google Scholar

  21. Fern J, Rohe A, Soga K, Alonso E. The material point method for geotechnical engineering. A practical guide. Boca Raton: CRC Press; 2019.

    Book  Google Scholar

  22. Wüchner, R. Mechanik und numerik der formfindung und fluid-struktur-interaktion von membrantragwerken. Dissertation, Technische Universität München, München 2006.

  23. Winterstein A, Lerch C, Bletzinger K-U, Wüchner R. Partitioned simulation strategies for fluid–structure-control interaction problems by gauss-seidel formulations. Adv Model Simul Eng Sci. 2018;5(1):29. https://doi.org/10.1186/s40323-018-0123-6.

    Article  Google Scholar

  24. Guma G, Bucher P, Letzgus P, Lutz T, Wüchner R. High-fidelity aeroelastic analyses of wind turbines in complex terrain: Fsi and aerodynamic modelling. Wind Energy Sci Discuss. 2022;2022:1–25. https://doi.org/10.5194/wes-2021-131.

    Article  Google Scholar

  25. Chandra, B, Larese A, Iaconeta I, Rossi R, Wüchner R. Soil–structure interaction simulation of landslides impacting a structure using an implicit material point method. 2019; 72–78.

  26. Chandra B, Larese De Tetto A, Bucher P, Wüchner R. Coupled soil–structure interaction modeling and simulation of landslide protective structures. In: Coupled VIII: Proceedings of the VIII International Conference on Computational Methods for Coupled Problems in Science and Engineering, pp. 135–143, 2019. CIMNE

  27. Singer V, Bodhinanda C, Larese A, Wüchner R. A staggered material point method and finite element method coupling scheme using gauss seidel communication pattern. In: 9th Edition of the International Conference on Computational Methods for Coupled Problems in Science and Engineering 2021.

  28. Matuttis H-G, Chen J. Understanding the discrete element method: simulation of non-spherical particles for granular and multi-body systems. Singapore: Wiley; 2014.

    Book  Google Scholar

  29. Cundall PA, Strack ODL. A discrete numerical model for granular assemblies. Géotechnique. 1979. https://doi.org/10.1680/geot.1979.29.1.47.

  30. Sautter KB, Teschemacher T, Ángel Celigueta M, Bucher P, Bletzinger KU, Wüchner R. Partitioned strong coupling of discrete elements with large deformation structural finite elements to model impact on highly flexible tension structures. Advances in Civil Engineering (2020). https://doi.org/10.1155/2020/5135194.

  31. Sautter KB, Hofmann H, Wendeler C, Wüchner R, Bletzinger KU. Influence of de-cluster refinement on numerical analysis of rockfall experiments. Comput Particle Mech. 2021. https://doi.org/10.1007/s40571-020-00382-x.

    Article  Google Scholar

  32. Sautter KB, Hofmann H, Wendeler C, Wilson P, Bucher P, Bletzinger KU, Wüchner R. Advanced modeling and simulation of rockfall attenuator barriers via partitioned dem-fem coupling. Front Built Environ. 2021;7. https://doi.org/10.3389/fbuil.2021.659382

  33. Santasusana M. Numerical techniques for non-linear analysis of structures combining Discrete Element and Finite Element Methods. PhD thesis, CIMNE 2016.

  34. Santasusana M, Irazábal J, Oñate E, Carbonell JM. The Double Hierarchy Method.A parallel 3D contact method for the interaction of spherical particles with rigid FE boundaries using the DEM. Comput Particle Mech. 2016;407–428 . https://doi.org/10.1007/s40571-016-0109-4

  35. Asai M, Li Y, Chandra B, Takase S. Fluid–rigid-body interaction simulations and validations using a coupled stabilized isph-dem incorporated with the energy-tracking impulse method for multiple-body contacts. Comput Methods Appl Mech Eng. 2021;377: 113681. https://doi.org/10.1016/j.cma.2021.113681.

    MathSciNet  Article  MATH  Google Scholar

  36. Liu C, Sun Q, Zhou GGD. Coupling of material point method and discrete element method for granular flows impacting simulations. Int J Numer Meth Eng. 2018;115:172–88. https://doi.org/10.1002/nme.5800.

    MathSciNet  Article  Google Scholar

  37. Jiang Y, Li M, Jiang C, Alonso-Marroquin F. A hybrid material-point spheropolygon-element method for solid and granular material interaction. Int J Numer Meth Eng. 2020;121:3021–47. https://doi.org/10.1002/nme.6345.

    MathSciNet  Article  Google Scholar

  38. Alonso-Marroquín F, Wang Y. An efficient algorithm for granular dynamics simulations with complex-shaped objects. Granular Matter. 2009;11:317–29. https://doi.org/10.1007/s10035-009-0139-1.

    Article  MATH  Google Scholar

  39. Dadvand P, Rossi R, Oñate E. An object-oriented environment for developing finite element codes for multi-disciplinary applications. Arch Comput Methods Eng. 2010;253–297 . https://doi.org/10.1007/s11831-010-9045-2

  40. Dadvand P, Rossi R, Gil M, Martorell X, Cotela J, Juanpere E, Idelsohn S, Oñate E. Migration of a generic multi-physics framework to HPC environments. Comput Fluids. 2013;301–309. https://doi.org/10.1016/j.compfluid.2012.02.004

  41. Ferrándiz VM, Bucher P, Rossi R, Cotela J, Carbonell JM, Zorrilla R, Tosi R. KratosMultiphysics (Version 8.0). Zenodo 2020. https://doi.org/10.5281/zenodo.3234644.

  42. Iaconeta I, Larese A, Rossi R, Guo Z. Comparison of a material point method and a Galerkin Meshfree method for the simulation of cohesive-frictional materials. Materials. 2017;10(10):1150. https://doi.org/10.3390/ma10101150.

    Article  Google Scholar

  43. Bonet J, Wood RD. Nonlinear continuum mechanics for finite element analysis. Cambridge University Press, Cambridge 1997. https://doi.org/10.1017/CBO9780511755446.

  44. Belytschko T, Liu WK, Moran B, Elkhodary K. Nonlinear finite elements for continua and structures. Chichester: Wiley; 2013.

    MATH  Google Scholar

  45. Wriggers P. Nonlinear finite element methods. Berlin: Springer; 2008.

    MATH  Google Scholar

  46. Guilkey JE, Weiss JA. Implicit time integration for the material point method: quantitative and algorithmic comparisons with the finite element method. Int J Numer Meth Eng. 2003;57(9):1323–38. https://doi.org/10.1002/nme.729.

    Article  MATH  Google Scholar

  47. Iaconeta I, Larese A, Rossi R, Oñate E. A stabilized mixed implicit material point method for non-linear incompressible solid mechanics. Comput. Mech. 2018;1–18 . https://doi.org/10.1007/s00466-018-1647-9.

  48. Iaconeta I. A discrete-continuum hybrid modelling of flowing and static regimes. PhD thesis 2019.

  49. Chandra B, Singer V, Teschemacher T, Wüchner R, Larese A. Nonconforming dirichlet boundary conditions in implicit material point method by means of penalty augmentation. Acta Geotech. 2021. https://doi.org/10.1007/s11440-020-01123-3.

  50. Bing Y, Cortis M, Charlton T, Coombs W, Augarde C. B-spline based boundary conditions in the material point method. Comput Struct. 2019;212:257–74. https://doi.org/10.1016/j.compstruc.2018.11.003.

    Article  Google Scholar

  51. al-Kafaji IK. Formulation of a dynamic material point method (MPM) for geomechanical problems. PhD thesis, University of Stuttgart 2013.

  52. Kodam M, Bharadwaj R, Curtis J, Hancock B, Wassgren C. Force model considerations for glued-sphere discrete element method simulations. Chem Eng Sci. 2009. https://doi.org/10.1016/j.ces.2009.04.025.

    Article  Google Scholar

  53. Bradshaw G, O’Sullivan C. Adaptive medial-axis approximation for sphere-tree construction. ACM Trans Graphics. 2004. https://doi.org/10.1145/966131.966132.

    Article  Google Scholar

  54. Bradshaw G, O’Sullivan C. Sphere-tree construction using dynamic medial axis approximation. In: Proceedings of the 2002 ACM SIGGRAPH/Eurographics Symposium on Computer Animation 2002. https://doi.org/10.1145/545261.545267.

  55. Bradshaw G. Sphere-Tree Construction Toolkit. http://isg.cs.tcd.ie/spheretree/ 2021.

  56. Cummins S, Thornton C, Cleary P. Contact force models in inelastic collisions. In: Ninth International Conference on CFD in the Minerals and Process Industries. 2012.

  57. Schwager T, Pöschel T. Coefficient of restitution and linear-dashpot model revisited. Granular Matter. 2007. https://doi.org/10.1007/s10035-007-0065-z.

    Article  Google Scholar

  58. Thornton C, Cummins SJ, Cleary PW. An investigation of the comparative behaviour of alternative contact force models during inelastic collisions. Powder Technol. 2013. https://doi.org/10.1016/j.powtec.2012.08.012.

    Article  Google Scholar

  59. Shäfer J, Dippel S, Wolf D. Force schemes in simulations of granular materials. J Phys. 1996. https://doi.org/10.1051/jp1:1996129.

    Article  Google Scholar

  60. Oñate E, Zárate F, Celigueta MA, González JM, Miquel J, Carbonell JM, Arrufat F, Latorre S, Santasusana M. Advances in the DEM and coupled DEM and FEM techniques in non linear solid mechanics. Cham: Springer; 2018. p. 309–35.

    Google Scholar

  61. Verlet L. Computer “experiments’’ on classical fluids. i. Thermodynamical properties of Lennard-Jones molecules. Phys Rev. 1967;159:98–103. https://doi.org/10.1103/PhysRev.159.98.

    Article  Google Scholar

  62. Irazábal J, Salazar F, Santasusana M, Oñate E. Effect of the integration scheme on the rotation of non-spherical particles with the discrete element method. Comput Particle Mech. 2019. https://doi.org/10.1007/s40571-019-00232-5.

    Article  Google Scholar

  63. Hamilton WR. On Quaternions, or on a new System of Imaginaries in Algebra. In: Wilkins D R, editor. London Edinburgh and Dublin Philosophical Magazine 1844. 2000. https://www.emis.de/classics/Hamilton/OnQuat.pdf.

  64. de Boer A, van Zuijlen AH, Bijl H. Comparison of conservative and consistent approaches for the coupling of non-matching meshes. Comput Methods Appl Mech Eng. 2008;197(49):4284–97. https://doi.org/10.1016/j.cma.2008.05.001.

    Article  MATH  Google Scholar

  65. Wang T. Development of co-simulation environment and mapping algorithms. Dissertation, Technische Universität München, München 2016.

  66. Farhat C, Lesoinne M, Le Tallec P. Load and motion transfer algorithms for fluid/structure interaction problems with non-matching discrete interfaces: momentum and energy conservation, optimal discretization and application to aeroelasticity. Comput Methods Appl Mech Eng. 1998;157(1):95–114. https://doi.org/10.1016/S0045-7825(97)00216-8.

    MathSciNet  Article  MATH  Google Scholar

  67. Sicklinger S, Belsky V, Engelmann B, Elmqvist H, Olsson H, Wüchner R, Bletzinger K-U. Interface jacobian-based co-simulation. International Journal for Numerical Methods in Engineering. 2014;98(6):418–44. https://doi.org/10.1002/nme.4637. onlinelibrary.wiley.com/doi/pdf/10.1002/nme.4637.

  68. Uekermann BW. Partitioned fluid-structure interaction on massively parallel systems. Dissertation, Technische Universität München, München 2016.

  69. Timoshenko S, N, GJ. Theory of elasticity. McGraw-Hill 1951.

  70. Meijaard J. Lateral impacts on flexible beams in multibody dynamics simulations. In: IUTAM Symposium on Multiscale Problems in Multibody System Contacts. Springer, Dordrecht, pp. 173–182 2007.

  71. Yamaguchi Y, Moriguchi S, Terada K. Extended b-spline-based implicit material point method. Int J Numer Methods Eng. 2021;122(7):1746–69. https://doi.org/10.1002/nme.6598. onlinelibrary.wiley.com/doi/pdf/10.1002/nme.6598.

  72. Ma X, Giguere PT, Jayaraman B, Zhang DZ. Distribution coefficient algorithm for small mass nodes in material point method. J Comput Phys. 2010;229(20):7819–33. https://doi.org/10.1016/j.jcp.2010.06.041.

    Article  MATH  Google Scholar

  73. KRATOS-Github repository. https://github.com/KratosMultiphysics/Kratos.

Download references

Acknowledgements

This work was supported by the Hans Fischer Fellowship program of the Institute of Advanced Studies of the Technical University of Munich, Germany. The authors would like to acknowledge the support by Indam (Istituto Nazionale di Alta Matematica “Francesco Severi”).

Funding

Open Access funding enabled and organized by Projekt DEAL.

Author information

Authors and Affiliations

Authors

Contributions

All the authors prepared the manuscript. All the authors read and approved the final manuscript.

Corresponding author

Correspondence to Veronika Singer.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Singer, V., Sautter, K.B., Larese, A. et al. A partitioned material point method and discrete element method coupling scheme. Adv. Model. and Simul. in Eng. Sci. 9, 16 (2022). https://doi.org/10.1186/s40323-022-00229-5

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s40323-022-00229-5

Keywords

  • Material point method
  • Discrete element method
  • Partitioned coupling
  • Natural hazards
  • Granular flow
