A new mortar formulation for modeling elastomer bedded structures with modal-analysis in 3D

  • Thomas Horger1Email author,
  • Stefan Kollmannsberger2,
  • Felix Frischmann2,
  • Ernst Rank2 and
  • Barbara Wohlmuth1
Advanced Modeling and Simulation in Engineering Sciences20141:18

DOI: 10.1186/s40323-014-0018-0

Received: 25 April 2014

Accepted: 30 July 2014

Published: 6 November 2014

Abstract

Background

It is a well-known fact that cross-laminated timber structures are sensitive to rumbling noises. These transmissions are best captured by a fully three-dimensional mathematical model. Since the discretization of such models with hexahedral elements in a conforming manner is highly complex, we chose the mortar method to reduce the algorithmic complexity for the mesh generation. Moreover we consider high-order finite elements in order to deal with the high aspect ratios in three-dimensionally resolved, cross-laminated walls and slabs. The geometric models and material specification was derived from a building information model.

Methods

This paper derives a new mortar formulation designed to replace an explicitely discretized elastomer with a new coupling condition. To this end, tailored Robin conditions are applied at the interface as coupling conditions instead of the more standard continuity constraints. Having demonstrated the suitability of the mortar method for high order finite elements, we proceed with the derivation of the dimensional reduced model with the new coupling condition and to show its stability by numerical experiments. We then test the performance of the new formulation on benchmark examples and demonstrate the engineering relevance for practical applications.

Results

The newly derived mortar formulation performs well. We tested the new formulation on fully three-dimensional examples of engineering relevance discretized by high-order finite elements up to degrees of p=10 and found the reproduction of both eigenvalues and eigenmodes to be accurate. Moreover, the mortar method allows for a significant reduction in the algorithmic complexity of mesh generation while simultaneously reducing the overall computational effort.

Conclusion

The newly derived modified mortar method for replacing an elastomer layer is not only an academically interesting variant but is capable of solving problems of practical importance in modal-analysis of cross-laminated timber structures.

Keywords

Mortar method Weak coupling High-order finite elements Eigenvalue problem Cross laminated timber structures Modal-analysis

Background

The main contribution of this paper is a new dimensionally reduced model which captures eigenvalues and eigenmodes of elastomeric coupled domains in timber structures. Dimensionally reduced models are very attractive from the computational point of view. There is no need to mesh the three dimensional but thin subdomain of the elastomer within our approach. However, new challenges arise such as the formulation of a suitable coupling condition and their numerical realization. Here we use a variant of the popular mortar finite element method [1]-[3]. Mortar methods can be analyzed within the abstract framework of saddlepoint problems and can be regarded as a domain decomposition technique. Firstly, coupled problems are teared, meshed and discretized separately resulting, in general, in non-matching meshes at the interfaces. Secondly, these independent subproblems are interconnected in a weak form by balance equations involving, e.g., the surface traction. Thus, these techniques provide a very flexible and computationally attractive setting to handle numerically coupled multi-physics problems. Mortar methods have been applied successfully in many engineering applications, such as, e.g., contact problems [4]-[7], dynamic and static structural analysis [8]-[10], flow problems [11]-[13] and coupled problems in acoustics [14],[15]. Further, the mortar method is used to simulate eigenvalue problems in [16],[17]. Most contributions deal only with first or second order approaches. Although the theory of high order mortar methods is well understood [18],[19], the implementation of higher order quadrature formulas on cut elements in 3D simulations is technical challenging. Here we apply high order, up to 20 in the polynomial degree, techniques to approximate eigenvalues and eigenmodes in cross laminated timber structures interconnected by thin elastomer structures.

Our motivation to derive such a formulation stems from the need to compute the modal-analysis which is a main part of vibro-acoustical-analysis. In order to control sound transmissions between slabs and walls, these components are often connected by elastomers which we firstly model by using the linear elasticity equation because of the very thin character. Due to the composition of timber constructions consisting of thin, layered and orthotropic material, we aim for a fully three-dimensional resolution of the slabs and walls. For this purpose, we use the p-version of the finite element method, as presented for example in [20]. Moreover, it is well suited for the computation of solid, but thin-walled structures because it is robust in terms of the large aspect ratios which arise naturally in fully three-dimensional models of plates and shells [21]. It also provides better accuracy and convergence properties than low-order finite elements. In addition, the p-version of the FEM has already been shown to lead to excellent results for the analysis of sound transition through timber floors [22].

However, the construction of conforming, three dimensional meshes, that are analysis-suitable, is non-trivial. In this paper, we utilize the mesh generation techniques presented in [23]. A conforming mesh of connected walls and slabs, increases the number of elements significantly, as a local mesh refinement, in only one of the components automatically spreads to the others.

These restrictions motivate the use of mortar methods allowing for an independent meshing of the individual building components, as the physically imperative coupling is carried out numerically at a later stage in a weak sense.

The mortar method was first introduced as a method to couple spectral elements with finite elements in [1] where the ansatz space was weakly constrained. The present contribution, however, views the mortar method in the more popular context of enforcing the coupling conditions by means of Lagrange multipliers, as introduced in [2], and thus resulting in a saddle point formulation.

The modeling of elastic interface boundary conditions has been the subject for low orders in [24]-[26]. Also the modeling of interface elements has been investigated in [27],[28], with a spring boundary condition in [29] and with a Robin-type condition in [30]. We built on the work of [31], which demonstrated the excellent applicability of the mortar method for problems in structural mechanics for discretizations of high orders. We extend this concept to elastomeric coupled domains. To this end, we enforce a non-standard Robin type condition at the interface by means of Lagrange multipliers instead of the continuity requirements. Robin type interface conditions have been used to glue nonconforming grids, see, e.g., [32]. The main difference to the current paper is that our coupling condition not only aims to glue two nonconforming grids together, but is also able to replace the whole explicit discretization of an elastomer. Therefore, it goes beyond a simple domain decompositon method, it provides also a dimensionally reduced model.

The contribution at hand is organized as follows: We start by presenting the problem setting in Section ‘Problem setting and conforming discretization’ and introduce the classical mortar method in Section ‘Mortar method’. In Section ‘Modeling of the elastomer’, we derive our new mortar coupling condition which is able to replace an explicitly discretized elastomer. In Section ‘Results and discussion’, we present our simulation results. Section ‘Results and discussion’ compares numerically the standard mortar method with the conforming high order method in the context of eigenvalue problems for a rigidly connected L-shaped wall-slab example. To establish a reference solution, we firstly compute the eigenvalues and eigenfunctions on a wall-slab configuration in a conforming discretization in Section ‘Results and discussion’. There we already investigate the effect of connecting walls and slabs with different elastomers on the eigenvalues and the eigenfunctions. We then test the new formulation on the same wall-slab configuration in Section ‘The new elastomeric coupled mortar formulation’. Section ‘Influence of the elastomer thickness’ analyses numerically the influence of the elastomer thickness on the new coupling condition. Furthermore a more complex and application relevant example is presented in Section ‘A complex example’. In Section ‘Conclusions’, we give some conclusion according to the numerical results showing the flexibility and robustness of the new mortar method for practical application.

Methods

Problem setting and conforming discretization

In this section, we provide a dimensionally reduced model, resulting in a modified mortar approach. In contrast to the classical mortar setting, we end up with a non-symmetric saddle-point formulation. The surface traction now enters as a spring into the coupling condition.

The eigenvalue problem under investigation is given by
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equ1_HTML.gif
(1)
where ρ is the density and the stress tensor σ and the linearized strain tensor ϵ are defined as
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equ2_HTML.gif
(2)
Furthermore denotes the Hookes tensor which is given by the material parameters. We have denoted the eigenvalues by ω to avoid a confusion with the Lagrange multiplier λ of the mortar method considered in Section ‘Mortar method’. The most important parameters are summarized in Table 1, for convenience. We will assume that the domain https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq1_HTML.gif is bounded and polyhedral. In addition, we enforce Dirichlet boundary conditions on a non-trivial set Γ D and homogeneous Neumann boundary conditions on Γ N , where Γ N ΓΓ D =ø and Γ D Γ N = Ω.
Table 1

Parameter definitions

Parameter

Definition

https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq2_HTML.gif

Lamé parameter (shear modulus)

https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq3_HTML.gif

Lamé parameter

ρ

Density

ω

Eigenvalue

λ

Lagrange multiplier

ν

Poissons ratio

E

Young moduli

The variational formulation of (1) reads: Find the eigenvalues https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq4_HTML.gif and the eigenfunctions uϵV(Ω):={u|u(H1(Ω))3,u(Γ D )=0} so that
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equ3_HTML.gif
(3)

We discretize Equation (3) using conforming finite elements of high order associated with a hexahedral mesh. As basis functions, we use hierarchical shape functions based on integrated Legendre polynomials [20],[33].

Mortar method

A mortar method is typically associated with a domain partitioning. Here, the domain Ω is decomposed into two non-overlapping subdomains Ω m and Ω s so that
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equa_HTML.gif
The indices m and s correspond to the master and slave side, respectively. In our case, the wall is the slave domain and the slab is the mortar domain. We then define a common interface: Γ:= Ω s Ω m and the Lagrange multiplier space by M : = H - 1 2 ( Γ ) 3 where H - 1 2 ( Γ ) is the dual space of https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq7_HTML.gif . Here, we assume that https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq8_HTML.gif and thus no modifications on Γ have to be taken into account. The primal space is defined by X:=V(Ω m V(Ω s ), where V(Ω i ):={u|u(H1(Ω i ))3,u(Γ D Ω i )=0} with i{s,m}. We can now define our bilinear forms for the mortar method by
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equb_HTML.gif
where <•,•> * denotes the duality pairing of H 1 2 ( Γ ) 3 and H - 1 2 ( Γ ) 3 and https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq11_HTML.gif , https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq12_HTML.gif are defined by
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equ4_HTML.gif
(4)

The eigenvalue problem (1) can then be written in the following variational form:

Find the eigenvalues https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq13_HTML.gif , the eigenfunctions uX and λM so that
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equ5_HTML.gif
(5)

Equation (5) now defines the saddle point problem arising from the mortar method. The Lagrange multiplier λ corresponds to the negative surface traction -σ n of Ω s on the interface Γ, where n is the outward unit normal of Ω s .

For the discretization of the primal variable of (5), we employ hexahedral finite elements of high order on each subdomain Ω m ,Ω s . The dual space is discretized by the trace space of the discrete primal space on Ω s . This choice guarantees inf-sup stability [3],[34] and the mortar method for solving (5) can be written as
A ( u , λ ; v , μ ) = ωd ( u , v )

with A(u,λ;v,μ):=a(u,v)+b(v,λ)+b(u,μ).

The bilinearform A(•,•;•,•) fulfills the conditions of Remark 13.4 in [35], and thus the theory given in Section 8 of [35] ensures convergence of the discrete eigenvalues and eigenfunctions.

Modeling of the elastomer

The modeling of an elastomer for vibration isolation has been the subject in [36],[37]. These papers take many mechanical properties like strain and damping directly into account. Alternatively, the modal- and spectral-analysis can be realized by the modal superposition. In this case, the eigenmodes of the undamped system are required, and the damping is only taken into account in a postprocessing step. Thus, we neglect the damping. Moreover, the elastomer is modeled in terms of the linear elasticity equations because it is comparatively thin in one space direction [22]. This section will lay out a new modeling approach using a Robin type condition for the coupling, in order to replace an elastomer. This new coupling condition results in a dimensional reduced model which avoids the meshing of the three dimensional subdomain which corresponds to the elastomer. Our new coupling condition still yields a saddle point problem which fits into the implementational framework of mortar methods.

Modified mortar method using a Robin type condition

The goal of this modeling approach is to replace the elements representing the elastomer between the two components by a Robin type condition. The modeling idea is depicted in Figure 1. Because of the very thin elastomer layer, in our case 1.2[cm], we simplify the transversal shear in the elastomer and neglect the mass of the elastomer. We assume the elastomer to act linearly in z-direction on the solution between the slab and the wall. Without loss of generality, we assume the coordinate system of the mortar interface to be at z=0. Therefore, we define our displacement in the spirit of a Taylor series with z [ 0,d], where d denotes the thickness of the elastomer as
u ( x , y , z ) = u s ( x , y ) + z d u m ( x , y ) - u s ( x , y ) .
(6)
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig1_HTML.jpg
Figure 1

Modeling concept: thin layer (left) and interface formulation (right).

With this definition and with [ u]:=(u m (x,y)−u s (x,y)), the gradient of the displacement field at z=0 is given by
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equ9_HTML.gif
Now the linearized elastic strain reads
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equ10_HTML.gif
Further, we assume the following standard linear isotropic stress-strain relationship with the lamé parameters https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq14_HTML.gif and https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq15_HTML.gif to hold in the elastomer, i.e.,
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equd_HTML.gif
As the interface is assumed to be aligned to z=0, the normal vector on Γ directed towards Ω m is given by n= [ 0,0,1] T . The fluxes are then explicitly given by
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equ11_HTML.gif

Equation (7) is the new coupling condition between displacements and surface traction in the strong form.

Note that in comparison to the standard mortar coupling condition u s u m =0, we additionally obtain dependencies on the derivatives (u s )3,x,(u s )3,y,(u s )1,x,(u s )2,y, and the surface traction λ s =-σ|z = 0n interacts as a spring term with the displacement. The corresponding bilinear forms are now given by
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equ12_HTML.gif
with <•,•> being the https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq16_HTML.gif scalar product and https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_IEq17_HTML.gif . We note that this scalar product on the dual space is realized within the discrete setting as a L2-surface integral. In contrast to the bilinear forms b(•,•) and b ~ ( , ) no basis functions being defined on different sides of the interface are associated with c(•,•). Both λ and μ are given by the mesh on the slave side, and thus a standard quadrature formula can be easily applied. For given surface tractions λ i , the force equilibria of both bodies Ω i reads
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Eque_HTML.gif
Neglecting the difference between –λ s =σ|z=0n and λ m =σ|z=dn, setting λ=λ s and adding both equations we obtain
a ( u , v ) + b v , λ = ωd u , v .
(8)
The new coupling condition Equation (7) in the weak form and Equation (8) leads to the dimensionally reduced model given by
a ( u , v ) + b v , λ = ωd ( u , v ) , v X b ~ u , μ αc λ , μ = 0 , μ M
(9)

with the modeling parameter α defined as

Note that the parameters α and β can be directly computed from the properties of the elastomer. Replacing X by X h and M by M h gives the discrete version of Equation (9) yielding approximations ω h of the eigenvalues.

Results and discussion

Comparison between conforming and mortar discretization

We now consider the example depicted in Figure 2. It resembles a rigidly supported wall connected to a slab on one side and clamped at the other side. The corresponding discretization is depicted in Figure 3. It consists of ten hexahedral elements in the conforming case and eight in the mortar case. At this stage, we do not model an elastomeric coupling yet but assign the material parameters for timber to all hexahedral elements.
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig2_HTML.jpg

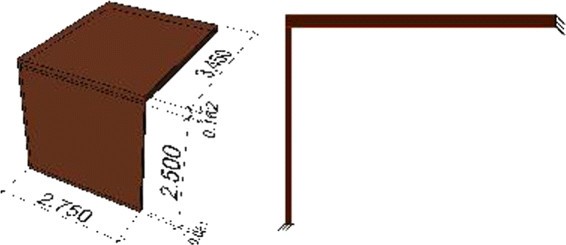

Figure 2

L-shaped connection of a slab to a wall.

https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig3_HTML.jpg
Figure 3

Hexahedral discretization: left conforming, right mortar.

The material parameters are given in Table 2, where Poisson's ratio and Young's module are denoted by ν and E, respectively.
Table 2

Elastomer properties for the simulations



Timber

Elast 1

Elast 2

Elast 3

Elast 4

Elast 5

Young's-modulus in [ N/m2]

9790•106

1.8•107

8.0•106

3.7•106

1.7•106

8.0•105

Poisson v in [–]

0.05

0.4

0.4

0.4

0.4

0.4

The eigenvalues for a sequence of p-FEM computations with polynomial degree p{3,7,10,15} are depicted in Table 3 along with the differences between the conforming and the mortar discretization. The differences decrease for higher orders.
Table 3

Comparison of eigenfrequency of the L-shaped wall-slab configuration



p = 3

p = 7

EW

Conform

Mortar

%

Conform

Mortar

%

1

50.720

50.852

0.261

50.289

50.298

0.019

2

70.755

72.006

1.768

69.172

69.942

1.113

3

76.534

78.317

2.330

74.456

74.833

0.506

4

90.707

91.976

1.399

87.931

88.491

0.637

5

159.423

168.390

5.624

125.276

126.069

0.632

6

174.712

174.869

0.090

159.311

159.393

0.051

7

179.359

185.147

3.227

172.931

172.966

0.020



p = 10

p = 15

EW

Conform

Mortar

%

Conform

Mortar

%

1

50.282

50.288

0.012

50.278

50.281

0.006

2

68.929

69.518

0.854

68.749

69.062

0.455

3

74.304

74.535

0.311

74.220

74.341

0.162

4

87.685

88.101

0.475

87.545

87.768

0.255

5

124.818

125.340

0.418

124.581

124.842

0.210

6

159.264

159.315

0.032

159.237

159.264

0.016

7

172.884

172.911

0.016

172.865

172.882

0.010

No elastomer between the wall and slab. The unit for the eigenfrequencies is given by [ H z].

Discrete modeling of the elastomer

In order to obtain a reference solution, the elastomer is discretely represented by a thin layer of hexahedral elements. The discretization is depicted in Figure 4, on the left. The green hexahedral elements in Figure 4 mark the elastomer. The material properties for typical elastomers are given in Table 2, where hard materials are listed first. The specific type of elastomer chosen in a practical application depends on the dead load to be expected on the elastomer. The corresponding eigenvalues of the system wall-elastomer-slab are given in Table 4. Eigenvalues corresponding to a direct connection of wall and slab are provided as well. It is readily apparent that, depending on the mode and the elastomer under contemplation, the eigenvalues of the system with an elastomer layer are about 5-35[ %] lower than without the elastomer. This is related to the fact that the coupling of the slab to the wall becomes weaker. Figure 5 illustrates the relative decay of each eigenvalue computed from the results depicted in Table 4.
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig4_HTML.jpg
Figure 4

Conforming (left) and mortar discretizations (right) of the structure whose geometry is described in Figure2. The thin elastomer layer is condensed into the mortar interface.

https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig5_HTML.jpg
Figure 5

Dependence of the first eight eigenvalues of the elastomer (left) and relative decay with respect to no elastomer for the first 20 eigenvalues (right).

Table 4

Influence of the different elastomers on the eigenfrequencies given in [ H z ]

EW

No Elast.

Elast. 1

Elast. 2

Elast. 3

Elast. 4

Elast. 5

1

50.282

48.584

47.472

45.933

43.157

38.357

2

68.929

52.437

51.461

50.461

48.676

45.275

3

74.304

64.128

61.773

58.287

52.669

45.588

4

87.685

79.851

77.797

74.245

68.109

59.885

5

124.818

110.669

105.449

98.276

90.290

84.003

6

159.264

149.448

141.577

127.098

106.626

89.151

7

172.884

160.956

154.662

140.762

123.733

105.596

8

178.886

162.633

155.910

145.873

127.320

111.518

The new elastomeric coupled mortar formulation

We now test the new mortar model given by Equation (9) using the discretization depicted on the right-hand side of Figure 4. The results are compared to the classical, conforming discretization, as depicted on the left-hand side of Figure 4, where the elastomer was modeled explicitly, as described in Section ‘Results and discussion’.

Table 5 depicts the first eight eigenvalues obtained by the new mortar model along with the deviation in [%] from the eigenvalues of the explicitly modeled elastic layer whose results were given in Table 4. All computations are carried out with a polynomial degree of p=10. We observe that the new model is able to reproduce the eigenvalues to an accuracy of at least four per cent. Not only the eigenvalues but also the eigenmodes of the two different discretization models have to match closely. Figure 6 shows selected eigenvectors of Elastomer 5. The upper row provides the eigenvectors, as computed by an explicit modeling of the elastomer while the lower row represents the corresponding eigenvectors of the new mortar method. Obviously, different types of modes such as lateral and transversal shear modes as well as pure compression and traction modes are equally well represented. While in the upper row the elastomer undergoes severe deformations, these are approximated by the coupling conditions at the interface between wall and slab in the lower row. Note that the missing elements for the elastomeric layer result from the reduction of the dimension. Moreover, the sequence of the eigenmodes remains the same in both models.
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig6_HTML.jpg
Figure 6

Comparison between eigenmodes 1, 3, 4, 7. Top row: conforming, hexahedral discretization. Bottom row: new mortar method. Note that the greyscale shows the displacement.

Table 5

Eigenfrequencies given in [ H z ] for the new modeling approach along with the deviation in percent from the conforming discretization depicted on the left hand side of Figure 4



Elast 1

Elast 2

Elast 3

Elast 4

Elast 5

EW

Value

%

Value

%

Value

%

Value

%

Value

%

1

48.664

0.165

47.511

0.082

46.034

0.218

43.206

0.112

38.545

0.490

2

52.678

0.459

51.628

0.325

50.685

0.443

48.997

0.659

45.846

1.262

3

64.315

0.292

61.916

0.231

58.685

0.682

52.891

0.421

46.082

1.083

4

80.059

0.260

78.252

0.585

75.113

1.170

69.159

1.542

61.539

2.763

5

110.912

0.220

105.784

0.317

99.112

0.850

90.606

0.350

84.208

0.243

6

149.371

0.052

141.757

0.127

128.750

1.300

107.303

0.635

89.468

0.355

7

161.365

0.254

155.063

0.259

142.314

1.103

124.127

0.319

109.623

3.814

8

162.967

0.205

157.058

0.737

148.494

1.797

130.530

2.521

111.558

0.036

We also analyse the eigenmodes by a modal assurance criterion as it is described in [38]. This modal assurance criterion determines the correlation of the eigenmodes. For a good correlation, the resulting matrix should have a diagonal with values greater than 0.9. Values close to 0 mean a poor correlation. The modal assurance criterion matrices show very good results for all practically relevant elastomers investigated in this paper. We show exemplary the modal assurance criterion matrix for elastomer 5 in Table 6. A selection of the eigenmodes are depicted in Figure 6. This confirms the good results for the newly developed coupling condition. Furthermore, it is pointed out that the number of finite elements is reduced by one third even in this small example. Herein, the boundary conforming model required 12 hexahedral elements while only 8 hexahedral elements sufficed for the new mortar approach. However, and most importantly, the mesh generation is simpler using the reduced model in the sense that each wall or slab can now be meshed separately before the discretized components are glued back together.
Table 6

Modal assurance criterion for the modeling of Elastomer 5



u 1

u 2

u 3

u 4

u 5

u 6

u 7

u 8



u 1

1.000

0.000

0.004

0.000

0.002

0.000

0.000

0.000



u 2

0.000

1.000

0.000

0.000

0.000

0.000

0.000

0.000



u 3

0.003

0.000

0.999

0.000

0.000

0.000

0.003

0.000

MAC E 5 _ 1.2 [ cm ] =

u 4

0.000

0.000

0.000

0.999

0.000

0.000

0.000

0.000



u 5

0.001

0.000

0.000

0.000

1.000

0.000

0.000

0.000



u 6

0.000

0.000

0.000

0.000

0.000

1.000

0.002

0.000



u 7

0.000

0.000

0.000

0.000

0.000

0.000

0.998

0.000



u 8

0.000

0.000

0.000

0.000

0.000

0.000

0.000

1.000

Influence of the elastomer thickness

A key assumption of the new approach is that the displacement field varies only linearly in the direction perpendicular to the two opposite interface of the elastomer with adjacent structures. In order to investigate the validity of this assumption, we vary the thickness of the elastomer and show its influence on the corresponding eigenvalues.

Remark1.

At this point it is noted that the thickness of the elastomers for typical wall-slab configurations is below 3[ c m]. In practical applications, thicknesses range from 1[ c m] to 1.5[ c m].

The reference solution is again computed with the conforming finite element method. We perform our simulation with two further thicknesses of the elastomer. The first thickness is 3[ c m], which is the maximum relevant thickness and the second thickness is 4[ c m], which is beyond the typical application range. The results for the investigation for the two elastomer thicknesses are depicted in Table 7 and Table 8 respectively. The tables show the deviation in [%] between the new model and the explicitly modeled elastomer.
Table 7

Eigenfrequencies given in [ Hz ] for the conform and the new method with the corresponding deviation in [%] for the elastomer thickness 3[cm]



Elast 1

Elast 3

Elast 5

EW

Conform

New

% diff

Conform

New

% diff

Conform

New

% diff



method

method



method

method



method

method



1

46.873

46.828

0.096

42.043

42.282

0.568

29.716

30.419

2.367

2

51.223

51.504

0.549

47.783

48.655

1.825

36.608

37.718

3.033

3

60.827

61.081

0.416

50.929

51.658

1.432

37.274

39.155

5.047

4

76.991

78.028

1.347

65.466

68.104

4.031

48.848

51.360

5.143

5

103.857

104.722

0.833

88.359

89.365

1.139

76.357

76.166

0.251

6

138.595

139.275

0.491

101.474

103.915

2.406

79.253

79.477

0.283

7

151.783

152.988

0.794

119.491

121.222

1.449

84.601

88.684

4.826

8

153.680

156.466

1.813

119.571

127.398

6.546

103.182

102.752

0.416

Table 8

Eigenfrequencies given in [ Hz ] for the conform and the new method with the corresponding deviation in [%] for the elastomer thickness 4[cm]



Elast 1

Elast 3

Elast 5

EW

Conform

New

% diff

Conform

New

% diff

Conform

New

%diff



method

method



method

method



method

method



1

46.100

46.001

0.215

39.931

40.471

1.354

26.683

27.634

3.562

2

50.780

51.115

0.661

46.091

47.664

3.413

32.869

35.531

8.098

3

59.252

59.736

0.817

47.753

48.835

2.266

35.046

36.449

4.004

4

75.331

76.804

1.956

61.409

65.291

6.323

45.903

48.787

6.283

5

100.661

102.266

1.594

85.356

86.606

1.464

73.943

73.419

0.707

6

132.275

134.570

1.735

93.278

96.202

3.135

78.124

78.372

0.317

7

145.499

148.266

1.902

108.759

115.437

6.140

80.538

84.663

5.122

8

148.833

153.236

2.959

113.584

119.391

5.113

101.426

100.758

0.658

While it can be observed that the thicker the elastomer, the bigger the error, the error does not rise above engineering accuracy for practical applications. Table 9 and Table 10 show the model assurance criterion matrices for the eigenmodes for the corresponding 3[ c m] and 4[ c m] elastomer simulations.
Table 9

Modal assurance criterion for the modeling of Elastomer 5 with thickness 3[cm]



u 1

u 2

u 3

u 4

u 5

u 6

u 7

u 8



u 1

1.000

0.000

0.000

0.000

0.000

0.001

0.000

0.000



u 2

0.000

1.000

0.000

0.000

0.000

0.000

0.000

0.000



u 3

0.000

0.000

0.996

0.000

0.000

0.000

0.003

0.000

MAC E 5 _ 3 cm =

u 4

0.000

0.000

0.000

0.999

0.000

0.000

0.000

0.000



u 5

0.001

0.000

0.000

0.000

0.998

0.000

0.006

0.000



u 6

0.002

0.000

0.000

0.000

0.002

0.999

0.001

0.000



u 7

0.000

0.000

0.004

0.000

0.000

0.000

0.994

0.000



u 8

0.000

0.000

0.000

0.000

0.000

0.000

0.000

1.000

Table 10

Modal assurance criterion for the modeling of Elastomer 5 with thickness 4[cm]



u 1

u 2

u 3

u 4

u 5

u 6

u 7

u 8



u 1

1.000

0.000

0.000

0.000

0.000

0.001

0.000

0.000



u 2

0.000

1.000

0.000

0.000

0.000

0.000

0.000

0.000



u 3

0.000

0.000

0.994

0.000

0.000

0.000

0.003

0.000

MAC E 5 _ 4 cm =

u 4

0.000

0.000

0.000

0.999

0.000

0.000

0.000

0.000



u 5

0.002

0.000

0.000

0.000

0.998

0.000

0.008

0.000



u 6

0.002

0.000

0.000

0.000

0.002

0.999

0.001

0.000



u 7

0.000

0.000

0.008

0.000

0.000

0.000

0.990

0.000



u 8

0.000

0.000

0.000

0.000

0.000

0.000

0.000

1.000

A complex example

The good performance of the new mortar method carries over to larger examples of engineering relevance even if an orthotropic material law is used for the elastically connected building parts as these changes in the material parameters only have an influence on the tensor for the wood parts in the linear elasticity Equation (3). is then given according to [22] by
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Equ13_HTML.gif
with
A 11 = E x D 0 1 - ν yz 2 E z E y , A 12 = A 21 = E y D 0 ν xy + ν yz ν zx E z E y , A 13 = A 31 = E z D 0 ν xy ν yz + ν zx , A 22 = Ey D 0 1 - ν zx 2 E z E x , A 23 = A 32 = E z D 0 ν yz + ν xy ν zx E y E x , A 33 = E z D 0 1 - ν xy 2 E y E x
where
D 0 = 1 - ν yz 2 E z E y - ν xy 2 E y E x - ν xy ν yz ν zx E z E x - ν zx 2 E z E x .
Figure 7 depicts a floor plan of a timber building along with a 2 1/2D submodel consisting of three rooms.
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig7_HTML.jpg
Figure 7

Detail of the ground floor plan considered for acoustical analysis.

This model forms the basis of the three-dimensional computational solid model comprising all conforming hexahedral elements depicted in Figure 8. Note that walls and slabs consist of several layers of wood, as depicted in Figure 9. The thickness of the layers is given in Table 11. Each layer is explicitly modeled with the characteristic, orthotropic material parameters of timber. We set the Young's moduli in fiber direction E x =137•106[N/m2], in-plane orthogonal E y =1424•106[N/m2], and perpendicular to the plane E z =10211•106[N/m2]. The Poisson's ratios are v zx =0.035, v yz =0.045, v xy =0.037. In addition, we apply the shear moduli G zx =459•106[N/m2], G yz =102•106[N/m2] and G xy =171•106[N/m2]. The density is assumed to be ρ=450[k g/m3] for all layers. Although the individual layers have the same material properties, their fiber orientation in plane is orthogonal in adjacent layers in such a way that the orientation is equal on every other layer only. This situation is accurately resolved by the finite element mesh. The elastomer is situated only at the interface where the slab rests on the walls and possesses the isotropic material properties of Elastomer 5, as given in Table 2. The conforming model is depicted in Figure 8. In total, the mesh consists of 7578 hexahedral elements.
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig8_HTML.jpg
Figure 8

Conforming hexahedral discretization.

https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig9_HTML.jpg
Figure 9

Wall types from left to right: Wall type 61, 85, 95 and slab 125.

Table 11

Layer thicknesses of walls and slab 125

Type

Layering [m m]

61

17*-27-17*

85

17*-17-17*-17-17*

95

17*-17-27*-17-17*

125

27*-27-17*-27-27*

The computational mesh for the mortar method is depicted in Figure 10. It consists of only 2475 hexahedral elements. It is evident how the components wall and slab were meshed independently of one another and are non-conforming at their interface. Not only does this greatly simplify the mesh generation process itself, it also avoids the generation of hexahedral elements due to continuity constraints at the interfaces of walls and/or slabs. A further reduction of hexahedral elements is possible by choosing mesh densities individually for all involved components. Also note that local refinements do not branch out to other walls. The elastomer where the slab rests on the walls is now modeled using the new mortar method given in Equation (8).
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig10_HTML.jpg
Figure 10

Non-conforming hexahedral discretization.

Table 12 also summarizes the comparison for the first eight eigenvalues and then selected higher eigenvalues up to one hundred. Note that the modeling error introduced by the new mortar approach remains below one per cent for all investigated eigenvalues. The error (in comparison to the conforming method) obtained when using the mortar method with the new coupling condition is comparable to the error obtained when using the standard mortar method. The upper row of Figure 11 depicts selected eigenvectors resulting from the conforming discretization given in Figure 8, while the lower half depicts the corresponding eigenvectors of the mortar discretization of Figure 10. All eigenvectors match within an accuracy which is considered sufficient for engineering applications.
https://static-content.springer.com/image/art%3A10.1186%2Fs40323-014-0018-0/MediaObjects/40323_2014_Article_18_Fig11_HTML.jpg
Figure 11

Comparison between eigenmodes 1, 2, 3, 4. Top row: resulting from the conforming discretization corresponding to Figure 8, Bottom row: non-conforming discretization corresponding to Figure 10.

Table 12

Computed eigenfrequencies given in [ H z ]for the building example

EW

Conform

Mortar

% diff

Conform

New coupling

% diff



no elast

no elast



elast

elast



1

11.357

11.471

1.007

9.883

9.960

0.779

2

13.738

13.861

0.899

12.439

12.496

0.459

3

14.347

14.425

0.547

13.302

13.346

0.330

4

15.807

15.947

0.884

13.938

14.067

0.926

5

16.988

17.133

0.856

14.980

15.134

1.030

6

21.070

21.329

1.227

19.256

19.398

0.737

7

21.832

21.988

0.715

20.765

20.833

0.325

8

24.038

24.265

0.947

21.072

21.165

0.437

...

...

...

...

...

...

...

20

36.868

37.071

0.552

34.033

34.437

1.189

...

...

...

...

...

...

...

30

48.414

48.769

0.732

43.329

43.850

1.202

...

...

...

...

...

...

...

40

61.815

62.479

1.073

53.238

53.574

0.631

...

...

...

...

...

...

...

50

69.224

70.028

1.162

60.897

61.468

0.938

...

...

...

...

...

...

...

60

77.711

78.402

0.889

66.702

67.982

1.919

...

...

...

...

...

...

...

70

86.225

86.443

0.253

76.123

76.488

0.479

...

...

...

...

...

...

...

80

93.425

93.893

0.501

83.881

84.382

0.597

...

...

...

...

...

...

...

90

101.063

101.673

0.603

88.875

89.558

0.769

...

...

...

...

...

...

...

100

108.871

109.382

0.469

94.814

95.145

0.349

Conclusions

The aim of this contribution was to model the behavior of eigenvalue problems of elastomerically supported, cross-laminated timber structures by means of an extended mortar method.

To this end, we first evaluated the applicability of the mortar method to the p-version of the finite element method of an eigenvalue problem for three-dimensional shell and plate-like structures. The deviation from a conformingly discretized, stiffly coupled wall-slab configuration for higher order p is below 1[ %] for all investigated eigenvalues. The eigenmodes likewise provided an excellent match within the required engineering tolerance. Secondly we derived a new coupling condition for the mortar method which is able to replace an explicit resolution of an elastomer. This new transmission condition is obtained from a dimension reduction. We then compared the eigenvalues and eigenmodes computed within this approach to the conformingly discretized wall-slab example, the wall now being connected to the slab by means of an elastomer. The resulting lowest eight eigenvalues of the two models correspond within a tolerance of less than 1[ %]. This accuracy is sufficient for the application at hand. We finally demonstrate that the good results obtained by the newly developed mortar variant also extend to larger examples of engineering relevance.

The practical motivation of using the new mortar method was to greatly simplify both the engineering modeling effort and the meshing process by dispensing with the need for a conformal element coupling between construction components like slabs and walls. An interesting side effect, however, was that it was also possible to significantly reduce the overall computational workload. The conforming model of the engineering example resulted in 7578 hexahedral elements while only 2475 hexahedral elements were needed for the mortar model. This reduction is due to the facts that: a) a component-wise mesh generation naturally introduces the possibility to choose local mesh densities, b) necessary refinements in other building components do not need to be respected and, accordingly, do not spread across interfaces, and c) at the interfaces of orthogonally coupled, laminated structures it was possible to avoid unnecessary hexahedral elements naturally due to the relaxed topological constraints, and d) it is not required to resolve the geometrically thin elastomer layer.

Declarations

Acknowledgements

We would like to gratefully acknowledge the funds provided by the “Deutsche Forschungsgemeinschaft” under the contract/grant numbers: RA-624/21-1 and WO-671/13-1.

Authors’ Affiliations

(1)
Institute for Numerical Mathematics, Technische Universität München
(2)
Chair of Computation in Engineering, Technische Universität München

References

  1. Bernardi C, Maday Y, Patera AT: A new non conforming approach to domain decomposition: the mortar element method. In Collége de France Seminar. Edited by: Brezis H, Lions J-L. Pitman, Paris, France, XI; 1994:13–51.Google Scholar
  2. Ben Belgacem F: The mortar finite element method with Lagrange multipliers. Numerische Mathematik 1999, 84: 173–197. 10.1007/s002110050468MATHMathSciNetView ArticleGoogle Scholar
  3. Wohlmuth BI: Discretization methods and iterative solvers based on domain decomposition. In Lecture Notes in Computational Science and Engineering. Springer, Berlin, New York; 2001.Google Scholar
  4. Hauret P, Tallec P: A discontinuous stabilized mortar method for general 3d elastic problems. Comput Methods Appl Mech Eng 2007,196(49–52):4881–4900. 10.1016/j.cma.2007.06.014MATHView ArticleGoogle Scholar
  5. Puso MA: A 3d mortar method for solid mechanics. Int J Numeric Methods Eng 2004, 59: 315–336. 10.1002/nme.865MATHView ArticleGoogle Scholar
  6. Wohlmuth BI, Popp A, Gee MW, Wall WA: An abstract framework for a priori estimates for contact problems in 3D with quadratic finite elements. Comput Mech 2012,49(6):735–747. 10.1007/s00466-012-0704-zMATHMathSciNetView ArticleGoogle Scholar
  7. Sitzmann S, Willner K, Wohlmuth BI: A dual lagrange method for contact problems with regularized contact conditions. Int J Numeric Methods Eng 2014, 99: 221–238. 10.1002/nme.4683MathSciNetView ArticleGoogle Scholar
  8. Casadei F, Gabellini E, Fotia G, Maggio F, Quarteroni A: A mortar spectral/finite element method for complex 2D and 3D elastodynamic problems. Comput Methods Appl Mech Eng 2002,191(45):5119–5148. 10.1016/S0045-7825(02)00294-3MathSciNetView ArticleGoogle Scholar
  9. Flemisch B, Wohlmuth B: Nonconforming methods for nonlinear elasticity problems. In Domain Decomposition Methods in Science and Engineering XVI. Lect. Notes Comput. Sci. Eng. Edited by: Widlund O, Keyes D. Springer, Berlin, Germany; 2007:65–76. 10.1007/978-3-540-34469-8_6View ArticleGoogle Scholar
  10. Hauret P, Tallec P: Two-scale Dirichlet-Neumann preconditioners for elastic problems with boundary refinements. Comput Methods Appl Mech Eng 2007,196(8):1574–1588. 10.1016/j.cma.2006.03.021MATHView ArticleGoogle Scholar
  11. Klöppel T, Popp A, Küttler U, Wall W: Fluid-structure interaction for non-conforming interfaces based on a dual mortar formulation. Comput Methods Appl Mech Eng 2011,200(45–46):3111–3126. 10.1016/j.cma.2011.06.006MATHView ArticleGoogle Scholar
  12. Peszynska M, Wheeler M, Yotov I: Mortar upscaling for multiphase flow in porous media. Comput Geoscience 2002,6(1):73–100. 10.1023/A:1016529113809MATHMathSciNetView ArticleGoogle Scholar
  13. Peszynska M: Mortar adaptivity in mixed methods for flow in porous media. Int J Numerical Anal Models 2005,2(3):241–282.MATHMathSciNetGoogle Scholar
  14. Triebenbacher S, Kaltenbacher M, Wohlmuth B, Flemisch B: Applications of the mortar finite element method in vibroacoustics and flow induced noise computations. Acta Acustica United Acustica 2010,96(3):536–553. 10.3813/AAA.918305View ArticleGoogle Scholar
  15. Flemisch B, Kaltenbacher M, Wohlmuth B: Elasto-acoustic and acoustic-acoustic coupling on non-matching grids. Int J Numeric Methods Eng 2006,67(13):1791–1810. 10.1002/nme.1669MATHMathSciNetView ArticleGoogle Scholar
  16. Buffa A, Perugia I, Warburton T: The mortar-discontinuous Galerkin method for the 2D Maxwell eigenproblem. J Sci Comput 2009, 40: 86–114. 10.1007/s10915-008-9238-0MATHMathSciNetView ArticleGoogle Scholar
  17. Lamichhane BP, Wohlmuth B: Mortar finite elements with dual Lagrange multipliers: some application. Lect Notes Comput Sci Eng 2005, 40: 319–326. 10.1007/3-540-26825-1_31MathSciNetView ArticleGoogle Scholar
  18. Seshaiyer P, Suri M: Uniform hp convergence results for the mortar finite element method. Math Comput 1999, 69: 521–546. 10.1090/S0025-5718-99-01083-2MathSciNetView ArticleGoogle Scholar
  19. Belgacem B, Seshaiyer P, Suri M: Optimal convergence rates of hp mortar finite element methods for second-order elliptic problems. ESAIM: Math Model Numerical Anal 2000, 34: 591–608. 10.1051/m2an:2000158MATHView ArticleGoogle Scholar
  20. Düster A, Rank E: The p-version of the Finite Element Method. In Encyclopedia of Computational Mechanics. Edited by: Stein E, de Borst R, Hughes TJR. John Wiley & Sons, Hoboken, New Jersey, USA; 2004:119–139.Google Scholar
  21. Rank E, Düster A, Nübel V, Preusch K, Bruhns OT: High order finite elements for shells. Comput Methods Appl Mech Eng 2005, 194: 2494–2512. 10.1016/j.cma.2004.07.042MATHView ArticleGoogle Scholar
  22. Rabold A (2010) Anwendung der finite element Methode auf die Trittschallberechnung. Dissertation, Chair for Computation in Engineering, Fakultät für Bauingenieur- und Vermessungswesen, Technische Universität München.Google Scholar
  23. Sorger C, Frischmann F, Kollmannsberger S, Rank E: TUM.GeoFrame: Automated high-order hexahedral mesh generation for shell-like structures. Eng Comput 2014,30(1):41–56. 10.1007/s00366-012-0284-8View ArticleGoogle Scholar
  24. Rüberg T, Martin Schanz M: Coupling finite and boundary element methods for static and dynamic elastic problems with non-conforming interfaces. Comput Methods Appl Mech Eng 2008, 198: 449–458. 10.1016/j.cma.2008.08.013MATHView ArticleGoogle Scholar
  25. Wang L, Hou S, Shi L: A numerical method for solving 3d elasticity equations with sharp-edged interfaces. Int J Partial Differential Equations 2013, 2013: 1–10. 10.1155/2013/476873View ArticleGoogle Scholar
  26. Hauret P, Ortiz M: Bv estimates for mortar methods in linear elasticity. Comput Methods Appl Mech Engrg 2006, 195: 4783–4793. 10.1016/j.cma.2005.09.021MATHMathSciNetView ArticleGoogle Scholar
  27. A finite element method for elasticity interface problems with locally modified triangulations Int J Numer Anal Model 2011,8(2):189–200.
  28. Finite element modeling of brick-mortar interface stresses Int J Civil Environ Eng 2012, 12: 48–67.
  29. Boström A, Bövik P, Olsson P: A comparison of exact first order and spring boundary conditions for scattering by thin layers. J Nondestructive Eval 1992, 11: 175–184. 10.1007/BF00566408View ArticleGoogle Scholar
  30. Bare DZ, Orlik J, Panasenko G: Asymptotic dimension reduction of a Robin-type elasticity boundary value problem in thin beams. Appl Anal 2014,93(6):1217–1238. 10.1080/00036811.2013.823481MATHMathSciNetView ArticleGoogle Scholar
  31. Wassouf Z (2010) The mortar method for the finite element method of high order. PhD thesis, Technische Universitä, t München. Wassouf Z (2010) The mortar method for the finite element method of high order. PhD thesis, Technische Universitä, t München.
  32. Gander MJ, Japhet C, Maday Y, Nataf F: A new cement to glue nonconforming grids with Robin interface conditions : the finite element case. Lect Notes Comput Sci Eng 2004, 40: 259–266. Springer, Berlin Heidelberg Springer, Berlin Heidelberg 10.1007/3-540-26825-1_24MathSciNetView ArticleGoogle Scholar
  33. Babuška I: Finite Element Analysis. John Wiley & Sons, Hoboken, New Jersey, USA; 1991.MATHGoogle Scholar
  34. Belgacem FB, Maday Y: The mortar element method for three dimensional finite elements. ESAIM: Mathematical Modelling and Numerical Analysis - Modé, lisation Mathématique et Analyse Numérique 1997,31(2):289–302.MATHGoogle Scholar
  35. Babuška I, Osborn J: Eigenvalue problems. Handbook Numerical Anal II 1991, 2: 642–787.Google Scholar
  36. Banks HT, Lybeck N: Modeling methodology for elastomer dynamics. Syst Control: Foundations Appl 1997, 22: 37–50.MathSciNetGoogle Scholar
  37. Castellani A, Kajon G, Panzeri P, Pezzoli P: Elastomeric materials used for vibration isolation of railway lines. J Eng Mech 1998, 124: 614–621. 10.1061/(ASCE)0733-9399(1998)124:6(614)View ArticleGoogle Scholar
  38. Pastor M, Binda M, Harcarik T (2012) Modal assurance criterion In: Procedia enginering MMaMS, 48, 543-548.Google Scholar

Copyright

© Horger et al.; licensee Springer. 2014

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
