A noninvasive nodebased form finding approach with discretizationindependent target configuration
Advanced Modeling and Simulation in Engineering Sciences volume 5, Article number: 11 (2018)
Abstract
Form finding is used to optimize the shape of a semifinished product, i.e. the material configuration in a forming process. The geometry of the semifinished product is adapted so that the computed spatial configuration corresponds to a prescribed target spatial configuration. Differences between these two configurations are iteratively minimized. The algorithm works noninvasively, thus there is a strict separation between the form update and the finite element (FE) forming simulation. This separation allows the use of arbitrary commercial FEsolvers. In particular, there is no need for a modification of the FE forming simulation, only the material configuration is iteratively updated. A new method is introduced to calculate the difference between the target and the computed spatial configuration. Thereby the target mesh is separated from the mesh for the FE forming simulation, which enables a more accurate and independent representation of the target configuration. In addition, the possibility of taking into account manufacturing constraints in the optimization process is presented. The procedure is illustrated for the example of the first stage of a novel twostage sheetbulk metal forming process.
Introduction
Metal forming processes are distinguished into sheet and bulk metal forming. This classification results from the prevailing stress state of the respective forming operation. Sheet metal forming is characterized by a twodimensional stress state, whereas for bulk metal forming, threedimensional stress states dominate. The recent sheetbulk metal forming (SBMF) process, presented in [1], combines these two basic processes into a single more complex process. The underlying idea is to integrate individual functional elements, manufactured by bulk forming, into a component created by sheet forming. This novel technology is currently investigated with much rigor in a DFG^{Footnote 1}—funded collaborative research project: Manufacturing of complex functional components with variants by using a new sheet metal forming process—SheetBulk Metal Forming (TR73). Within this project in particular tailored blanks are studied, i.e. semifinished products are a priorly adapted to the intended SBMF process. For this purpose, processes for material predistribution are used, see [2].
In this contribution we focus as an example on a twostage forming process from the family of SBMF processes. This process is used to illustrate the procedure of form finding while demonstrating improvements in optimizing more complex geometries and taking into account manufacturing constraints. In general a direct problem is distinguished from an inverse problem, see Chenot et al. [3]. A forming simulation is a direct problem where the material configuration is given and the spatial configuration is sought. If the spatial configuration is prescribed and the material configuration is sought, it represents an inverse problem. According to this classification, illustrated in Fig. 1, form finding in the sense of shape optimization is an inverse problem.
Figure 1 illustrates furthermore the concept of the proposed noninvasive form finding. Accordingly, the optimization cycle starts with an initial material configuration (left, black color) as input for the FE forming simulation. The FE forming simulation itself is carried out independently of the optimization and computes the spatial configuration (right, black color) as a final result. This computed spatial configuration is compared with a target spatial configuration and a suitably defined spatial difference vector is calculated. The algorithm projects the spatial difference vector to the material configuration for the form update. The procedure iteratively minimizes the spatial difference vector. In addition, the algorithm works on a nodebased basis, so that each FE node is taken into account individually for optimization.
The optimization loop is used to determine an optimal semifinished product geometry. The resulting optimized geometry ensures that the desired spatial configuration is achieved for given loading and boundary conditions. During optimization, the FEsolver for the forming simulation is not affected, indeed it is entirely independent from the form finding, thus it is in particular possible to incorporate arbitrary commercial FEsolvers, which is a substantial asset for the industrial application of the algorithm.
The basic approach was first introduced by Landkammer and Steinmann [4]. Various enhancements to improve the algorithm in terms of both accuracy and versatility have been presented in [5, 6]. The focus of our current work is on the further improvement of its stability and robustness. The following developments include two major modifications of the optimization algorithm in order to enhance its applicability to real processes. Recent investigations emphasized a strong dependency of the optimized material position of individual nodes on the respective nodes in the target spatial configuration. This dependency is entirely bypassed by releasing the mesh of the target spatial configuration from that of the FE forming simulation (“Detachment of the target mesh from the mesh of the forming simulation” section). This does not change the type of optimization, but the way of computing the differences between the computed spatial configuration and the target spatial configuration. In addition, a first step is made to consider manufacturability (“Constraining the available design space” section) of the optimization result when manufacturing constraints must be taken into account. The constraint considered here is the available design space for the semifinished product, which is limited by the material predistribution process.
In the following, the basic principles of nonlinear continuum mechanics are briefly reiterated (“Basics of nonlinear continuum mechanics” section). This is followed by the description of the update step for a single node (“Description of an update step” section). The entire algorithm is outlined afterwards. Here, the abovementioned improvements will also be presented. Finally, the procedure is illustrated by an example in “A twostage forming process of a tailored blank” section. The last chapter summarizes the findings.
Basics of nonlinear continuum mechanics
Basics of nonlinear continuum mechanics are reiterated as a preliminary to the derivation of the subsequent algorithm for form finding, whereby the following presentation is limited to some important assumptions. A more detailed description is represented in [7, 8].
Kinematics of the continuous setting
In continuum mechanics, a distinction is made between two configurations of a continuous body: the material configuration \(\mathcal {B}_0\) at time \(t=0\) and the spatial configuration \(\mathcal {B}_t\) at time \(t>0\). Assuming an Euclidean space \(\mathbb {E}^3\) with basis vectors \(\varvec{E}_i\equiv \varvec{e}_i\) and \(i=1,2,3\), these two configurations are represented as illustrated in Fig. 2.
The kinematic relationships between the two configurations include the deformation map, the displacement field and the deformation gradient. The deformation map \(\varvec{\varphi }\) assigns to a position vector \(\varvec{X}\) in the material (undeformed) configuration \(\mathcal {B}_0\) a position vector \(\varvec{x}\) in the spatial (deformed) configuration \(\mathcal {B}_t\):
The displacement field \(\varvec{u}\) results from the difference of the position vectors in the spatial and the material configuration:
The gradient \(\varvec{F}\) of the deformation map with respect to the material coordinates renders a linear map from the material tangent space \(T\mathcal {B}_0\) to the spatial tangent space \(T\mathcal {B}_t\):
Weak form of balance of forces
Due to the dominance of contact forces involved in metal forming processes, body forces are here neglected without loss of generality. Equilibrium is formulated as a boundary value problem:
whereby the corresponding boundary conditions decompose the Dirichlet and Neumann conditions:
The equilibrium equation (Eq. 4) is formulated in terms of the Piola stress \(\varvec{P}\) and results from the balance of forces.
These equations yield a system of PDEs, that is solved based on the principle of virtual power. To this end, virtual displacements \(\delta \varvec{\varphi }\) are introduced. The weak form incorporating the boundary conditions is formulated as follows:
Solving the weak form by applying a FE discretization
In order to solve the weak form in Eq. 6, it is necessary to discretize the continuous body \(\mathcal {B}\) into finite elements.
In the following the same discretization is used for both, the coordinates and the field values. Within the finite element computations, integrals are typically computed by numerical integration, i.e. Gauss quadrature. Finally, efficient iterative solution methods are used to solve the resulting system of nonlinear algebraic equations. For a detailed account on the FEmethod, we refer to [9], among others.
The body \(\mathcal {B}\) is discretized into \(n_\mathrm{elem}\) elements:
Likewise the coordinates in the material and spatial configuration are discretized as:
Within the isoparametric concept, all kinematic quantities are approximated by the same shape functions \(N^i(\varvec{\xi })\) for each element node (\(i = 1 \dots n_\mathrm{en}\)), which are defined on a reference element \(\mathcal {B}_{\square }\) with isoparametric coordinates \(\varvec{\xi } \in [1,1]^{n_\mathrm{dim}}\). The coordinates \(\varvec{X}^e\) and \(\varvec{x}^e\) within an element depend on the nodal positions \(\varvec{X}^i\) and \(\varvec{x}^i\):
The discretized deformation map and deformation gradient follow as:
The material and spatial Jacobian
are used for the mapping from the reference element to the element in the material or the spatial configuration, respectively, the deformation gradient \(\varvec{F}^e\) is thus evaluated by:
Figure 3 show cases a finite element in the material, spatial and reference configuration, respectively.
Description of an update step
The proposed optimization approach is based on the following concept:
Each discretization node on the external boundary of the continuous body has an optimal material position, which leads to the target spatial configuration after applying the forming simulation.
The objective of the optimization is to determine this optimal material position by means of an iteratively repeated optimization step. The mathematical derivation of a single update step is explained below.
The difference between the current spatial position of a design node \(\varvec{x}^D = \varvec{\varphi }(\varvec{X}^D)\) with global node index D and its target spatial position \(\varvec{x}_\mathrm{tg}^D\) defines the spatial difference vector or rather the error of the nodal spatial position:
These differences, calculated for each design node D, are merged into a global objective function:
where by \(\delta ^D\) is denoted the nodal objective function defined by the squared error of a nodal spatial position:
Design nodes contain at least one design coordinate and are located on the external boundary of the geometry. The global objective function contains only the differences of design coordinates. Further coordinates are fixed coordinates, which are restricted by boundary conditions and are therefore not relocated during the update step and the controlled coordinates which are updated by a fictitious elastic problem. Nodes on the external boundary can have both design and fixed coordinates, whereas nodes in the interior of the geometry only contain controlled coordinates. This kind of distinction is commonly used for parameter free (nodebased) optimization procedures and is outlined in more detail in [10].
The column vectors on the left hand side of Eq. 14, \(\mathbf {X}^{\text {D}}\) and \(\mathbf {x}^{\text {D}}\), store all material and spatial positions of the \(n_\mathrm{dsgn}\) design nodes. The optimization approach is summarized in Table 1.
For determining the optimal material positions \(\mathbf {X}^{\text {D}}_\mathrm{opt}\) of all design nodes (and so the corresponding optimal material configuration) the global objective function is minimized with respect to the material coordinates. Thus, the optimal material configuration \(\mathbf {X}^{\text {D}}_\mathrm{opt}\) has to satisfy the stationarity condition:
The iterative update step follows from the approximation of Eq. 16 using a Taylor expansion truncated after the first term. This results in an iteration step as:
Equation 17 represents a global treatment, however we decide to only locally perform the update step of the optimization procedure, so that the new material position of each design node is calculated individually. The update step for each design node is thus written as (note the different fonts for the global \(\mathbf {X}^D\) and the nodewise \(\varvec{X}^D\)):
The update step is necessarily complemented by a linesearch parameter \(\alpha \) which is controlled by ArmijoBacktracking [5] and that ensures a suited update without severe distortion of a single element.
Equation 18 includes the first derivative (Jacobian) and the inverse of the second derivative (Hessian), \({\varvec{J}}{}_{k}^D = \frac{\partial \delta ^D\big (\varvec{X}^D,\varvec{x}_\mathrm{tg}^\mathrm{h}\big )}{\partial \varvec{X}^D} =  {\varvec{F}{}_{k}^D}^\top \cdot \varvec{d}_{k}^D\) and \({{\varvec{H}}{}_{k}^D} = \frac{\partial ^2 \delta ^D\big (\varvec{X}^D,\varvec{x}_\mathrm{tg}^\mathrm{h}\big )}{{\partial \varvec{X}^D}{\partial \varvec{X}^D}}\), respectively, of the local objective function \(\delta ^D\) with respect to the nodal material position \(\varvec{X}^D\). Further transformations result in the update step for the kth iteration:
Here, the first deformation gradient and the Hessian are represented as smoothed quantities \(\tilde{\varvec{F}}\) and \(\tilde{\varvec{H}}\). According to Eq. 12, the gradients are calculated based on the ansatzfunctions evaluated at the Gauss points. However, the update requires values at the design nodes, so that smoothing is required. The values at the Gauss points of the adjoining elements of a design node are smoothed to the corresponding nodal value. Various possibilities for this procedure were also examined in [5]. As suggested by a detailed analysis, the superconvergent patch recovery technique as proposed in [11] is eventually used.
Equation 19 is further converted by approximation of the Hessian matrix. Different Quasi–Newton methods, outlined in [5], serve this purpose. Therein, numerical investigations suggest that the use of the Gauss–Newton approximation works most efficient and sufficiently accurate. With the Gauss–Newton approximation the update step finally reads as:
A noninvasive form finding approach
The special feature of the proposed noninvasive approach is the separation of the forming simulation and the optimization of the material configuration. It enables us to use arbitrary FEsolvers and to apply the optimization approach entirely independent. All required information is transferred by means of subroutines between the FEsolver and the optimization tool. At the end of the update step the new material configuration \(\mathcal {B}_{0k+1}\) is transferred back to the FEsolver. Finally, the forming simulation is restarted. The only information to be exchanged are the material positions of the design, fixed, and controlled nodes, other quantities such as plastic strains and stresses are not exchanged. If by way of example Abaqus is applied as FEsolver, Python and Fortran scripts are used for data exchange, for Marc/Mentat subroutines are usually Fortran as well. The data are transferred in text files individually adapted to the solver. In order to enable the use of additional solvers, the possibilities for data exchange of the respective solver must be taken into consideration. Once the updated material configuration \(\mathcal {\varvec{X}}_{k+1}\) is passed to the solver, the FEproblem is solved without any interference of the optimization algorithm. This kind of separation is denoted the noninvasive approach.
As already mentioned, we distinguish between design, fixed and controlled nodal coordinates. Fixed coordinates belong to a node that is restricted by a Dirichlet boundary condition and therefore remain unchanged during the optimization. The design coordinates are updated by Eq. 20. Independently updating the controlled nodes is firstly proposed in [5]. The update of the design coordinates is specified by the nodal material difference vector \(\varvec{D}_k^D = \alpha {\tilde{\varvec{F}}{}_{k}^D}^{1} \cdot \varvec{d}_{k}^D\) (with \(D=1, \ldots , n_\mathrm{dsgn}\)) for the Dth design node and kth iteration. These nodal material difference vectors are used as prescribed Dirichlet boundary data of a fictitious elastic problem, which is solved once again with the selected FEsolver. The prescribed displacement of the design nodes lead to a relocation and thus update the material positions of the controlled nodes. The fictitious elastic problem has no mechanical relevance regarding the deformation of the material, it is only used to update the controlled coordinates of the FEmesh to the previously determined relocation of the design coordinates. The noninvasive approach with the outlined procedure is pictured in Fig. 4.
Remark
Note that the simulation of the forming process is much more time consuming than the computation of an updated material configuration. For the later introduced example, which is illustrated in Fig. 11b, in combination with the target mesh in Fig. 13b, the computational time decomposes into:

Structure analysis 305 s.

Elastic update 4 s.

Update computation 10 s.
Therefore, the computational cost of the update calculation is negligible and efficiency of the algorithm is not an issue and therefore not considered in detail.
Detachment of the target mesh from the mesh of the forming simulation
The update step outlined in “Description of an update step” section is determined by the nodal differences \(\varvec{d}^{D}\) between the target spatial position of the particular design node \(\varvec{x}^D_\mathrm{tg}\) and its computed spatial position \(\varvec{\varphi }(\varvec{X}^D)\). A challenge arises from the dependence of the spatial position of a design node on its target spatial position that restricts the final material position of the design node. This problem becomes obvious by comparing the optimal material configuration of a simulation of the notch stamping process, outlined in [6, 12], for using two differently discretized target spatial configurations.

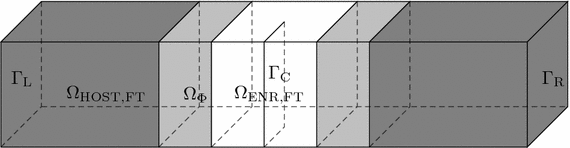

The target configurations to which the respective optimization was aimed are depicted in Fig. 5. It turns out to have a significant influence on the optimal material shape whether the target discretizations Fig. 5a or b is used. Figure 6 shows the setting of a structural analysis with two optimized material configurations. Although both optimizations are based on the target shape, the results differ for the two marked design nodes. This effect occurs despite of both target discretizations render the same shape but varied nodal positions.
The mismatch goes back to the computation of the difference vectors with its dependency on the nodal target positions. The aim is to introduce a novel way of computing the difference vector independently from the position of one particular target node. Indeed, the computation of the update for each design node has only to dependent on the geometry of the target. This offers the opportunity to design a target mesh with a different number of nodes and connectivity compared to that of the forming simulation. The target geometry is discretized by an independent FEmesh with the positions \(\varvec{x}_\mathrm{tgsf}^{j}\) (for \(j=1, \ldots , n_\mathrm{tgsf}\)) for its surface nodes.
The computation of the difference vector is performed in three steps.
I. Projection step
First, the projection step, outlined in Fig. 7b, performs a projection:
A design node of the spatial configuration \(\varvec{x}_k^{i}\) is projected onto the target mesh. Therefore, the two closest target design nodes are determined. The line between these two nodes is part of the target surface. For the difference vector \(\hat{\varvec{d}}_k^i\) of the ith design node the orthogonal projection onto this line is computed as described in Algorithm 1.
II. Reverse check
Second, the reverse check projects:
By using the computed difference vector \(\hat{\varvec{d}}_k^i\) it is ensured that the updated spatial configuration fits to the target surface. However, it is not ensured that every node of the target surface, especially nodes corresponding to a corner, fit to the updated shape of the spatial configuration. This case is illustrated in Fig. 7b for the nodal positions \(\varvec{x}_\mathrm{tgsf}^{{j}}\) of the target configuration. The reverse check is performed by using the updated spatial geometry from the projection step and calculating the projection of every target node \(\varvec{x}_\mathrm{tgsf}^{j}\) (for \(j=1 \ldots n_\mathrm{tgsf}\)) onto this updated geometry.
The projection is performed similarly to the projection in Algorithm 1. However, the target nodes are projected reverse onto the updated spatial configuration. If the magnitude of the projection is bigger than a certain threshold, the difference vector for the reverse step \(\tilde{\varvec{d}}_k^i\) is computed by using the closest updated design node \(\hat{\varvec{x}}_k^i\) and calculating the difference accordingly. Eventually, the used closest spatial design node is updated again.
III. \(90^{\circ }\)corner check
The last part is called the \({\mathbf 90}^{\circ }\)corner check. Within the first two steps a rectangular projection between one node and a straight line between two other nodes is performed. Figure 8 shows a special case of an updated spatial design node which does not fit to the target shape despite the projection and reverse step being already performed. In the case of a rectangular projection onto a straight line corresponding to a \(90^{\circ }\)corner, the update is placed close to the corner, however not onto the corner. Also the reverse check is not able to identify the improper update since the corner is part of the updated geometry. For this case all \(90^{\circ }\)corners of the target shape are identified by a third update whereby \(\bar{\varvec{d}}_k^D\) is calculated for the node closest to the corner.
At the end, the final difference vector for each spatial position of a design node for the kth iteration step is composed by summation:
Update of the material configuration with a limited available design space
Shape optimization often results in a contradiction between a theoretically optimal material configuration and manufacturing constraints. The updated material configuration is computed with Eq. 20, whereby the material difference vector is identified as:
This vector describes the relocation of one design node of the material configuration for the kth iteration step. The vector originates in the spatial configuration and therefore contains only information about the spatial configuration and does not involve information about manufacturing constraints, which potentially limit the external shape of the material configuration. The following approach is the first step to involve manufacturing constraints into the optimization.
Here, the available design space is described by an area (2D). Initially, there is no need to approximate the available design space by nodes and elements. However, we deal with a nodebased optimization approach. Furthermore, a comparison between an updated material configuration and an available design space has analogies to the projectionstep outlined in the previous section. Figure 9 highlights the way of constraining the update to an available design space. The available design space is approximated by an arbitrary number of nodes. A material nodal position \(\varvec{X}^i_{k}\) is supposed to be updated with the material difference vector \(\varvec{D}^i_{k}\). Due to the constraint every updated material nodal position \(\varvec{X}^i_{k+1}\) is enforced to be inside the available design space. In the case of being outside of the available design space, the node is projected onto the available design space boundary. For this projection, the vector \(\hat{\varvec{D}}^i_{k}\) is calculated and used to updated the node \(\varvec{X}^i_{k+1}\) to \(\hat{\varvec{X}}^i_{k+1}\). In the case a node inside the available design space no further update is calculated.
A twostage forming process of a tailored blank
Process description
The optimization process including the independence of the update on one particular nodal position (“Detachment of the target mesh from the mesh of the forming simulation” section) and the constraint by an available design space (“Update of the material configuration with a limited available design space” section) is demonstrated by an example belonging to the collaborative research project TR73. A twostage forming process is performed to a circular blank of 2 mm thickness. Figure 10a shows a cut through the part after the first stage of the combined deep drawing and stamping process. The final shape of the part is displayed in Fig. 10b. The example is a demonstrator that serves for different investigations regarding sheetbulk metal forming operations [1].
In the following, the forming simulation is reduced to a two dimensional axisymmetric analysis. This dimensional reduction drastically decreases the computational cost. The forming simulation is illustrated in Fig. 11a. The blank measures an internal radius of 7 mm and an external radius of 50 mm. Combined with the already mentioned thickness, it ends up with a 43 mm \(\times \) 2 mm axisymmetric plane. This is approximated by 480 fournoded, isoparametric, quadrilateral elements with a fourpoint Gaussian integration. The material data of the deep drawing steel DC04 published in [13] is used. The high hardening capacity and low initial yield strength of the DC04 are typical for cold rolled sheet metal and are working well for large deformations. The used material data belong to the Hockett–Sherby model with isotropic hardening Material details are listed in Table 2.
The forming simulation is based on three tools: the upsetting punch p1, the deepdrawing punch p2 and the deepdrawing ring p3, which are represented as rigid bodies. During the simulation the upsetting punch moves downwards followed by the deepdrawing ring which bends the circular blank. Between the tools and the blank Coulomb friction with an arctangent approximation is used with a friction coefficient of 0.07. The end of the simulation is highlighted in Fig. 11b, whereby the deepdrawing punch is in the lower position. The green pictured area in Fig. 11c is the area which has to be filled by material after deepdrawing. A \(100\%\) form filling would be the best starting position for the second stage of the forming process, the upsetting. During the upsetting the teeth are getting impressed into the deepdrawing ring to end up with the demonstrator displayed in Fig. 10. Figure 11b shows the deformed configuration of the forming simulation. The blank is bended by \(90^{\circ }\) and the deepdrawing ring is in the lowest position. The detailed view in Fig. 11c shows the challenge of form filling, since the edge is not filled with material. However, for the subsequent second step, the upsetting, it would be useful to have a low material flow towards the edge, which is achieved by already completely filling the edge in the first stage. During the upsetting the material flow has to be concentrated to fill the cavities for the teeth, otherwise those will not be completely filled. The experimentally obtained final configuration in Fig. 12 highlights this form filling defect.
The aim of the optimization is thus to adapt the material configuration, so that the deformed configuration ends up with a better form filling at the corner. For the manufacturing process this optimization is realized by a material predistribution step which is part of the overall manufacturing chain. Material predistribution is applied either by a rolling operation or an orbital forming operation. Both operations produce an adapted semifinished product to reach a better form filling. However, the additional height which is generated by the use of predistribution is limited and therefore the maximum available design space is restricted. A detailed description of the manufacturing of tailored blanks in sheetbulk metal forming and the material flow is outlined in [2].
Application of the detached target mesh
Due to the introduced approach to compute the difference vector (“Detachment of the target mesh from the mesh of the forming simulation” section) it is possible to create a target mesh independently of the mesh for the forming simulation, even though the optimization is nodebased. This offers the opportunity to determine the optimal shape and mesh this shape with an arbitrary number of nodes and elements. The applicability of the method is demonstrated by the following example. Figure 13 shows two different target meshes, both represent the same shape. In order to demonstrate the independence of the optimization and the individual positions of a target mesh, the optimal material configuration for the different target meshes is determined. In the case of an equal optimized material configuration the independence from the target mesh is proved. The first target mesh in Fig. 13a consists of 506 nodes and 409 elements, the second (Fig. 13b) of 747 nodes and 647 elements. The detailed views (Fig. 13c, d) show the significant differences in the area of interest. A further benefit of an independent target mesh is the opportunity to use a high resolution for a complex shape even though the mesh for the forming simulation itself is more coarse.
The optimized material configurations depicted in Fig. 14 result from an optimization by the described process in “Process description” section. The configuration in Fig. 14a results from the first target mesh in Fig. 13a, whereas configuration Fig. 14b is computed with the second target mesh in Fig. 13b. Identical results for both material configurations are obtained, obviously there is no difference between the nodes of the shape which has been updated. The identical result is determined by comparing both deformed configurations in Fig. 15 to their respective material configurations and target meshes. There is no significant difference neither in their total equivalent plastic strains nor in the positions of their nodes.
The optimization results in two identically optimized material configurations and deformed configurations for two different and arbitrarily meshed target configurations.
Constraining the available design space
The optimization depicted in Fig. 14 is computed without any constraint related to the available design space. The design nodes are updated by usage of Eq. 20 with its nodal difference vector Eq. 21. The constraint of an available design space is outlined in the following. The predistribution is applied by using orbital forming or rolling. Due to limits of this forming operations a constraint on the maximum additional blank thickness produced by an update step is needed. The space is approximated with an arbitrary number of nodes, elements and outlines the shape of the blank with an additional height of 1 mm. The optimization is performed with the same boundary conditions as outlined in the previous chapter. Figure 16 shows the optimized material configurations. Both configurations belong to the same initial material configuration. However, they have different target meshes as already mentioned previously, which does not cause any differences to the optimization result. Constraining the available design space causes a reduced maximum peak of the material predistribution. Due to the elastic procedure for updating the interior nodes, also the interior nodes are rearranged in a different way compared to the unconstrained optimization. Limiting the optimization result also causes a limit of the accuracy of the computed spatial configuration. Due to the reduced peak, the form filling in the \(90^{\circ }\)corner is reduced compared to the unconstrained results. This side effect is unavoidable, see Fig. 17. However, taking into account the constraint, an optimal shape is still computed by using the advocated form finding approach. The optimization involves a constraint motivated by taking into consideration the manufacturability. The constraint of the available design space is here not specifically adjusted to any realistic conditions. It is a first step towards optimization with forming constraints.
Conclusion
A form finding approach has been introduced for different forming simulations and is demonstrated to be suited and accurate for a variety of sheetbulk metal forming applications. Based on the noninvasive character of the optimization approach it is possible to optimize structures of high complexity with nonlinear material behavior, contact constraints and large deformations. The forward simulation is treated within the optimization as a black box. Only input and output files are transferred. Thus, optimization and simulation codes work independently of one another, i.e. in a noninvasive fashion.
Two further innovations are presented. On the one hand a possibility to define the target mesh independently of the mesh for the forming simulation is proposed. One and the same target mesh can be used to optimize discretized structures of different connectivity and element numbers. It is therefore possible to compare different discretizations directly against each other. In addition, it is guaranteed that the result of the optimization, the nodal positions of the material configuration and the corresponding shape, are independent of the position of a single node of the target configuration and are optimized only with regard to its relevant shape. This procedure is verified by comparing the optimization result obtained with two different target discretizations of the same structural analysis.
Furthermore, a first step is presented to perform optimization with regard to the manufacturability of a product. The final material shape may in some cases meet the requirements of the target shape, but there are often shapes that cause production problems. This problem is circumvented if manufacturing constraints are already considered during the optimization. The result of the optimization is therefore already adapted to the production conditions. The presented limitation of the available design space proves to be practicable, although this innovation is only a small step towards productionoriented optimization. The adaption of this procedure to real processes is part of our ongoing investigations.
