Space–time POD based computational vademecums for parametric studies: application to thermo-mechanical problems

Advanced Modeling and Simulation in Engineering Sciences20185:3

https://doi.org/10.1186/s40323-018-0095-6

Received: 8 March 2017

Accepted: 6 January 2018

Published: 13 February 2018

Abstract

Standard numerical simulations for optimization or inverse identification of welding processes remain costly and difficult due to their multi-parametric aspect and inherent complexity. The aim of this paper is to propose a non-intrusive strategy for building computational vademecums dedicated to real-time simulations of nonlinear thermo-mechanical problems. There is in essence, a set of precomputed space–time parametric solutions (snapshots), selected by an appropriate approach in the parameter space and stored in memory as quasi-optimal reduced bases (RBs) provided by the proper orthogonal decomposition method. Once the RBs are obtained, the computational vademecums can be used online and provide real-time space–time transient nonlinear thermo-mechanical solutions for any desired parameter value. The contributions of the paper consist in a space–time RBs interpolation approach with the Grassmann manifolds method, and a localized multigrid selection method that allows an automatic selection of snapshots in the parameter areas of interest for a given level of accuracy. As application, the welding simulation is considered with a transient non-linear thermo-mechanical model using the finite element method. It is shown that the moving frame allows an optimal design of the RBs. A good efficiency of the proposed approach is demonstrated. Computational vademecums can be used for optimization or inverse identification problems of welding.

Keywords

Computational vademecums PODlocalized multigrid selectionGrassmann manifold interpolation

Introduction

Despite the increasing computer efficiency over the last decades, numerical simulations of welding processes remain prohibitive in terms of CPU time and storage, due to their multi-parametric aspect. To estimate the welding quantities of interest (residual stress, distortion, etc.) depending on different input parameters (typically, the geometry, materials properties, boundary conditions and the imposed loading), larges computations have to be re-run. Thus, the construction of computational vademecums [1] (called also virtual charts [2, 3] or meta-model computations) with standard computations remains a cumbersome task.

The idea of computational vademecums consists in computing at the offline stage general solutions of a parametric problem, so as to make available a database of solutions. Engineers can then use these vademecums at the online phase for design, optimization or identification, etc. Although the offline computation can be costly, it is advantageous to lose time at this stage compared to that earned at online phase, especially in the case of repetitive tasks. This paper focuses on the construction of numerical vademecums and the reduction of the associated costs for a given level of accuracy.

As mentioned earlier, the construction of computational vademecums with standard computations based on full order models for welding simulations is out of reach. It seems important to make use of reduced-order model (ROM) techniques in order to develop models with a minimal number of degrees of freedom.

Reduction methods consist in finding a reduced basis (RB) \(\{\varLambda _i\}_{i=1}^{k}\), with an expected small value of k compared to the number of degrees of freedom of the finite element approximation or to the number of time steps, that spans the subspace of the original solution function \(\text {X}(\mathbf x ,t)\)
$$\begin{aligned} \text {X}(\mathbf x ,t)\approx \sum \limits _{i=1}^{k}{{{\lambda }_{i}}(t){{\varLambda }_{i}}(\mathbf x )} \end{aligned}$$
(1)
Generally speaking, methods for building RBs can be classified into two families: a posteriori approaches and a priori approaches. Either, RBs are built a posterior from snapshots in the parametric space, or a priori (on the fly) during the calculation of the meta-model. A posteriori approaches require prior solutions (the so-called snapshots) precomputed with standard full models and the accuracy of online solutions depends strongly on the quality of RBs computed with snapshots. The proper orthogonal decomposition (POD) method [4], also known as Principal Component Analysis (PCA) [57] and Karhunen–Loeve Transform (KLT) [8, 9], is often employed to build the RBs. It is worthwhile to mention that the computed POD basis is optimal with respect to given measures. This preliminary phase is called the offline phase and can be costly. Such approaches have been applied to tackle many different problems in sciences and engineering [1015]. Their main drawback resides in their inefficiency when one deals with non-linear problems, since the full tangent stiffness matrix needs to be rebuilt.

On the contrary, proper generalized decomposition (PGD) methods [1619], i.e. a priori approaches, assume a priori a separated variable representation and do not require any prior precomputed snapshots to built the RBs. Indeed, the RBs are computed and updated during iteration procedures at the online phase, although they are usually not optimal as it is the case of POD approaches. The proper generalized decomposition is firstly introduced by Ladevèze [20] under the name “radial approximation” in the frame of the LArge Time INcrements (LATIN) method [21], for solving high nonlinear problems. It has been then successfully applied to different problems: visco-plastic problems [2224], transient dynamic problems [25], contact problems [26], etc.

Efficient ROMs lie usually on a mixed approach between a posteriori and a priori approaches. They consist of a reduction step based on POD and an enrichment stage in order to improve the quality of these RBs. Interested readers can be referred to [27] for an enrichment technique originally proposed by Ryckelynck. This approach is of success applied to solve complex fluid flows [28, 29] and speeds up thermomechanical simulations [30, 31].

Recently, Chinesta successfully extended the separated representation, i.e. PGD methods, for solving parametric (and thus multi-dimensional) problems [16, 3234], by adding extra-coordinates, related to model parameters or boundary conditions, to standard space–time solutions, and developed a series of computational vademecums methods for different problems in sciences and engineering such as thermal control of industrial furnaces [35], shape optimization [36], computational surgery [37], etc. These results are very encouraging. The PGD methods make possible efficient simulations of complex high-dimensional problems and the resulting computational vademecums that give real-time responses open numerous possibilities in the context of simulation based engineering, e.g. optimization or inverse identification which is also at the heart of the construction of computational vademecums for welding.

Nevertheless, one relies on the a posteriori POD approaches, because preliminary computed snapshots are sometimes available and it is obviously advantageous to use them for constructing optimal RBs instead of leaving behind the previous knowledge. As encountered in nonlinear problems, recomputing the tangent matrix makes inefficient the standard POD approaches. Although several approaches, e.g. the Discrete Empirical Interpolation Method (DEIM) [38], the hyper-reduction methods [11, 27] and the asymptotic numerical method that allows eliminating the recomputation of the tangent matrix [4, 39, 40], are introduced to accelerate the computations, real time requirements remain intractable. In addition, RBs lack robustness with respect to the variation of parameter value when one deals with parametric problems. In the works of [31], a hyper-reduced model coupled with an interpolation technique [41] based on Grassmann manifolds has been applied for the adaptation of the space RBs to tackle the robustness issue. However computing of the remaining parts (generally the time RBs) is still time-consuming work.

This work presents a methodology to overcome the above issues that go with the a posteriori approaches for space–time nonlinear parametric problems. The space and time RBs are both adapted by intensive use of the Grassmann manifolds interpolation. The recomputing of stiffness tangent matrix online can be then avoided. Once the snapshots are computed offline, there is no computation anymore and thus real-time parametric responses at online phase can be expected both in space and time. Furthermore, this approach is not intrusive, which can make available existing industrial software for different problems.

A challenge in the field of constructing the computational vademecums is the control of accuracy. Accurate solutions will be provided by computational vademecums when the retained snapshots are engendered with large training parameter. However, exhaustive generation of the RBs, at the expense of the expensive cost of the offline phase, is not possible. Unlike the PGD based computational vademecums that generate possible solutions by offline computations combined with a greedy algorithm [4245], a posteriori approaches need adaptation step at the online stage in order to well control the error associated to the RBs for parametric studies. This paper proposes a methodology, based on a localized “multi-grid” approach (in the parameter space), allowing a quasi-optimal computational vademecum (quasi-optimal RB for a given level of accuracy), that provides reliable solutions.

The purpose of the strategy is to construct a space–time (4 dimensional) “computational vademecums” with controlled error for welding problems. To this end, the concerned transient nonlinear thermo-mechanical problem is presented in “Thermo-mechanical formulation” section. A brief review of model reduction techniques is proposed in “Design of reduced basis” section. The adaptation approach dedicated to parametric studies is detailed in “ROM adaptation for parametric studies” section. An academic example of welding is studied in terms of reducibility aspect in “Reducibility of welding simulations” section. In “Quasi-optimal computational vademecums with error control-application to welding simulations” section the quasi-optimal computational vademecums are built. Finally, This paper is closed by some remarks in “Conclusion” section.

Thermo-mechanical formulation

In this section, a standard Lagrange formulation for transient nonlinear thermo-elasto-plastic problems is presented. More particularly, an alternative formulation in the moving frame is considered. For the application in welding processes, a sequentially coupled thermo-mechanical analysis is performed. The temperature is assumed to be independent on the mechanical fields.

Thermal analysis

Let us consider a material domain \(\varOmega \) of density \(\rho \), specific heat capacity C, and conductivity tensor \(\mathbf k \), with an initial temperature field \(T_0\). The body \(\varOmega \) is subjected to a heat source \(r \), a prescribed temperature \(\overline{T}\) over the subspace \(\partial {\varOmega }^{T}\) and a surface flux \(\overline{\text {q}}\) on the complementary subspace \(\partial {\varOmega }^\mathbf{q }\) (\(\partial \varOmega =\partial {\varOmega }^\mathbf{q } \cup \partial {\varOmega }^{T}\)). Denoting by \(\theta =T-T_0\) the difference of temperature between the actual and initial states, the governing equations, boundary and initial conditions to be satisfied by the thermal problem read as follows:
$$\begin{aligned} \begin{aligned} {\left\{ \begin{array}{ll} \rho C\frac{d\theta (\mathbf X ,t)}{dt}+\text {div}\ \mathbf q (\mathbf X ,t) = r(\mathbf X ,t) \\ \mathbf q (\mathbf X ,t)=- \ \mathbf k \cdot \ \nabla \theta (\mathbf X ,t) \\ \mathbf q (\mathbf X ,t) \cdot \mathbf n (\mathbf X ,t)=\overline{\text {q}}(\mathbf X ,t)\quad \text {on}\ \partial {\varOmega }^\mathbf{q } \\ \theta (\mathbf X ,t)=\overline{\theta }(\mathbf X ,t)\quad \text {on}\ \partial {\varOmega }^{T} \\ \theta (\mathbf X ,t=0)=0 \end{array}\right. } \end{aligned} \end{aligned}$$
(2)
where “div \(\bullet \)” (resp. “\(\nabla \ \bullet \)”) is the divergence (resp. gradient) operator with respect to the initial position X and d\(\bullet \)/dt the material time derivative.

In order to improve the computational efficiency for processes with moving heat loading like welding, [46, 47] have proposed to solve thermal problems in moving frame, where the heat flux is fixed in space and the material flows through a reference configuration. Indeed, it is shown that for welding problems the quasi-state transient thermal problem can be simplified to a steady-state problem in a such configuration [47].

In this system, the reference can be considered fixed in space and time. The material configuration is moving with respect to the reference configuration. The reference configuration is a control volume \(\tilde{\varOmega }\) to be defined through which the material flows. At any given time t, the coordinate \(\mathbf x \) (with respect to the material configuration) of a material point which occupied the initial position \(\mathbf X \) at initial time in \(\varOmega \) can be given by a smooth motion mapping f:
$$\begin{aligned} \mathbf x =f(\mathbf X ,t) \end{aligned}$$
(3)
Hence, the material time derivative in the flowing body reads:
$$\begin{aligned} \frac{d\theta (\mathbf x ,t) }{dt}=\frac{\partial \theta (\mathbf x ,t) }{\partial t}+\mathbf v . \nabla \theta (\mathbf x ,t) \end{aligned}$$
(4)
where \(\frac{\partial \theta (\mathbf x ,t) }{\partial t}\) represents the local temperature variation over time, \(\mathbf v =\frac{d\mathbf x }{dt}\) is the velocity vector which depends on the mapping f and \(\mathbf v . \nabla \theta (\mathbf x ,t) \) is the advection term.
By replacing this derivative expression in the previous Eq. (2), the heat equation defined in the control volume \(\tilde{\varOmega }\) is expressed as:
$$\begin{aligned} \text {div}\ \mathbf q (\mathbf x ,t)+\rho C\frac{\partial \theta (\mathbf x ,t)}{\partial t}+\rho C\mathbf v .\nabla \theta (\mathbf x ,t)=r(\mathbf x ,t) \end{aligned}$$
(5)
For steady-state processes, the local temperature variation over time in the control volume can be neglected [47], which yields to:
$$\begin{aligned} \text {div}\ \mathbf q (\mathbf x ,t)+\rho C\mathbf v .\nabla \theta (\mathbf x ,t)=r(\mathbf x ,t)\quad \text {with}\ \frac{\partial \theta (\mathbf x ,t) }{\partial t}=0 \end{aligned}$$
(6)
It should be notified that the solutions are solved in the control volume \(\tilde{\varOmega }\), where boundary conditions (BCs) are not defined and should be chosen in an appropriate way to approximate original solutions in the fixed frame. Recently, similar use of moving reference is proposed for thermal analysis within a computational framework of Vademecum-based GFEM [48]. In this method, boundary conditions of the control volume are not needed to impose, because they are treated as extra-coordinates and considered in general cases. But it is not the case of this paper.

Mechanical analysis

The mechanical analysis is carried in the fixed frame, although the thermal analysis can be performed in the moving frame. In this case, a reverse of change of variables is particularly used for obtaining the representation of thermal temperature in the fixed frame:
$$\begin{aligned} \theta (\mathbf X ,t)=\theta (f^{-1}(\mathbf x ),t) \end{aligned}$$
(7)
Otherwise, special techniques such as streamline integration [49, 50] must be employed for dealing with this problem.
For the mechanical problems, the displacement and transformation are small. Hence the governing equations are solved on the undeformed initial material configuration. Then, the infinitesimal strain tensor \(\varvec{\varepsilon }\) is linked to the displacement field \(\mathbf u \) by the linearized relationship:
$$\begin{aligned} \varvec{\varepsilon }=\nabla _s \mathbf u (\mathbf X ,t) \end{aligned}$$
(8)
where \(\nabla _s\) denotes the symmetric gradient operator. The total strain \(\varvec{\varepsilon }\) is the sum of elastic, plastic and thermal strains denoted by \(\varvec{{\varepsilon }}_{e}\), \(\varvec{{\varepsilon }}_{p}\), \(\varvec{{\varepsilon }}_{\theta }\) respectively, and only the elastic strain contributes to the Cauchy stress \(\varvec{\sigma }\) , i.e.
$$\begin{aligned} \varvec{\sigma }(\mathbf X ,t) =\mathbf D :\varvec{{\varepsilon }}_{e}(\mathbf X ,t) =\mathbf D :(\varvec{\varepsilon }(\mathbf X ,t) -\varvec{{\varepsilon }}_{p}(\mathbf X ,t)-\varvec{{\varepsilon }}_{\theta }(\mathbf X ,t)) \end{aligned}$$
(9)
where D denotes the fourth order elasticity tensor and \(\varvec{{\varepsilon }}_{\theta }=\alpha \theta \mathbf I \) (\(\mathbf I \) is the second-order identity tensor) results from thermal expansion, \((\bullet :\bullet )\) is the double-contracted product.
Considering the domain \(\varOmega \) subjected to a body force \(\mathbf f \) with prescribed forces \(\overline{\mathbf{F }}\) and displacement \(\overline{\mathbf{u }}\) on boundaries \(\partial {\varOmega }^\mathbf{F }\) and \(\partial {\varOmega }^\mathbf{u }\) respectively (\(\partial \varOmega =\partial {\varOmega }^\mathbf{F } \cup \partial {\varOmega }^\mathbf{u }\)), static elasto-plastic analysis consists in seeking the admissible fields \(\varvec{\sigma }\), \(\mathbf u \) and \(\varvec{{\varepsilon }}_{p}\) satisfying the following balance equations and boundary conditions:
$$\begin{aligned} \begin{aligned} {\left\{ \begin{array}{ll} \text {div}\ \varvec{\sigma }(\mathbf X ,t)+\mathbf f (\mathbf X ,t)=0\\ \varvec{\sigma }(\mathbf X ,t) \cdot \mathbf n (\mathbf X ,t)=\overline{\mathbf{F }}(\mathbf X ,t)\quad \text {on}\ \partial {\varOmega }^\mathbf{F } \\ \mathbf u (\mathbf X ,t)=\overline{\mathbf{u }}(\mathbf X ,t)\quad \text {on}\ \partial {\varOmega }^\mathbf{u } \end{array}\right. } \end{aligned} \end{aligned}$$
(10)
with a complementary plastic behavior law, e.g. the associative \({J}_{2}\) plasticity theory incorporated with an isotropic hardening R reads:
$$\begin{aligned} \begin{aligned} {\left\{ \begin{array}{ll} f(\varvec{\sigma },\text {p})=\parallel {{\varvec{\sigma }}_{d}}\parallel -{\sigma }_{y}-\text {R}(\text {p})\\ {\dot{\varvec{\varepsilon }}_p}=\mathscr {H}(f)\frac{<{{\varvec{\sigma }}_{d}}:{{{\dot{\varvec{\sigma }}}}_{d}}>}{\text {R}g}\frac{{{\varvec{\sigma }}_{d}}}{\parallel {{\varvec{\sigma }}_{d}}\parallel } \end{array}\right. } \end{aligned} \end{aligned}$$
(11)
where \({\sigma }_{y}\) denotes the initial yield stress, \(\mathscr {H}(\bullet )\) the Heaviside function, \({\varvec{\sigma }}_{d}\) the deviatoric stress tensor, \(\langle {A} \rangle \) the positive part of A, p the equivalent plastic strains and \(g=\frac{d\text {R}}{d\text {p}}\).

Weak formulation of the thermo-elasto-plastic problem

The principle of virtual work is employed to develop the weak forms of governing equations and the boundary conditions. Denoting by \({H}^{1}(\varOmega )\) the variational first order Sobolev space, the transient thermal problem defined in the fixed frame has the variational description:
$$\begin{aligned} \begin{aligned} {\left\{ \begin{array}{ll} \text {find}\ \theta \in \varTheta \ \text {such}\ \text {that}\\ \int _{\varOmega }{\rho C\dot{\theta }{{\theta }^{*}}d\varOmega +\int _{\varOmega }{\nabla \theta .\mathbf k .\nabla {{\theta }^{*}}}d\varOmega +\int _{\partial {{\varOmega }^\mathbf{q }}}{\overline{\text {q}}{{\theta }^{*}}ds=\int _{\varOmega }{r{{\theta }^{*}}d\varOmega }\quad \forall {{\theta }^{*}}\in {{\varTheta }_{0}}}}\\ \text {with}\quad \varTheta =\left\{ \theta (\mathbf X ,t)|\theta (\mathbf X ,t)\in {H}^{1}(\varOmega ),{\theta |}_{\partial {\varOmega }^{\theta }}=\overline{\theta }\right\} \\ {\varTheta }_{0}=\left\{ {\theta }^{*}(\mathbf X ,t)|{\theta }^{*}(\mathbf X ,t)\in {H}^{1}(\varOmega ),{{\theta }^{*}|}_{\partial {\varOmega }^{\theta }}=0\right\} \end{array}\right. } \end{aligned} \end{aligned}$$
(12)
The transient thermal problem defined in the moving frame is expressed as:
$$\begin{aligned} \begin{aligned} {\left\{ \begin{array}{ll} \text {find}\ \theta \in \tilde{\varTheta }\ \text {such}\ \text {that}\\ \int _{{\tilde{\varOmega }}}{\rho C \left( \frac{\partial \theta }{\partial t}+\mathbf v . \nabla \theta \right) {{\theta }^{*}}d\tilde{\varOmega }+\int _{{\tilde{\varOmega }}}{\nabla \theta .\mathbf k .\nabla {{\theta }^{*}}d\tilde{\varOmega }}+\int _{\partial {{{\tilde{\varOmega }}}^\mathbf{q }}}{\overline{\text {q}}{{\theta }^{*}}ds=\int _{{\tilde{\varOmega }}}{r{{\theta }^{*}}d\tilde{\varOmega }}\quad \forall {{\theta }^{*}}\in {{\tilde{\varTheta } }_{0}}}}\\ \text {with}\quad \tilde{\varTheta }=\left\{ \theta (\mathbf x ,t)|\theta (\mathbf x ,t)\in {H}^{1}(\tilde{\varOmega }),{\theta |}_{\partial {\tilde{\varOmega }}^{\theta }}=\overline{\tilde{\theta }}\right\} \\ {\tilde{\varTheta }}_{0}=\left\{ {\theta }^{*}(\mathbf x ,t)|{\theta }^{*}(\mathbf x ,t)\in {H}^{1}(\tilde{\varOmega }),{{\theta }^{*}|}_{\partial {\tilde{\varOmega }}^{\theta }}=0\right\} \end{array}\right. } \end{aligned} \end{aligned}$$
(13)
In the same way, the steady-state problem formulation is obtained by neglecting the variation of temperature, i.e. \(\frac{\partial \theta }{\partial t}=0\):
$$\begin{aligned} \int _{{\tilde{\varOmega }}}{\rho C\mathbf v . \nabla \theta {{\theta }^{*}}d\tilde{\varOmega }+\int _{{\tilde{\varOmega }}}{\nabla \theta .\mathbf k .\nabla {{\theta }^{*}}d\tilde{\varOmega }}+\int _{\partial {{{\tilde{\varOmega }}}^\mathbf{q }}}{\overline{\text {q}}{{\theta }^{*}}ds=\int _{{\tilde{\varOmega }}}{r{{\theta }^{*}}d\tilde{\varOmega }}\quad \forall {{\theta }^{*}}\in {{\tilde{\varTheta } }_{0}}}} \end{aligned}$$
(14)
The weak formulation in Lagrangian description for the static mechanical problem reads:
$$\begin{aligned} \begin{aligned} {\left\{ \begin{array}{ll} \text {find}\ \mathbf u \in {\mathscr {U}}\ \text {such}\ \text {that}\\ -\int _{\varOmega }{\varvec{\sigma }(\mathbf u ) :\varvec{\varepsilon }({\mathbf{u }^{*}})d\varOmega +}\int _{\varOmega }\mathbf{f .{\mathbf{u }^{*}}d\varOmega +}\int _{\partial {{\varOmega }^\mathbf{F }}}{\bar{\mathbf{F }}.{\mathbf{u }^{*}}ds=0\quad \forall }{\mathbf{u }^{*}}\in {{\mathscr {U}}_{0}}\\ \text {with}\quad \mathbf u \in {\mathscr {U} },\ \mathscr {U}=\left\{ \mathbf u (\mathbf X ,t)|\mathbf u (\mathbf X ,t)\in {H}^{1}(\varOmega ),\mathbf{u |}_{\partial {\varOmega }^\mathbf{u }}=\overline{\mathbf{u }}\right\} \\ {\mathscr {U}}_{0}=\left\{ \mathbf{u }^{*}(\mathbf X ,t)|\mathbf{u }^{*}(\mathbf X ,t)\in {H}^{1}(\varOmega ),{\mathbf{u }^{*}|}_{\partial {\varOmega }^\mathbf{u }}=0\right\} \end{array}\right. } \end{aligned} \end{aligned}$$
(15)

Finite element semi-discretized formulation

For numerical implementation, the space \(H^1(\varOmega )\) is replaced by finite dimensional subspace (subspace of shape function). The semi-discretized problem associated to the transient heat load reads:
$$\begin{aligned} \mathbf{K }_{th}\varvec{\theta }(t) +\mathbf C \dot{\varvec{\theta } }(t) =\mathbf Q (t) \end{aligned}$$
(16)
where \(\mathbf{K }_{th}\) and \(\mathbf C \) are the usual thermal conductivity and capacity matrices, \(\varvec{\theta }\) and \(\mathbf Q \) are respectively the nodal temperature and external flux vector.
In the moving frame configuration, the semi-discretized equation has a similar form:
$$\begin{aligned} {\tilde{\mathbf{K }}}_{th}\tilde{\varvec{\theta }}(t) +\tilde{\mathbf{C }}\dot{\tilde{\varvec{\theta }} }(t) =\tilde{\mathbf{Q }}(t) \end{aligned}$$
(17)
where \(\tilde{(\bullet )}\) denotes the quantity defined in the control volume \(\tilde{\varOmega }\). The difference from the usual thermal conductivity matrix in (16) consists in a modified thermal conductivity matrix with an additive advection term:
$$\begin{aligned} {\tilde{\mathbf{K }}}_{th}=\sum \limits _{elements}(\mathbf B _{th}^{T} \mathbf k {\mathbf{B _{th}}}+\mathbf N ^{T} \rho C\mathbf{v }^{T} \mathbf B _{th}) \end{aligned}$$
(18)
where the \(\mathbf B _{th}\) and \(\mathbf N \) are the usual matrices respectively for temperature gradient and interpolation of the element temperature \(\theta \).
The mechanical solutions are given when the following residual vanishes:
$$\begin{aligned} \begin{aligned} {\left\{ \begin{array}{ll} \mathbf R (\mathbf U (t) )=\mathbf{F }_{ext}(\mathbf U (t) )-\mathbf{F }_{int}(\mathbf U (t) )\\ \text {with}\quad \mathbf{F }_{ext}(t) =\int _{\varOmega }\mathbf{N ^{T}\mathbf f \ d\varOmega }+\int _{\partial {{\varOmega }^\mathbf{F }}}\mathbf{N ^{T}\bar{\mathbf{F }}}\ ds\\ \mathbf{F }_{int}(t) =\int _{\varOmega }\mathbf{B _{m}^{T}.\varvec{\sigma }\ d\varOmega }\\ \end{array}\right. } \end{aligned} \end{aligned}$$
(19)
where \(\mathbf U \) is the nodal displacement vector, \(\mathbf{F }_{ext}\) and \(\mathbf{F }_{int}\) are respectively the associated external and internal force vectors. \(\mathbf B _{m}\) is the usual matrix for displacement gradient.

This residual problem can be solved with the Newton–Raphson scheme and incorporated with the radial return mapping algorithm for plasticity flows. The transient thermal problem is solved by a first order time integrator.

State vector of the thermo-mechanical problem

The state vector corresponds to the minimal vector needed for storing the space–time history of all the thermal and mechanical fields. It is the only data vector one keeps at the end of the FE computations. The necessary memory for the storage completely depends on the size of \(\text {X}\). Therefore, the state vector should be chosen so that its size is as small as possible.

For the transient thermo-elasto-plastic problem, the state vector can be defined as:
$$\begin{aligned} \text {X}(\mathbf X ,t)={{\left\{ \theta ,\mathbf U , \varvec{{\varepsilon }}_{p}, \varvec{\sigma }, \text {p} \right\} }^{T}} \end{aligned}$$
(20)
An alternative state vector when the thermal analysis is performed in moving frame reads:
$$\begin{aligned} \text {X}(\mathbf X ,t)={{\left\{ \tilde{\theta } ,\mathbf U , \varvec{{\varepsilon }}_{p}, \varvec{\sigma }, \text {p} \right\} }^{T}} \end{aligned}$$
(21)
Moreover, the state variables are represented in an approximate way with the compression tools. The concerning model reduction methods and space–time separated variable representation are presented in the next section.

Design of reduced basis

This section presents the generation of the reduced basis (RB) using the popular POD method. Among the various techniques for obtaining a reduced basis, POD constructs a RB that is optimal in the sense that a certain approximation error concerning the snapshots is minimized. Thus, the space spanned by the basis from POD often gives an excellent low-dimensional approximation.

Snapshot proper orthogonal decomposition

Given a set of snapshots \(\text {X}=\{\text {X}({t}_{1}),...,\text {X}({t}_{m})\} \in {{\mathbb {R}}^{n\times m}}\), the POD method seeks an orthogonal projector \({{\varvec{{\varPi }}}_{\varvec{{\varPhi }},\varvec{{\varPhi }}}}=\varvec{{\varPhi }}{{\varvec{{\varPhi }}}^{T}}\) that minimizes the summed projection error:
(22)
It can be proved that the solution of the previous minimization problem can be provided by the Singular Value Decomposition (SVD) of the space–time snapshot \(\text {X}\):
$$\begin{aligned} \text {X}=\varvec{{\varPhi }}\varvec{\Sigma }{\mathbf{V }^{T}} \end{aligned}$$
(23)
where \(\varvec{{\varPhi }}=[{{\varvec{{\varPhi }}}^{(1)}},\ldots ,{{\varvec{{\varPhi }}}^{(n)}}]\in {{\mathbb {R}}^{n\times n}}\) and \(\mathbf V =[{\mathbf{V }^{(1)}},\ldots ,{\mathbf{V }^{(m)}}]\in {{\mathbb {R}}^{m \times m}}\) are orthogonal and respectively the so-called space and time bases. And \(\varvec{\Sigma }\in {{\mathbb {R}}^{n\times m}}\) contains positive singular values \(\sigma _{i}\) (with \(i\le r=\min (n, m)\)) in decreasing amplitudes. Then the optimal solution of (22) is \({\varvec{{\varPhi }}}_{K}=\{{{\varvec{{\varPhi }}}^{(i)}}\}|_{i=1,\dots ,k}\) (with \(k\le r\)). The minimum 2-norm error [51] from the approximated snapshots using the POD basis is then given by:
$$\begin{aligned} \displaystyle \Vert \text {X}-{{\varvec{{\varPi }}}_{{{\varvec{{\varPhi }}}_{K}},{{\varvec{{\varPhi }}}_{K}}}}\text {X}\Vert _F=\sqrt{\sum \nolimits _{i=k+1}^{r}{\sigma _{i}^{2}}} \end{aligned}$$
(24)
where \(\parallel \bullet \parallel _F\) denotes the Frobenius norm.

Generally, k is chosen in such a way that a great compression is gained as far as the amount of the RB to store is concerned and the corresponding low rank approximation is sufficiently accurate. One adopts the following definition:

Definition 1

k-compressibility

A space–time field is said to be k-compressible if the number of the space–time modes needed to obtain the solution within a given tolerance is k.

ROM adaptation for parametric studies

Reduced bases often lack robustness with respect to parameter variations and updating of snapshots. This section tackles the actualization of the RB for parametric studies. A local interpolation strategy based on the Grassmann manifolds interpolation is presented and will be applied in our case to the adaptation of both the space and time RBs.

Grassmann manifolds interpolation

Let \(\mathbf{Y }_{0}\in {\mathbb {R}}^{p \times k}\), where \(k\le p\), denote a full-rank orthogonal matrix associated with a POD-basis. The matrix naturely belongs to the so-called compact Stiefel manifold [52, 53] \( ST (k,p)\) , which is defined as the set of all \(p\times k\) orthonormal matrices. Besides, the columns of \(\mathbf{Y }_{0}\) form a basis of the subspace \({ S }_{0}\) of dimension k in \({\mathbb {R}}^{p}\). This subspace \({S}_{0}\) belongs to the Grassmann manifold [52, 53] \( G (k,p)\) which is defined as the set of all k-dimensional subspaces of \({\mathbb {R}}^{p}\). Generally, each k-dimensional subspace \({ S }\) can be viewed as a point of \( G (k,p)\) at which there exists a tangent space of the same dimension [52, 53]. This tangent space, denoted by \( T \), is a “flat” space in which interpolation can be performed as usual [41] and can be represented by a matrix \(\varvec{\Gamma }\in {\mathbb {R}}^{p\times k}\).

Let \( y (t)\) be a geodesic path uniquely defined by its initial and final points \( y _0, y _1\) \(\in G (k,p)\) or initial point and velocity \( y (0)= y _0, \dot{ y }(0)=\dot{ y }_0 \in T \), the exponential mapping is defined as the final extremity point, which maps a tangent space to the manifold itself \( G (k,p)\)[52, 54]:
$$\begin{aligned} \displaystyle \text {Exp}_{ y _0}(\dot{ y }_0)= y (1)= y _1 \end{aligned}$$
(25)
The inverse map, known as the logarithmic map, permits the back mapping from a point of the manifold to the tangent space.
$$\begin{aligned} \displaystyle \text {Log}_{ y _0}({ y }_1)=\dot{ y }_0 \end{aligned}$$
(26)
Fig. 1

Manifold-based interpolation vs direct interpolation

Different analytic formulas for exponential and logarithmic mappings of matrix manifolds can be found in [55]. Coupled with a standard interpolation in the tangent space, exponential and logarithmic mappings allow defining a manifold-based interpolation (Fig. 1).

In the case of Grassmann manifold, a computational framework for this interpolation has been proposed in [41]. Given a set of RBs \(\mathbf{Y }_{i}|_{i=0,n}\in {\mathbb {R}}^{p\times k}\) precomputed at different operating points \({ S }_{i}|_{i=0,n}\) (corresponding to different parameter values \({s}_{i}|_{i=0,n}\)), the geodesic of the Grassmann manifold, to which the subspace \({ S }_{i}\) spanned by the RBs belong, can be described by the following equation [52, 56]:
$$\begin{aligned} \ddot{\mathbf{Y }}+\mathbf Y {{({\mathbf{Y }^{T}}\mathbf Y )}^{-1}}{{\dot{\mathbf{Y }}}^{T}}\dot{\mathbf{Y }}=0\quad \text {with}\quad \mathbf{Y }^{T}\mathbf Y =\mathbf I \end{aligned}$$
(27)
In the same manifold, the following procedure permits the adaptation of the available RBs to a new operating point \({ S }\) for a value s different from \({s}_{i}\).
Let \( S _{0}\) be the origin point, the tangent space spanned by the columns of \(\varvec{\Gamma }_i\) at this point is given by the logarithmic map [57]:
$$\begin{aligned}&(\mathbf I -{\mathbf{Y }_{0}}\mathbf Y _{0}^{T}){\mathbf{Y }_{i}}{{(\mathbf Y _{0}^{T}{\mathbf{Y }_{i}})}^{-1}}=\tilde{\mathbf{U }}\tilde{\varvec{\Sigma }}{{\tilde{\mathbf{V }}}^{T}}\quad \text {(Thin SVD)} \end{aligned}$$
(28)
$$\begin{aligned}&\varvec{\Gamma }_i =\tilde{\mathbf{U }}{{\tan }^{-1}}(\tilde{\varvec{\Sigma }}){{\tilde{\mathbf{V }}}^{T}} \end{aligned}$$
(29)
The usual interpolation in this plane is then performed by calculating the FE basis \(N_i\) in the parameter space:
$$\begin{aligned} N_i= & {} \prod \limits _{i\ne j}{\frac{s -{{s }_{j}}}{{{s }_{i}}-{{s }_{j}}}} \end{aligned}$$
(30)
$$\begin{aligned} \varvec{\Gamma }_N= & {} \sum \limits _{i=0}^{n}{N_i\varvec{\Gamma }_i} \end{aligned}$$
(31)
where \(\varvec{\Gamma }_N\) can be viewed as the mapping point of \({ S }\) in the tangent space having \({ S }_{0}\) as origin point. Herein a special case of 1D FE interpolation is presented. The application to 2 or 3 dimensional parameter cases is straightforward. More generally, a multivariate interpolation scheme (e.g [58, 59]) can be used for multi-parameter cases.
The exponential map returns the adapted RB, which reads:
$$\begin{aligned} \varvec{\Gamma }_N= & {} \tilde{\mathbf{U }}_{N}\tilde{\varvec{\Sigma }}_N{{\tilde{\mathbf{V }}_N}^{T}}\quad \text {(Thin SVD)} \end{aligned}$$
(32)
$$\begin{aligned} \mathbf Y (s)= & {} \left[ {\mathbf{Y }_{0}}\tilde{\mathbf{V }}_N\cos (\tilde{\varvec{\Sigma }}_N )+\tilde{\mathbf{U }}_N\sin (\tilde{\varvec{\Sigma }}_N ) \right] {{\tilde{\mathbf{V }}_N}^{T}} \end{aligned}$$
(33)
where \({{\tilde{\mathbf{V }}_N}^{T}}\) appears to guaranty the homogeneity of unity. In standard POD-Garlerkin models, the homogeneity for the interpolated basis is often abandoned (e.g [31, 41]), since:
$$\begin{aligned} \displaystyle y (s)=\text {span} \left( {\mathbf{Y }_{0}}\tilde{\mathbf{V }}_N\cos (\tilde{\varvec{\Sigma }}_N )+\tilde{\mathbf{U }}_N\sin (\tilde{\varvec{\Sigma }}_N ) \right) \end{aligned}$$
(34)
In those models, only the space RB is interpolated for adaptation of the solution subspace, the homogeneity can be therefore abandoned. The loss of homogeneity is compensated by solving the equilibrium equation with FE computations when computing the remaining part (usually the time RB). Herein, keeping the homogeneity of interpolated bases is a crucial point and should be respected, since there is no resolution of equilibrium equation for computing the time RB in the proposed method (both space and time RBs are interpolated in the Grassmann manifold).
A simplified form is obtained when there are only two RBs that are taken into account. Equations from (29) to (32) can be reduced to one equation:
$$\begin{aligned} \mathbf Y (s)=\left[ {\mathbf{Y }_{0}}\tilde{\mathbf{V }}\cos \left( \frac{s -{{s }_{0}}}{{{s }_{1}}-{{s }_{0}}}{{\tan }^{-1}}(\tilde{\varvec{\Sigma }} )\right) +\tilde{\mathbf{U }}\sin \left( \frac{s -{{s }_{0}}}{{{s }_{1}}-{{s }_{0}}}{{\tan }^{-1}}(\tilde{\varvec{\Sigma }} )\right) \right] {{\tilde{\mathbf{V }}}^{T}} \end{aligned}$$
(35)
Finally, It should be mentioned that the above computational framework is a special case of one varied parameter. We refer the readers to [41, 52] for more details about the general case.

Space–time bases adaptation

Given two space–time solutions \({\text {X}}_{0}(\mathbf X ,t)\) and \(\text {X}_{1}(\mathbf X ,t)\) pre-computed for two different parameter values \({\mu }_{0}\) and \({\mu }_{1}\) respectively, then the POD basis is provided by SVD:
$$\begin{aligned} {\text {X}}_{0}={\varvec{{\varPhi }}}_{0} {\varvec{\Sigma }}_{0} {\mathbf{V }_{0}^{T}} \end{aligned}$$
(36)
$$\begin{aligned} {\text {X}}_{1}={\varvec{{\varPhi }}}_{1} {\varvec{\Sigma }}_{1} {\mathbf{V }_{1}^{T}} \end{aligned}$$
(37)
where the space and time bases are respectively \({{\varvec{{\varPhi }}}_{i}|}_{i=0,1}\) and \({\mathbf{V }_{i}|}_{i=0,1}\). The new basis \(\{\varvec{{\varPhi }}(\mu ), \mathbf V (\mu )\}\) corresponding to a new parameter value \(\mu \in \left[ {\mu }_{0},{\mu }_{1}\right] \) can be both obtained by interpolations using the previous Grassmann manifolds interpolation method (see Algorithm 1). As mentioned before, homogeneity of unity with respect to \({{\varvec{{\varPhi }}}_{i}|}_{i=0,1}\) and \({\mathbf{V }_{i}|}_{i=0,1}\) should be kept here when interpolating the new basis \(\varvec{{\varPhi }}(\mu )\) and \(\mathbf V (\mu )\) , otherwise new solutions combined with these interpolated bases loss homogeneity with respect to \({\text {X}}_{i}|_{i=0,1}\).
The singular value matrix \(\varvec{\Sigma }(\mu )\) can be directly interpolated with FE method, which yields to
$$\begin{aligned} \varvec{\Sigma }(\mu )=\sum _i N_i(\mu ){{\varvec{\Sigma }}_{i}} \end{aligned}$$
(38)
with \(N_i(\mu )\) is the FE basis in the parameter space.
Finally, the new solution \(\text {X}(\mathbf X ,t)\) corresponding to the new parameter value \(\mu \) can be then obtained by the combination of the interpolated matrices:
$$\begin{aligned} \text {X}={\varvec{{\varPhi }}}(\mu ) {\varvec{\Sigma }}(\mu ) {\mathbf{V }^{T}(\mu )} \end{aligned}$$
(39)

Remark 1

Contrary to standard POD-Galerkin models, the proposed approach does not require new transient nonlinear FE computations with respect to the new parameter value. The space and time bases are both interpolated using Grassmann manifold interpolation, which signifies that the variables homogeneity must be retained throughout interpolations. It can be highlighted that this interpolation-based procedure presents high efficiency in terms of time-cost. This provides a practical framework for parametric studies with low cost time computations as it will be shown hereinafter, even for transient nonlinear problems.

Remark 2

Application of the proposed approach to a 2D/3D parametric case can be simply carried out by employing the corresponding FE basis in Eqs. (31) and (38) for interpolation.

Remark 3

Due to the nature of the manifold-based interpolation, the solution rebuilt with this approach presents a notably better accuracy compared to a space–time adaptation with standard Lagrange interpolation methods. This point will be illustrated in the next part.

Local interpolation strategy

The space–time adaptation of the RB highly depends on the generated snapshots in the parameter space. In order to pre-compute the snapshots with a small number of trial points and a high fidelity, a local controlled error strategy is developed. Considering a transient nonlinear thermo-mechanical problem, the prior known solutions, corresponding to different parameter values \({\mu }_{i=1,\text {n}}\in {\left[ \mu _{1},\mu _{\text {n}}\right] }\), are pre-computed with full FE method. The POD snapshots \(\varvec{{\varPhi }}_i, \varvec{\Sigma }_i, \mathbf V _i\) are provided by the truncated SVD method according to a k-compressibility criterion.

Note that while the local interpolation is performed for the space and time bases, the singular value matrix can be interpolated globally, i.e.
$$\begin{aligned} \Sigma =\sum \limits _{i=1}^{n}{\bigg (\prod \limits _{i\ne j}{\frac{\mu -{{\mu }_{j}}}{{{\mu }_{i}}-{{\mu }_{j}}}\bigg ){{\Sigma }_{i}}}} \end{aligned}$$
(40)

Remark 4

Though a global interpolation can indeed improve the accuracy of the rebuilt solution, the space and time bases are interpolated locally in view of the numerical cost increasing in the online phase and for the interpolation scheme stabilization.

Comparison with traditional interpolation methods

In order to show the efficiency of the proposed interpolation method, two examples of comparison are depicted in this section. As the first example, the comparison is performed between traditional methods and the proposed method for interpolating the seperated RBs. With two snapshots appropriately drawn in a 1D parameter space, the resulting equivalent plastic strain fields (recombined with the interpolated RBs) are illustrated in Fig. 2. Compared with that obtained from full FE computations, the proposed approach can provide a good approximation (with a standard 2-norm error less than \(1\%\)). However, the Lagrange interpolation fails to interpolate RBs for new parameter values, the resulting solution shows a global error about \(17\%\). Indeed, the RBs interpolated with traditional interpolation methods loss orthogonality (which should be guaranteed for POD-bases), while this property can be kept when using the proposed manifold-based interpolation.
Fig. 2

Equivalent plastic strain field comparisons [reference calculations (a) and online Lagrange (b and d) and Grassmann (c and e) interpolation]. a Solution from full FE computations. b Solution rebuilt by RBs interpolated with the Lagrange interpolation. c Solution rebuilt by RBs interpolated with the proposed method. d Local error resulted from RBs interpolated with the Lagrange interpolation. e Local error resulted from RBs interpolated with the proposed method

Fig. 3

Snapshots and assessment points in the 1D parameter space of \({C_p}\)

The second example consists in comparing the Grassmann interpolation with traditional methods that interpolate straightforwardly solutions stemming form FE computations (direct interpolation of snapshots). Given two snapshots calculated for two extremity values in the parameter space of thermal capacity \(\mu :{C_p}\in \left[ 432,\,900 \right] \left( \text {J} \cdot \text {kg}^{-1} \cdot \text {K}^{-1}\right) \) (see Fig. 3), the state variables are then interpolated for seven selected intermediate parameter values (called assessment points) using two different methods: piecewise linear interpolation and proposed manifold-based interpolation. Figure 4 depicts the standard 2-norm error at assessment points for both thermal and mechanical variables interpolated with these two methods. It shows that the proposed manifold-based method improves more or less the quality of interpolated solutions both in thermal and mechanical cases with respect to piecewise linear interpolation. This can be explained by the fact that the proposed method takes into account the evolution of solutions at different time which may improve the interpolation accuracy. In addition, the proposed approach seems more suitable for nonlinear cases. As shown in Fig. 4, for the thermal problem, the proposed method improves only slightly the precision, while remarkable improvement can be observed in mechanical cases.

This confirms the efficiency of the proposed method with respect to the traditional interpolation methods, when only two snapshots are given. The comparison for higher order cases with more snapshots points in the parameter space is not taken into account here, since only local interpolation strategy is considered in our cases (see Algorithm 2).
Fig. 4

Interpolation error for some assessment points in the parameter space (traditional piecewise linear interpolation vs proposed manifold-based interpolation). a Error of temperature field. b Error of displacemen field. c Error of stress field. d Error of plastic strain field

Remark 5 For the stability of methods, the space and time bases are interpolated mode by mode in the above examples.

Reducibility of welding simulations

In this section, a numerical model of welding is presented. For that purpose, a 3D nonlinear thermo-mechanical model with a moving heat source is considered. The approach based on the moving frame, presented in the previous section, is applied to analyze this model. The reducibility of the problem is studied through a SVD analysis.

Welding finite element model

The work-piece with prescribed boundary conditions is shown in Fig. 5. The heat source moves along the line of symmetry. The used material properties as well as the load parameters are given in Table 1. All the material properties are assumed independent on the temperature.

Fig. 5

Welding work-piece: geometry and boundary conditions

Table 1

Material properties and load data

Notation

Name

Values

\({C_p}\)

Specific heat capacity

\(432\ \text {J} \cdot \text {kg}^{-1} \cdot \text {K}^{-1}\)

\(\lambda \)

Thermal conductivity

\(46\ \text {W} \cdot \text {m}^{-1} \cdot \text {K}^{-1}\)

\(\alpha \)

Thermal expansion

\(1.2\times 10^{-5}\ \text {K}^{-1}\)

E

Young’s modulus

\(210\times 10^9\ \text {Pa}\)

\(\nu \)

Poisson ratio

0.3

\(\sigma _y\)

Initial yield stress

\(300\times 10^{6}\ \text {Pa}\)

H

Linear isotropic hardening parameter

\(21\times 10^9\ \text {Pa}\)

Q

Heat flux

\(8\times 10^6\ \text {W}\cdot \text {m}^{-2}\)

\(\text {V}\)

Velocity of loading

\(0.001\ \text {m}\cdot \text {s}^{-1}\)

Fig. 6

Problem definition with boundary conditions. a Half model. b FE mesh

Table 2

Geometry parameter of FE model

\(\mathbf L _\mathbf{x } \)(m)

\(\mathbf L _\mathbf{y }\)(m)

\(\mathbf L _\mathbf{z }\)(m)

E.T.

E.N.

N.N.

G.N.

0.3

0.1

0.02

CUB8 (P1)

7200

9317

8

E.T. element type, E.N. element number, N.N. node number, G.N. Gauss point number per element

Since the problem (geometry, material, loading, BCs) is x–z plane symmetric, only one half of the actual problem is modeled Fig. 6a. The mesh characteristics are presented in Table 2.

Concerning the analysis in the moving frame, the control volume is defined as a domain of 0.25 m long (see Fig. 7), in which the material flows through with the same constant velocity as loading in the X direction. The laser can be therefore viewed as a fixed loading in the control volume and is located 0.09 m from the inlet boundary. The inlet boundary is prescribed with the initial temperature \(\theta _0=0\), while the outlet boundary is prescribed with zero heat flux. The relation between the initial position of a material point and its actual position (3) can be written as:
$$\begin{aligned} \mathbf x =\mathbf X +\mathbf v t\quad \text {with}\ \mathbf v =\text {V}{} \mathbf e _x \end{aligned}$$
(41)

Reducibility of problem

The investigation of the problem reducibility is performed for the components of the state vector X defined in the previous section with a SVD analysis. For comparison purpose, the thermal solution (i.e. \(\theta \) or \(\tilde{\theta }\)) is solved in both the fixed and moving frames. In the sequel, the following definitions are used:

Definition 2

Relative SVD error

According to the Eckart–Young’s theorem [51], a relative error between the snapshot matrix X and the truncated SVD \(\hat{\text {X}}\) accounting k modes is given by:
$$\begin{aligned} \displaystyle \varepsilon _{k} (\text {X})=\frac{\parallel \text {X}-\hat{\text {X}} \parallel _{F}}{\parallel \text {X}\parallel _F}=\frac{\parallel \text {X}-{{\varvec{{\varPi }}}_{{{\varvec{{\varPhi }}}_{K}},{{\varvec{{\varPhi }}}_{K}}}}\text {X} \parallel _{F}}{\parallel \text {X}\parallel _F}=\frac{\sqrt{\sum \nolimits _{i=k+1}^{r}{\sigma _{i}^{2}}}}{\sqrt{\sum \nolimits _{i=1}^{r}{\sigma _{i}^{2}}}} \end{aligned}$$
(42)
Fig. 7

Control volume with boundary conditions

Definition 3

Energy SVD error estimator

A global space–time energy estimator \(\mathscr {E}_k\) can be defined for a state vector X (or one field of this state vector) through an integration over the time interval of a space-norm of X, e.g:
$$\begin{aligned} \begin{aligned} {\left\{ \begin{array}{ll} E_k(\hat{\mathbf{U }})=\frac{1}{2}\int _{0}^{T}{\hat{\mathbf{u }}(t). \hat{\mathbf{u }}(t)dt}=\frac{1}{2}\sum \nolimits _{i=1}^{k}{\sigma _{i}^{2}}\\ \mathscr {E}_k(\hat{\mathbf{U }})=\frac{E_k}{E_{tot}}=1-\varepsilon ^2_{k} \end{array}\right. } \end{aligned} \end{aligned}$$
(43)

where \(\hat{\mathbf{U }}\) designates a low rank approximation for the displacement field \(\mathbf U \in \mathbb {R}^{n\times m}\), \(E_k\) defines a cumulative associated energy with k modes and \(\mathscr {E}_{k}\) denotes a energy indicator with respect to the total associated energy \(E_{tot}\) which is equal to 1 when \(k=r=min(n,m)\).

Definition 4

Reducibility condition

In this analysis, a field is assumed to be reducible if the number of needed modes for its k-compressibility is less than \(20\%\) of the total number of modes r, i.e. \(\frac{k}{r}<20\%\).

Fig. 8

Modes contribution for \(\theta \) (top) and \(\tilde{\theta }\) (bottom). a Transient state solution in the fixed frame. b Transient state solution in the moving frame. c Steady state solution in the moving frame

Fig. 9

Modes contribution for mechanical variables. a Modes contribution for \(\mathbf U \). b Modes contribution for \(\varvec{\sigma }\). c Modes contribution for \(\varvec{{\varepsilon }}_{p}\). d Modes contribution for \(\text {p}\)

Similarly, an energy error indicator can be defined for the thermal field. As shown in Fig. 8, for the transient state solutions, more than 50 modes are required to satisfy a energy ratio of \(99.99\%\) corresponding to a relative error of \(1\%\) in fixed frame, while only 3 modes are needed to capture the same energy in the moving frame, this amount can be reduced again to 1 with a steady state assumption in the moving frame. The reducibility of this thermal problem is significantly improved in the moving frame, since the thermal field is 3-compressible whereas it is 50-compressible in the fixed frame. Figure 9 illustrates the application of SVD analysis to the mechanical problem solved in the fixed frame. A truncation energy of \(99.99\%\) requires less than 30 modes for each of these mechanical state variables, which makes the reducibility condition be satisfied.

The moving load and flowing heat flux induce the non-reducibility of the thermal problem in the fixed frame. Whereas the resolution in the moving frame, which makes the moving load be fixed in reference configuration, leads to an hyper-reducible model. Furthermore, only one mode left with steady state assumption is required in our case. Contrary to the thermal problem, the mechanical problem is reducible in the fixed frame. Indeed, the mechanical field does not diffuse and is located in the domain of laser torch, while this is not the case for the temperature field that diffuses over time.

Thus, in order to guaranty the optimality of the RBs in the construction of computational vademecums of this welding model, the thermal problem is solved independently with a steady-state assumption in the moving frame. The mechanical problem is solved in the fixed frame. Finally, the state vector X is chosen as:
$$\begin{aligned} \text {X}={{\left\{ \tilde{\theta } ,\mathbf U , \varvec{{\varepsilon }}_{p}, \varvec{\sigma }, \text {p} \right\} }^{T}} \end{aligned}$$
(44)

Quasi-optimal computational vademecums with error control-application to welding simulations

This section tackles the precision problem of computational vademecums. A multigrid based method is proposed to control the error produced in the construction of computational vademecums by Grassmann manifolds interpolation. Finally, the computational vademecums with error control are built based on the above welding model. In the following, the considered error is measured with respect to High Fidelity FE Models (HFM) and model discretization errors are not taken into account [44].

Reduced basis error indicator

Given \(\text {X}_{\text {ROM}}\ \in \mathbb {R}^{n\times m}\) rebuilt with the approach proposed in “ROM adaptation for parametric studies” section, a reduced basis error indicator with respect to HFM is then defined as:
$$\begin{aligned} \mathscr {\epsilon }(\text {X})=\frac{\parallel \text {X}_{\text {ROM}}(t_m)-\text {X}_{\text {HFM}}(t_m)\parallel _2}{\parallel \text {X}_{\text {HFM}}(t_m)\parallel _2} \end{aligned}$$
(45)
where \((\bullet )(t_m)\) denotes the solution at the final time step and \(\text {X}_{\text {HFM}}\) the solution computed with HFM.

This definition can be similarly applied to a state variable in the state vector. Note that the defined \(\mathscr {\epsilon }\) is a summation of the SVD-mode truncation and RB interpolation errors. The SVD-mode truncation error depends on the truncation order k chosen in such a way that the error is lower than \(1\%\). The interpolation error depends on the accuracy of the RB adaptation method and the location of pre-computed snapshots in the parameter space. The multigrid based method presented hereafter gives an automatic choice of the snapshots locations (i.e. choice of the parameter sampling points) in the parameter space in order to control and optimize the RB error.

Localized multigrid selection method

It is clear that an exhaustive generation of snapshots in the parameter space can ensure a reliable solution rebuilt by interpolation. However, the resulting offline time-cost is too much expensive. Herein, an efficient multigrid selection method that allows local refinements in the parameter space is presented.

For simplification purpose, only two parameters are considered: \(\mu \in D _{\mu }, \xi \in D _{\xi }\). We start by the coarse first-order grid, given by the four snapshots associated to the four corners of the parameter space \( D = D _{\mu }\times D _{\xi }\). The error indicator \(\mathscr {\epsilon }\) is then calculated at the assessment point located in the center of the subspace. The grid is refined only when the error for that point is greater than a critical value, by adding other snapshots to the second-order grid. The quality of the refined grid is assessed by the error indicator at each center of these sub-domains. The refinement is carried out until the error reaches the prescribed accuracy. The refinement algorithm is outlined in Algorithm 4. Figure 10 shows an example of localized refinement in a two dimensional parameter space. The above method can be extended to more than two parameters. Grid refinements should be specific to each one of state variables.

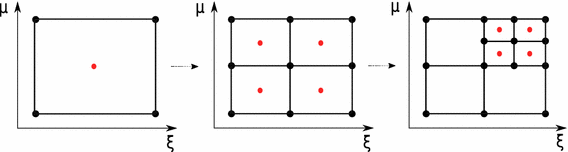

Fig. 10

Successive localized refinements for a 2D parameter space

Fig. 11

Localized multigrid refinement in the 1D parameter space: the final sampling points obtained by the final grid are \( \{432,\ 490.5,\ 549,\ 666,\ 783,\ 900 \}\)

Table 3

Illustration of parameter refinement

Grid order

Corners of the grid

Assessment points

Error (\(\varvec{\varvec{\sigma }}_\mathbf{VM}\)) (\(\mathbf{\%}\))

Error test

1

432, 900

666

4.89

0

2

432, 666

549

1.5

0

2

666, 900

783

1.21

0

3

432, 549

490.5

1.19

0

3

549, 666

607.5

0.97

1

3

666, 783

724.5

0.93

1

3

783, 900

841.5

0.98

1

4

432, 490.5

461.25

0.80

1

4

490.5, 549

519.75

0.75

1

4D\(\otimes \)1D thermal computational vademecum

An application of the proposed method to construct computational vademecums is presented herein. The notation 4D\(\otimes \)1D means that solutions provided by the vademecums is 4D (in physical space: \(\varOmega \times \left[ 0\ t_m\right] \)) and the concerned parameter space is 1D. Parametric studies are performed with respect to the thermal capacity \(C_p(\text {J} \cdot \text {kg}^{-1} \cdot \text {K}^{-1})\,\in D =\left[ 432,\,900\right] \). The quantity of interest is chosen as residual stress induced by welding, represented here by von Mises stress. In order to satisfy a level of accuracy of \(1\%\), the localized multigrid refinement in the parameter space is shown in Fig. 11. Table 3 reports the corresponding errors at assessment points for each refinement order. As one can see, the final sampling points that should be taken into account for an accuracy of \(1\%\) are \( \{432,\ 490.5,\ 549,\ 666,\ 783,\ 900 \} \).

The prescribed accuracy is satisfied after two successive refinements. A computational vademecum with an error of \(1\%\) with respect to parameter variation for the residual stress is thus developed. The full space–time solution can then be obtained for any value in the parameter interval. Similar analysis can be done for the other state variables of the state vector X.
Fig. 12

Demonstrator of Space–time \(computational\ vademecum\) developed in matlab

A demonstrator has been programmed for the visualization of the resulting space–time (4D) computational vademecum (see Fig. 12). One recalls that there is no FE computation at the online phase. Interpolating a new space–time solution with the proposed adaptation approach is done in real time. CPU time for the thermo-mechanical fields of a new parameter is less than 0.1 s, whereas it takes about 7 h to perform a full FE computations with a single processor (see Table 4). Although the offline CPU time for constructing the snapshots may be expensive, it will reduce much more time in the use of the computational vademecum at the online phase for computing parametric solutions with optimization or identification purpose. Furthermore, the necessary memory to perform the online interpolation is less than 500 Mb in this example. It means that the computational vademecum can be used either with a laptop or even a smartphone.
Table 4

CPU time for a new solution

Phase

Proposed approach (6 snapshots, error \(< 1\%\))

Standard FEM

Offline

\(\approx 42 \ \text {h}\)

Online

\(<0.2\ \text {s}\)

\(\approx 7 \ \text {h}\)

Fig. 13

Space–time yield stress computational vademecum

4D\(\otimes \)1D mechanical computational vademecum

A similar computational vademecum is made for a mechanical parameter: the material initial yield stress \(\varvec{\sigma }_y\) (MPa) \(\in D =[300,\ 500]\). The minimal set of snapshots that should be taken into account for building the computational vademecum (see Fig. 13) with an error smaller than \(2\%\) is obtained by the sampling points \(\{\)300, 350, 400, 450, 500\(\}\) (see Table 5). The online space–time response is given in real time with a high computation time reduction (Table 6). Optimal memory storage is obtained by space–time separated variable representation of the RBs.
Table 5

RB errors of von Mises stress and plastic strain

Corners of the grid

Assessment points

Error (\(\varvec{\varvec{\sigma }}_\mathbf{MV }\)) (\(\mathbf{\%}\))

Error (p) (\(\mathbf{\%}\))

300, 350

325

1.82

1.62

350, 400

375

1.97

1.73

400, 450

425

1.89

1.65

450, 500

475

1.73

1.90

Table 6

CPU time and memory (yield stress computational vademecum)

Phase

CPU time (5 snapshots, error \(<2\%\))

Memory

Full calculations

\(\approx 35\) h

10 Gb

RB storage

100 Mb

Online

\(<0.2\) s

\(<500\) Mb

Fig. 14

Snapshots (black circles) selected in the 2D parameter space

Table 7

RB errors of von Mises stress and plastic strain in the 2D parameter space

Assessment points

Error (\(\varvec{\sigma }_{VM}\)) (\(\%\))

Error (p) (\(\%\))

(549, 350)

4.51

5.68

(783, 350)

4.45

5.09

(783, 450)

5.62

6.49

(490.5, 425)

2.57

1.92

(607.5, 425)

2.52

2.02

(607.5, 475)

2.65

2.24

(490.5, 475)

2.67

2.71

Fig. 15

Space–time 2D computational vademecum

4D\(\otimes \)2D computational vademecum

Let \( D = D_{C} \times D_{\sigma } \) be a 2D parameter space with \(C_p(\text {J} \cdot \text {kg}^{-1} \cdot \text {K}^{-1})\in D_{C} =\left[ 432,\ 900\right] \) and \(\varvec{\sigma }_y\) (MPa) \(\in D_{\sigma } =[300,\ 500]\). This time, parametric studies are considered in the square 2D-domain \( D \). The snapshots selected by the proposed approach are shown in Fig. 14 for an guaranteed error smaller than \(7\%\) (see Table 7). A 4D\(\otimes \)2D computational vademecum (Fig. 15) is thus constructed. Only two refinements are needed to satisfy the error condition. Limited memory is required for storing the RB snapshots. Parametric space–time solutions can be provided by the 2D interpolation in real time (see Table 8).

Computational vademecum for real-time process control of welding

Let us consider a welding problem with a moving thermal load at a constant velocity over the work-piece with a possible change of input power at mi-time \(\frac{t_f}{2}\) (see Fig. 16). In order to control the quality of welded piece and make real-time decisions to adapt \(Q_1\) and \(Q_2\), real-time simulations are required.
Table 8

CPU time and memory (4D\(\otimes \)2D computational vademecum)

Phase

CPU time (14 snapshots, error \(<7\%\))

Memory

Full calculations

\(\approx 98\) h

10 Gb

RB storage

220 Mb

Online

\(<0.5\) s

\(<500\) Mb

Fig. 16

Front sight of 3D welding with variable loading power

Fig. 17

Evolution of stress during the welding for \(Q_1=8.5, Q_2=11.5 \left( \times 10^6\ \text {W}.\text {m}^{-2} \right) \). a \(\text {t}=47.5 \ s\). b \(\text {t}=122.5 \ s\). c \(\text {t}=210 s\). d \(\text {t}=290 \ s\)

Assuming that \(Q_i|_{i=1,2} \in [8\ 12] \times 10^6\ \text {W} \cdot \text {m}^{-2}\), the real-time computational vademecum is then constructed using the proposed approach in the 2D parameter space for an error less than \(5\%\). Real time solutions are obtained for any value of input power in the parameter space. As depicted in Fig. 17, one can modify the input power according to the real-time evolution of stress, here is an example obtained for \(Q_1=8.5, Q_2=11.5 \left( \times \ 10^6\ \text {W} \cdot \text {m}^{-2} \right) \). The online use of computational vademecum can help engineers make real time decisions for the input power of welding to control the quality of work-pieces.

Conclusion

Quasi-optimal space–time computational vademecum dedicated to parametric studies of welding process is constructed with a non-intrusive strategy. The reducibility of the full transient thermo-elasto-plastic model is studied by SVD analysis. It is shown that the reducibility of the transient thermal problem is significantly improved when the RBs are pre-computed in the moving frame. The proposed approach is based on a space–time Grassmann manifold interpolation of the reduced bases. This ensures high level of efficiency and accuracy for real time simulations and significantly reduces the high cost of computations for parametric studies. Furthermore, a localized multigrid selection method is presented. It leads to an appropriate selection of the sampling points in the parameter space that guarantee the accuracy of the space–time computational vademecum. Thus, the exhaustive generation of snapshots in the parameter space is avoided.

The proposed approach is applied to a 3D transient non-linear thermo-mechanical welding model with a moving heat Source. space–time computational vademecums are obtained for a given quantity of interest (residual stress), for both thermal and mechanical parametric studies. Excellent results have been obtained for the RBs accuracy, memory storage and the online phase computations (real time). Indeed, online phase CPU time is less than 0.5s and limited memory storage is required with a guaranteed acceptable error. As one of applications of the computational vademecum (parametric solutions), fast identification of problem parameters can be straightforwardly expected. In addition, real time process control can be expected as well by considering loading-related parameters.

Extension to multiparametric (high-dimensional) analysis is in progress with application to industrial software. In this case, the main challenge will be the development of a strategy sampling efficiently the parameter space for high-dimensional problems.

Declarations

Author's contributions

All authors have prepared the manuscript. All authors read and approved the final manuscript.

Acknowledgements

The authors gratefully acknowledge AREVA and SAFRAN for funding of this work within the framework of the “Life extension and manufacturing processes” teaching and research Chair.

Competing interests

The authors declare that they have no competing interests.

Availability of data and materials

Not applicable.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Funding

Not applicable.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
CNRS UMR5259, INSA-Lyon, LaMCoS, Univ Lyon, Villeurbanne, France

References

  1. Chinesta F, Leygue A, Bordeu F, Aguado J, Cueto E, González D, Alfaro I, Ammar A, Huerta A. Pgd-based computational vademecum for efficient design, optimization and control. Arch Comput Methods Eng. 2013;20(1):31–59.MathSciNetView ArticleMATHGoogle Scholar
  2. Courard A, Néron D, Ladeveze P, Andolfatto P, Bergerot A. Virtual charts for shape optimization of structures. In: 2nd ECCOMAS Young investigators conference (YIC 2013). 2013.Google Scholar
  3. Vitse M, Néron D, Boucard PA. Virtual charts of solutions for parametrized nonlinear equations. Comput Mech. 2014;54(6):1529–39.MathSciNetView ArticleMATHGoogle Scholar
  4. Niroomandi S, Alfaro I, Cueto E, Chinesta F. Model order reduction for hyperelastic materials. Int J Numer Methods Eng. 2010;81(9):1180–206.MathSciNetMATHGoogle Scholar
  5. Hotelling H. Analysis of a complex of statistical variables into principal components. J Educ Psychol. 1933;24(6):417.View ArticleMATHGoogle Scholar
  6. Loeve M. Probability theory, the university series in higher mathematics. NJ: Princeton University Press; 1960.Google Scholar
  7. Lorenz EN. Empirical orthogonal functions and statistical weather prediction. Cambridge, USA: Massachusetts Institute of Technology; 1956.Google Scholar
  8. Karhunen K. Über lineare Methoden in der Wahrscheinlichkeitsrechnung. Helsinki: Universitat Helsinki; 1947.MATHGoogle Scholar
  9. Loève M. Probability theory: foundations, random sequences. New York: D. Van Nostrand Company; 1955.MATHGoogle Scholar
  10. Fritzen F, Böhlke T. Three-dimensional finite element implementation of the nonuniform transformation field analysis. Int J Numer Methods Eng. 2010;84(7):803–29.MathSciNetView ArticleMATHGoogle Scholar
  11. Hernández J, Oliver J, Huespe AE, Caicedo M, Cante J. High-performance model reduction techniques in computational multiscale homogenization. Comput Methods Appl Mech Eng. 2014;276:149–89.MathSciNetView ArticleGoogle Scholar
  12. Holmes P, Lumley JL, Berkooz G. Turbulence, coherent structures, dynamical systems and symmetry. Cambridge: Cambridge university press; 1998.MATHGoogle Scholar
  13. Kerfriden P, Gosselet P, Adhikari S, Bordas SPA. Bridging proper orthogonal decomposition methods and augmented newton-krylov algorithms: an adaptive model order reduction for highly nonlinear mechanical problems. Comput Methods Appl Mech Eng. 2011;200(5):850–66.MathSciNetView ArticleMATHGoogle Scholar
  14. Kunisch K, Volkwein S. Galerkin proper orthogonal decomposition methods for parabolic problems. Numerische mathematik. 2001;90(1):117–48.MathSciNetView ArticleMATHGoogle Scholar
  15. Yvonnet J, He QC. The reduced model multiscale method (r3m) for the non-linear homogenization of hyperelastic media at finite strains. J Comput Phys. 2007;223(1):341–68.MathSciNetView ArticleMATHGoogle Scholar
  16. Chinesta F, Ammar A, Cueto E. Recent advances and new challenges in the use of the proper generalized decomposition for solving multidimensional models. Arch Comput Methods Eng. 2010;17(4):327–50.MathSciNetView ArticleMATHGoogle Scholar
  17. Chinesta F, Cueto E. PGD-based modeling of materials, structures and processes. Berlin: Springer; 2014.View ArticleGoogle Scholar
  18. Chinesta F, Ladeveze P, Cueto E. A short review on model order reduction based on proper generalized decomposition. Arch Comput Methods Eng. 2011;18(4):395–404.View ArticleGoogle Scholar
  19. Ladeveze P, Passieux JC, Néron D. The latin multiscale computational method and the proper generalized decomposition. Comput Methods Appl Mech Eng. 2010;199(21):1287–96.MathSciNetView ArticleMATHGoogle Scholar
  20. Ladevèze P. Sur une famille d’algorithmes en mécanique des structures. Comptes rendus des séances de l’Académie des sciences. Série 2, Mécanique-physique, chimie, sciences de l’univers, sciences de la terre. 1985;300(2):41–4.Google Scholar
  21. Ladevèze P. Nonlinear computational structural mechanics: new approaches and non-incremental methods of calculation. New York: Springer; 2012.Google Scholar
  22. Boisse P, Bussy P, Ladeveze P. A new approach in non-linear mechanics: the large time increment method. Int J Numer Methods Eng. 1990;29(3):647–63.View ArticleMATHGoogle Scholar
  23. Cognard JY, Ladevèze P. A large time increment approach for cyclic viscoplasticity. Int J Plast. 1993;9(2):141–57.View ArticleMATHGoogle Scholar
  24. Relun N, Néron D, Boucard P. A model reduction technique based on the pgd for elastic-viscoplastic computational analysis. Comput Mech. 2013;51(1):83–92.MathSciNetView ArticleMATHGoogle Scholar
  25. Boucinha L, Gravouil A, Ammar A. Space–time proper generalized decompositions for the resolution of transient elastodynamic models. Comput Methods Appl Mech Eng. 2013;255:67–88.MathSciNetView ArticleMATHGoogle Scholar
  26. Giacoma A, Dureisseix D, Gravouil A, Rochette M. A multiscale large time increment/fas algorithm with time-space model reduction for frictional contact problems. Int J Numer Methods Eng. 2014;97(3):207–30.MathSciNetView ArticleMATHGoogle Scholar
  27. Ryckelynck D. A priori hyperreduction method: an adaptive approach. J Comput Phys. 2005;202(1):346–66.MathSciNetView ArticleMATHGoogle Scholar
  28. Ammar A, Ryckelynck D, Chinesta F, Keunings R. On the reduction of kinetic theory models related to finitely extensible dumbbells. J Non-Newtonian Fluid Mech. 2006;134(1):136–47.View ArticleMATHGoogle Scholar
  29. Chinesta F, Ammar A, Falco A, Laso M. On the reduction of stochastic kinetic theory models of complex fluids. Model Simul Mater Sci Eng. 2007;15(6):639.View ArticleGoogle Scholar
  30. Chinesta F, Ammar A, Lemarchand F, Beauchene P, Boust F. Alleviating mesh constraints: model reduction, parallel time integration and high resolution homogenization. Comput Methods Appl Mech Eng. 2008;197(5):400–13.MathSciNetView ArticleMATHGoogle Scholar
  31. Zhang Y, Combescure A, Gravouil A. Efficient hyper reduced-order model (HROM) for parametric studies of the 3D thermo-elasto-plastic calculation. Finite Elem Anal Des. 2015;102:37–51.MathSciNetView ArticleGoogle Scholar
  32. Ammar A, Mokdad B, Chinesta F, Keunings R. A new family of solvers for some classes of multidimensional partial differential equations encountered in kinetic theory modeling of complex fluids. J Non-Newtonian Fluid Mech. 2006;139(3):153–76.View ArticleMATHGoogle Scholar
  33. Ammar A, Mokdad B, Chinesta F, Keunings R. A new family of solvers for some classes of multidimensional partial differential equations encountered in kinetic theory modelling of complex fluids. Part ii: Transient simulation using space-time separated representations. J Non-Newtonian Fluid Mech. 2007;144(2):98–121.View ArticleMATHGoogle Scholar
  34. Pruliere E, Chinesta F, Ammar A. On the deterministic solution of multidimensional parametric models using the proper generalized decomposition. Math Comput Simul. 2010;81(4):791–810.MathSciNetView ArticleMATHGoogle Scholar
  35. Ghnatios C, Masson F, Huerta A, Leygue A, Cueto E, Chinesta F. Proper generalized decomposition based dynamic data-driven control of thermal processes. Comput Methods Appl Mech Eng. 2012;213:29–41.View ArticleGoogle Scholar
  36. Ammar A, Huerta A, Chinesta F, Cueto E, Leygue A. Parametric solutions involving geometry: a step towards efficient shape optimization. Comput Methods Appl Mech Eng. 2014;268:178–93.MathSciNetView ArticleMATHGoogle Scholar
  37. Niroomandi S, González D, Alfaro I, Bordeu F, Leygue A, Cueto E, Chinesta F. Real-time simulation of biological soft tissues: a pgd approach. Int J Numer Methods Biomed Eng. 2013;29(5):586–600.MathSciNetView ArticleGoogle Scholar
  38. Chaturantabut S, Sorensen DC. Nonlinear model reduction via discrete empirical interpolation. SIAM J Sci Comput. 2010;32(5):2737–64.MathSciNetView ArticleMATHGoogle Scholar
  39. Niroomandi S, Alfaro I, Cueto E, Chinesta F. Real-time deformable models of non-linear tissues by model reduction techniques. Comput Methods Programs Biomed. 2008;91(3):223–31.View ArticleGoogle Scholar
  40. Niroomandi S, Alfaro I, Cueto E, Chinesta F. Accounting for large deformations in real-time simulations of soft tissues based on reduced-order models. Comput Methods Programs Biomed. 2012;105(1):1–12.View ArticleGoogle Scholar
  41. Amsallem D, Farhat C. Interpolation method for adapting reduced-order models and application to aeroelasticity. AIAA J. 2008;46(7):1803–13.View ArticleGoogle Scholar
  42. Maday Y, Patera AT, Turinici G. A priori convergence theory for reduced-basis approximations of single-parameter elliptic partial differential equations. J Sci Comput. 2002;17(1–4):437–46.MathSciNetView ArticleMATHGoogle Scholar
  43. Maday Y, Rønquist EM. A reduced-basis element method. J Sci Comput. 2002;17(1–4):447–59.MathSciNetView ArticleMATHGoogle Scholar
  44. Rozza G, Huynh DBP, Patera AT. Reduced basis approximation and a posteriori error estimation for affinely parametrized elliptic coercive partial differential equations. Arch Comput Methods Eng. 2008;15(3):229–75.MathSciNetView ArticleMATHGoogle Scholar
  45. Veroy K, Patera AT. Certified real-time solution of the parametrized steady incompressible navier-stokes equations: rigorous reduced-basis a posteriori error bounds. Int J Numer Methods Fluids. 2005;47(8–9):773–88.MathSciNetView ArticleMATHGoogle Scholar
  46. Balagangadhar D, Dorai G, Tortorelli D, of Illinois at Urbana-Champaign U. A displacement-based reference frame formulation for steady-state thermo-elasto-plastic material processes. Int J Solids Struct. 1999;36(16):2397–416.View ArticleMATHGoogle Scholar
  47. Rajadhyaksha SM, Michaleris P. Optimization of thermal processes using an eulerian formulation and application in laser surface hardening. Int J Numer Methods Eng. 2000;47(11):1807–23.View ArticleMATHGoogle Scholar
  48. Canales D, Leygue A, Chinesta F, González D, Cueto E, Feulvarch E, Bergheau JM, Huerta A. Vademecum-based gfem (v-gfem): optimal enrichment for transient problems. Int J Numer Methods Eng. 2016;108:971–89.MathSciNetView ArticleGoogle Scholar
  49. Bergheau J, Pont D, Leblond J. Three-dimensional simulation of a laser surface treatment through steady state computation in the heat source’s comoving frame. In: Mechanical effects of welding, Springer; 1992, p. 85–92.Google Scholar
  50. Gu M, Goldak J, Knight A, Bibby M. Modelling the evolution of microstructure in the heat-affected zone of steady state welds. Can Metall Q. 1993;32(4):351–61.View ArticleGoogle Scholar
  51. Eckart C, Young G. The approximation of one matrix by another of lower rank. Psychometrika. 1936;1(3):211–8.View ArticleMATHGoogle Scholar
  52. Absil PA, Mahony R, Sepulchre R. Riemannian geometry of grassmann manifolds with a view on algorithmic computation. Acta Applicandae Mathematica. 2004;80(2):199–220.MathSciNetView ArticleMATHGoogle Scholar
  53. Edelman A, Arias TA, Smith ST. The geometry of algorithms with orthogonality constraints. SIAM J Matrix Anal Appl. 1998;20(2):303–53.MathSciNetView ArticleMATHGoogle Scholar
  54. Boothby WM. An introduction to differentiable manifolds and Riemannian geometry. Houston: Gulf Professional Publishing; 2003.MATHGoogle Scholar
  55. Amsallem D. Interpolation on manifolds of cfd-based fluid and finite element-based structural reduced-order models for on-line aeroelastic predictions. Ph.D. thesis, Stanford University. 2010.Google Scholar
  56. Absil PA, Mahony R, Sepulchre R. Optimization algorithms on matrix manifolds. New Jersey: Princeton University Press; 2009.MATHGoogle Scholar
  57. Begelfor E, Werman M. Affine invariance revisited. In: null, IEEE; 2006. p. 2087–94.Google Scholar
  58. De Boor C, Ron A. Computational aspects of polynomial interpolation in several variables. Math Comput. 1992;58(198):705–27.MathSciNetView ArticleMATHGoogle Scholar
  59. Späth H. Two dimensional spline interpolation algorithms. Natick: AK Peters, Ltd.; 1995.MATHGoogle Scholar

Copyright

© The Author(s) 2018
